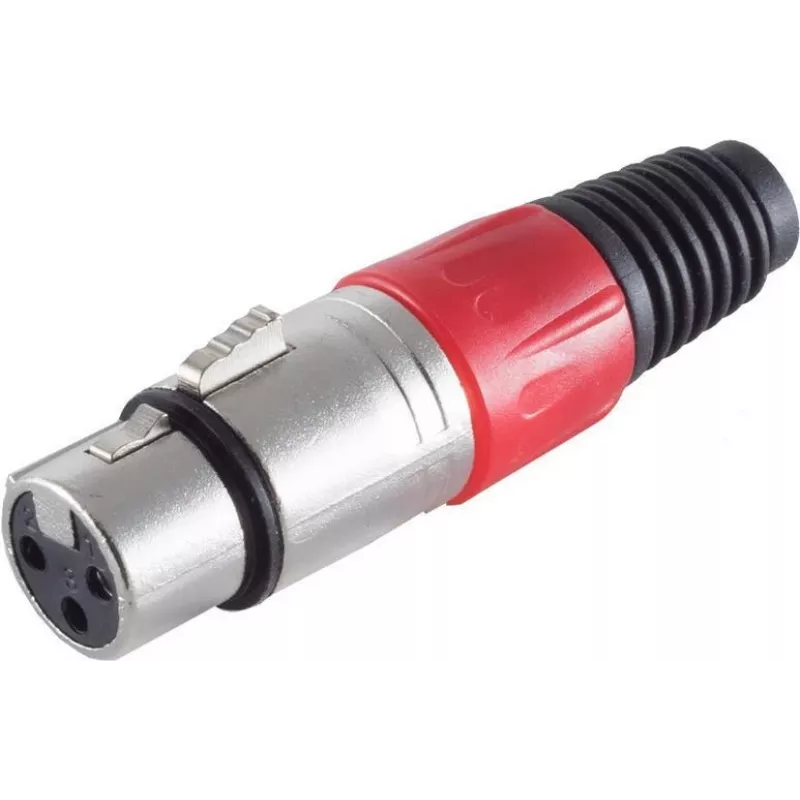

XLR konektor ShiverPeaks BS55022-R červený, 3-polový mikrofónový/audio konektor

ShiverPeaks BS55022-R is a red 3-pin XLR connector engineered for microphone and balanced audio line connections. The connector features standard three-pin XLR contacts, a secure locking mechanism and a colour-coded housing to simplify cable identification in multi-channel setups. It is compatible with common professional audio equipment and intended for use where balanced analog signal transmission and reliable mechanical connection are required.

Advantages

The red 3-pin XLR design ensures stable signal transmission for low-noise microphone and line-level audio. A robust locking latch provides secure mating and prevents accidental disconnection during live performance or transport. The colour-coded housing enables quick visual identification of channels or signal paths. The connector’s mechanical construction supports repeated insertions and removals while maintaining contact integrity.

Suitable for

• Stage and live sound installations
• Recording studio microphone and line connections
• Broadcast facilities and OB vans
• Portable PA systems and rental equipment

Key specifications

• Connector type: 3-pin XLR (female/male depending on cable assembly)
• Contact arrangement: standard 3-pin balanced audio
• Housing colour: red for easy identification
• Locking mechanism: secure latch to prevent accidental release
• Intended signal: balanced analog microphone and line-level audio
• Durability: designed for repeated mating cycles in professional use

How to use

Install the connector by soldering or crimping the cable conductors to the corresponding XLR pins according to the device wiring standard (pin 1 = shield/ground, pin 2 = hot/positive, pin 3 = cold/negative). Ensure the housing and strain relief are assembled so the cable is supported and contacts are not stressed. When connecting, align the connector with the mating socket and push until the latch engages; press the latch release to unlock before disconnecting. Verify polarity and continuity with a multimeter or cable tester before putting the line into service.

Recommendations

For optimal long-term performance, use the connector with properly shielded, balanced microphone or audio cables and avoid sharp bends at the cable exit. Regularly inspect contacts and the locking latch for wear or debris and clean with appropriate contact cleaner if necessary.
