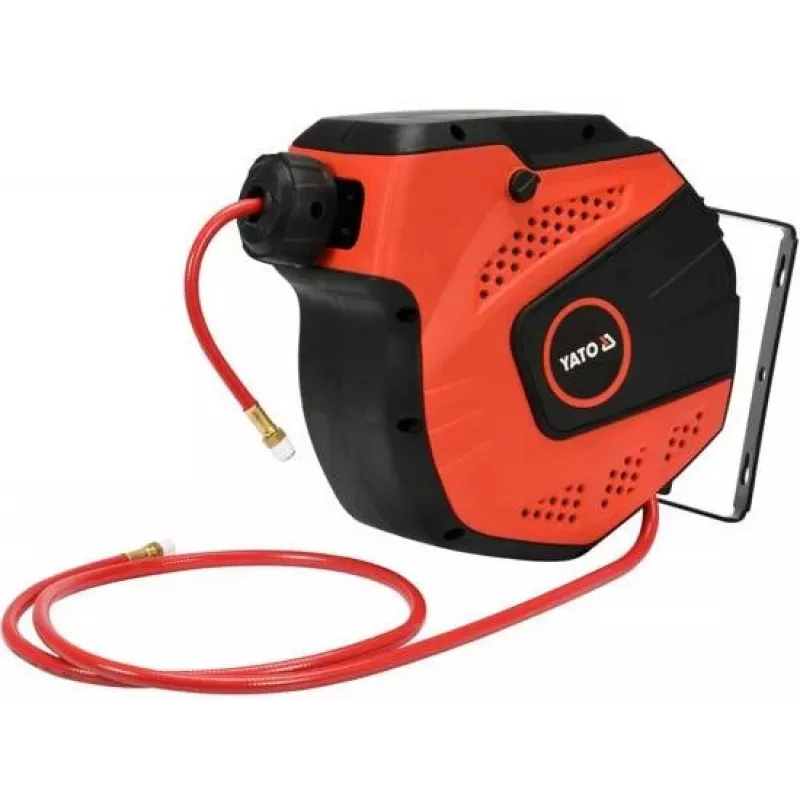

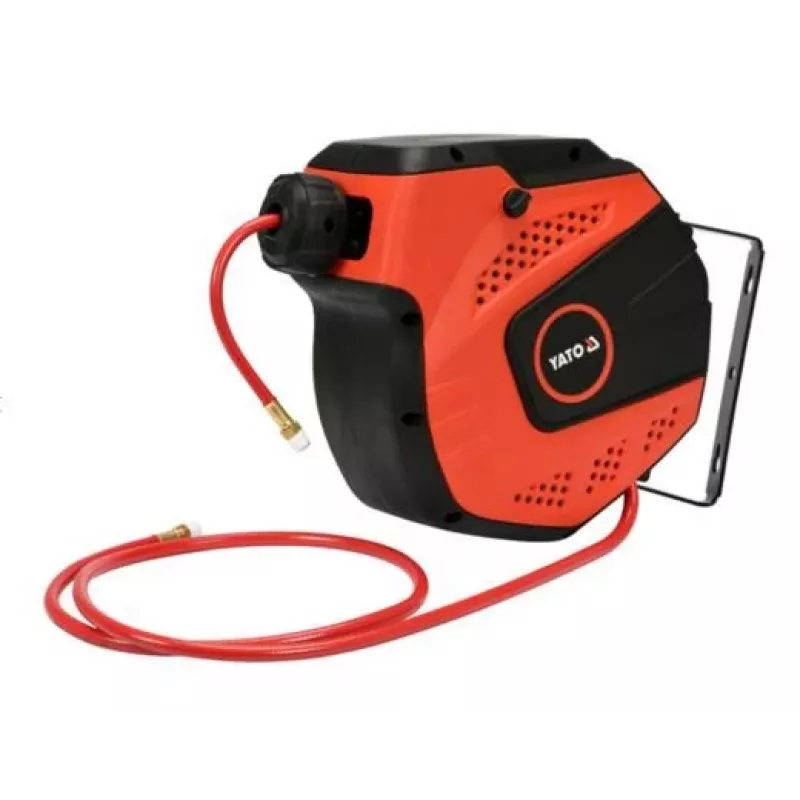

YATO vzduchová hadica na navijaku 14 m x 6,5 mm

In a busy workshop, a mechanic reaches for the YATO pneumatic hose reel to power an impact wrench. The 14-meter hose extends smoothly from the wall-mounted reel, delivering compressed air without kinks or tangles. When the job is done, the ratchet system locks the hose at the desired length, and a gentle tug retracts it automatically, keeping the workspace tidy and safe.

Key specifications

• Hose length: 14 m
• Hose inner diameter: 6.5 mm
• Hose outer diameter: 10 mm
• Hose material: PVC
• Max working pressure: 1.5 MPa (15 bar / 217 PSI)
• Burst pressure: 4.5 MPa (45 bar / 652 PSI)
• Inlet connection: 1/4"
• Outlet connection: 1/4"
• Reel type: automatic retractable
• Mounting: wall or ceiling
• Housing material: polypropylene (PP)
• Operating temperature: -5°C to +45°C
• Locking mechanism: ratchet system
• Lead-in hose length: 1 m
• Hose colour: yellow

Why choose it

The automatic retraction system saves time and prevents hose damage, while the ratchet lock allows you to work at any extended length. The PVC hose remains flexible even in cold conditions down to -5°C, and the polypropylene housing resists impact and corrosion. With a 15 bar working pressure, it handles most pneumatic tools in automotive, woodworking, and industrial settings.

Ideal use cases

• Automotive repair shops for air tools
• Woodworking shops for nailers and sanders
• Industrial assembly lines
• Home garages with air compressors

Good to know

The reel comes with a 1-meter lead-in hose for easy connection to your air supply. Mount it on a wall or ceiling to keep the hose off the floor and reduce tripping hazards. The yellow hose is highly visible, improving safety in busy environments.
