Záložný zdroj Armac UPS OFFICE Line-Interactive 1500

Armac 1500F Office Series provides a compact line-interactive UPS solution for office and home use, protecting equipment such as PCs, laptops, routers and switches. The unit delivers 1.5 kVA output power through three Type F AC outlets and produces a sine waveform for stable power supply. A built-in LCD shows input/output voltage, battery charge and load status; the UPS includes a 9 Ah battery that offers up to approximately 3 minutes of runtime at full load. Physical dimensions are 120 mm (W) × 350 mm (D) × 188 mm (H), and the unit is finished in black.

Advantages

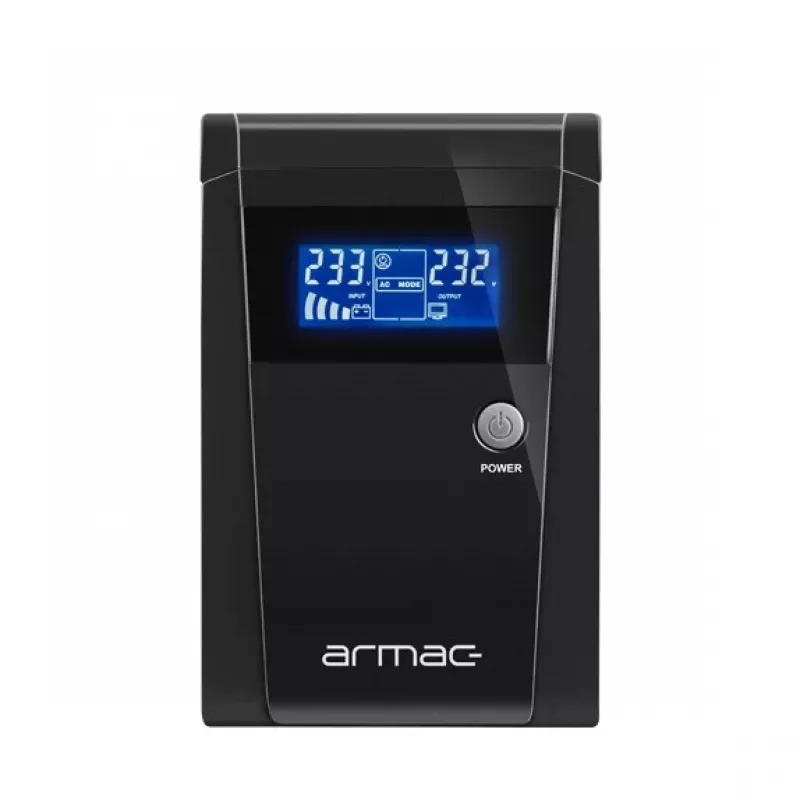

The Office series features an LCD control panel for real-time monitoring of operating parameters, a CPU-based control system for automatic voltage regulation and protection against surges, undervoltage and overloads, and automatic restart and battery charging. Additional ports include two RJ-45 surge-protected connectors for telephone/ICT lines and a USB port for device management. A quiet operation mode mutes non-critical alarms during battery operation to reduce noise.

Suitable for

• Desktop PCs and workstations
• Laptops and small office servers
• Network devices: routers, switches and modems
• Home office equipment and peripherals

Key specifications

• Model: Armac UPS OFFICE Line-Interactive 1500 (O/1500F/LCD)
• Output power: 1.5 kVA
• AC outlets: 3 × Type F
• Battery capacity: 9 Ah (approx. up to 3 minutes at full load)
• Output waveform: sine
• Dimensions (W×D×H): 120 × 350 × 188 mm
• Weight: 11.2 kg
• Colour: Black

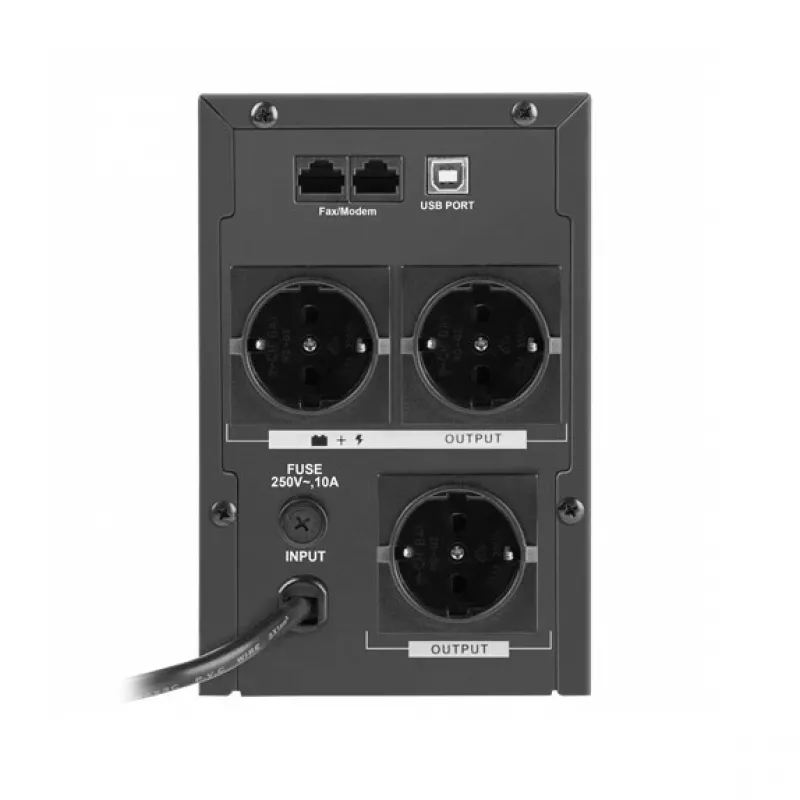

• Connectivity: USB port, 2 × RJ-45 surge protection
• Manufacturer code (MPN): O/1500F/LCD
• EAN: 5901969406658

How to use

Place the UPS on a flat, stable surface with adequate ventilation and connect essential equipment to the three Type F outlets. Plug the UPS into a mains outlet to charge the battery before first use. Use the LCD panel to monitor input and output voltages, battery charge and load level. Connect the USB port to a computer and install the PowerManager software if remote monitoring, automated shutdown or parameter adjustment is required. If protecting telephone or network lines, route the lines through the RJ-45 surge-protected ports.

Recommendations

For reliable operation, keep the UPS in a cool, dry environment, avoid covering ventilation openings and perform periodic battery tests. Charge the battery fully before prolonged use on battery power and use the PowerManager software to configure automatic shutdown thresholds and notifications.
