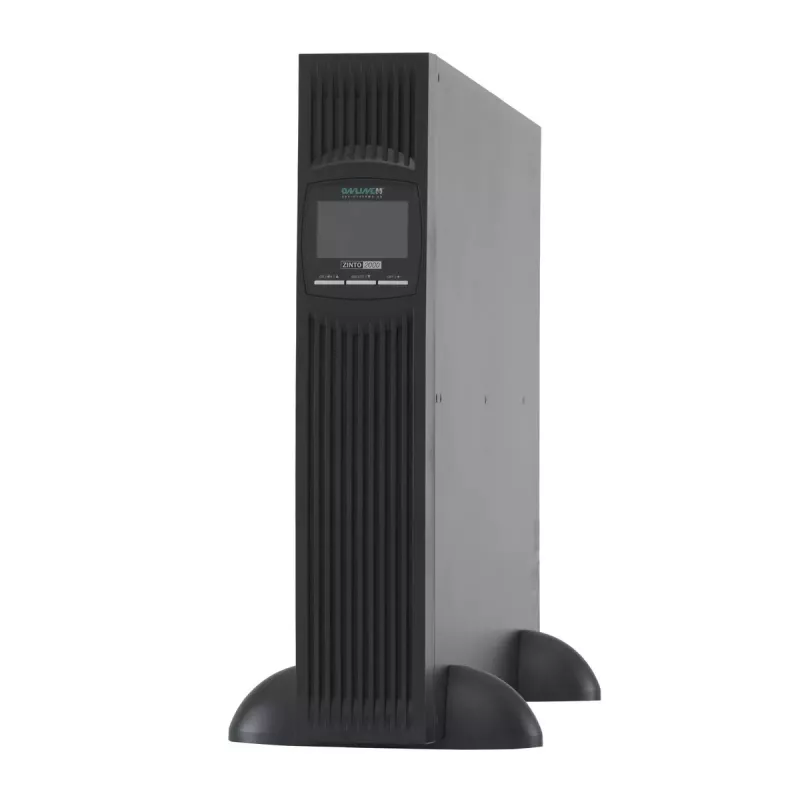

Záložný zdroj UPS ONLINE USV-Systeme ZINTO 2000

The ONLINE USV-Systeme ZINTO 2000 is a rack/tower Line-Interactive UPS with a rated output of 2 kVA (1800 W) and eight C13 AC outlets. In a compact 2U form factor it combines battery backup (9 Ah) with buck-and-boost voltage regulation and noise-optimized operation to protect servers, network equipment and sensitive devices from power failures and voltage fluctuations. The unit is designed for professional IT and medical environments where uninterrupted power and data integrity are required.

Advantages

ZINTO 2000 uses Dynamic Power Technology (DPT) to deliver more usable active power to the connected load than conventional UPS models, allowing up to 38% more effective watts for the same nominal rating. The device operates without a fan under normal conditions (models up to 3000 VA), reducing operational noise. Integrated buck-and-boost functionality corrects voltage dips and spikes without discharging the battery, which extends battery life and reduces running costs. The UPS is available in a 2U rack/tower format and includes USB connectivity for basic communications.

Suitable for

• Small and medium server rooms and network cabinets
• Workstations and point-of-sale systems requiring short-term battery backup
• Medical diagnostic equipment where uninterrupted analysis is critical
• Office IT infrastructure and critical network devices

Key specifications

• Output power: 1800 W
• Output power capacity: 2 kVA
• Battery capacity: 9 Ah, typical backup ~6 minutes at full load

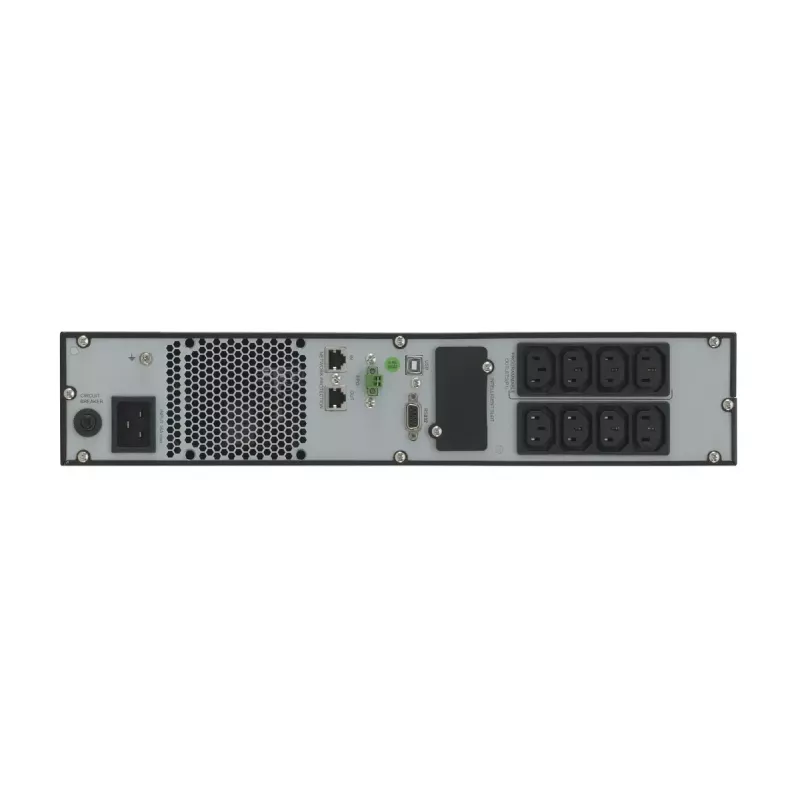

• AC outlets: 8 × C13
• USB ports: 1 × USB 2.0

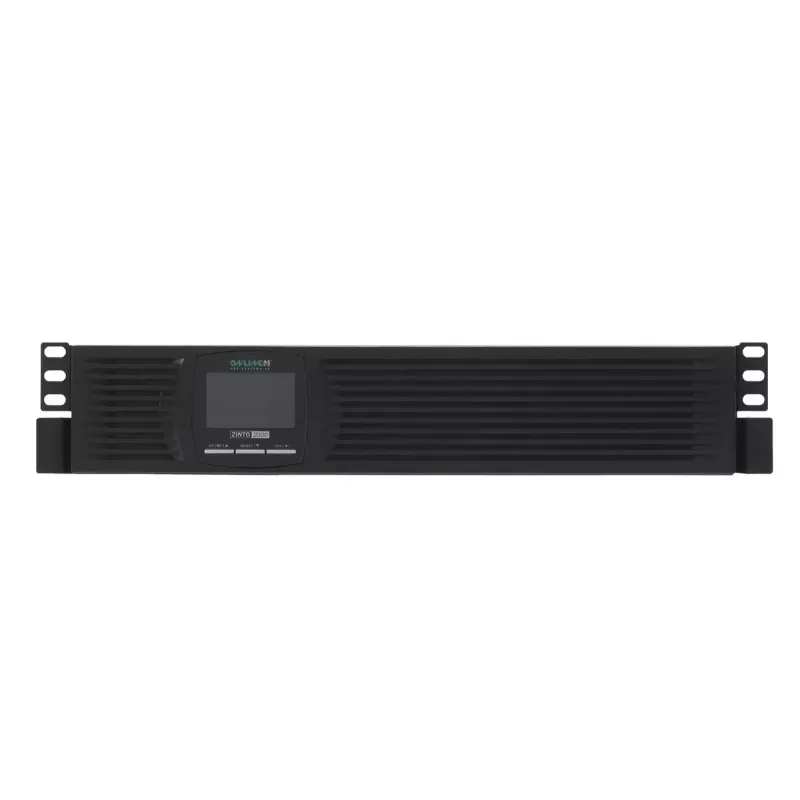

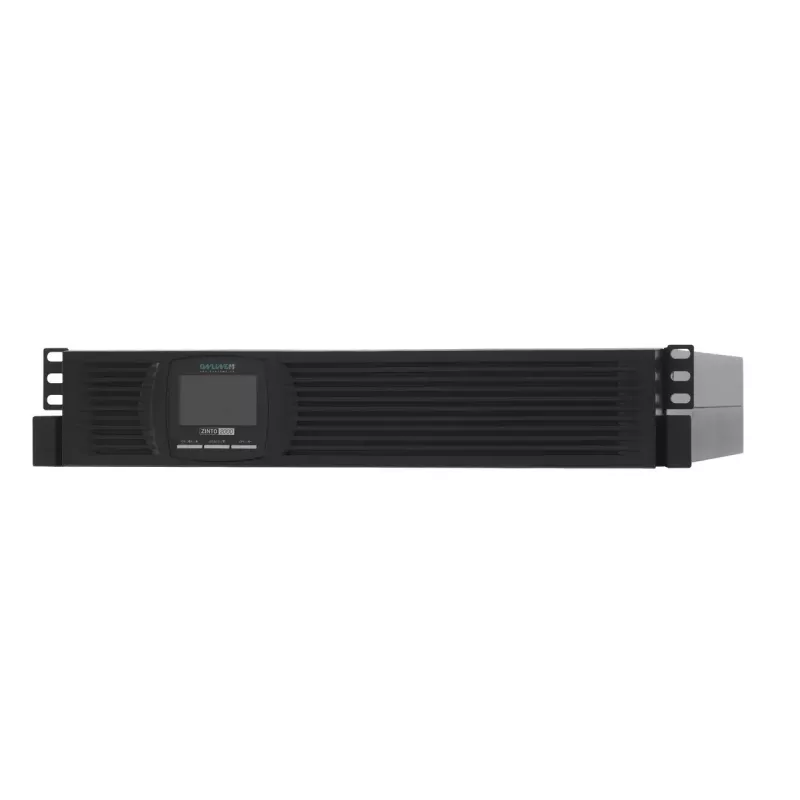

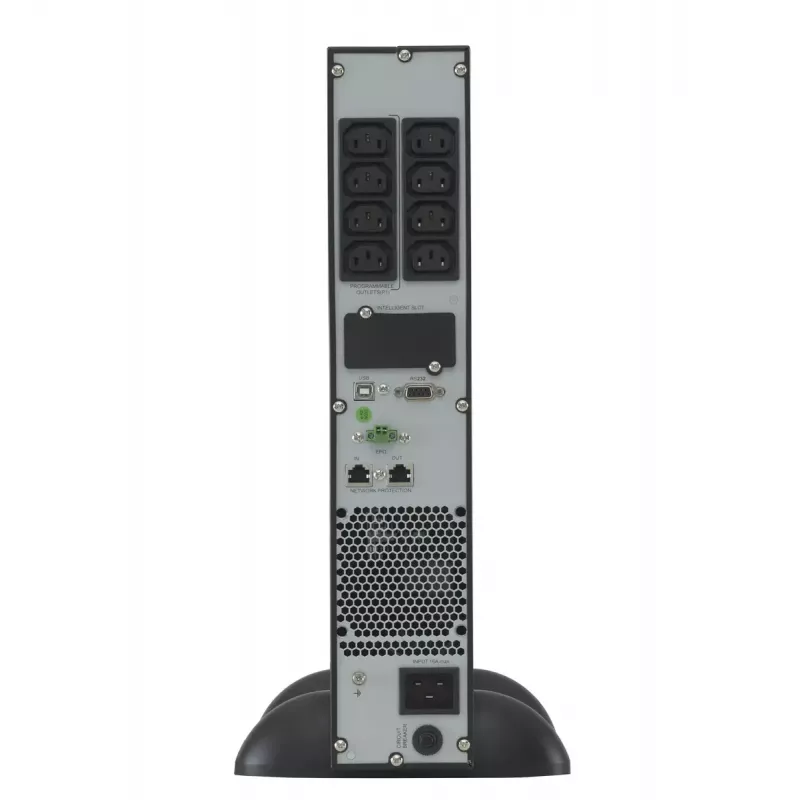

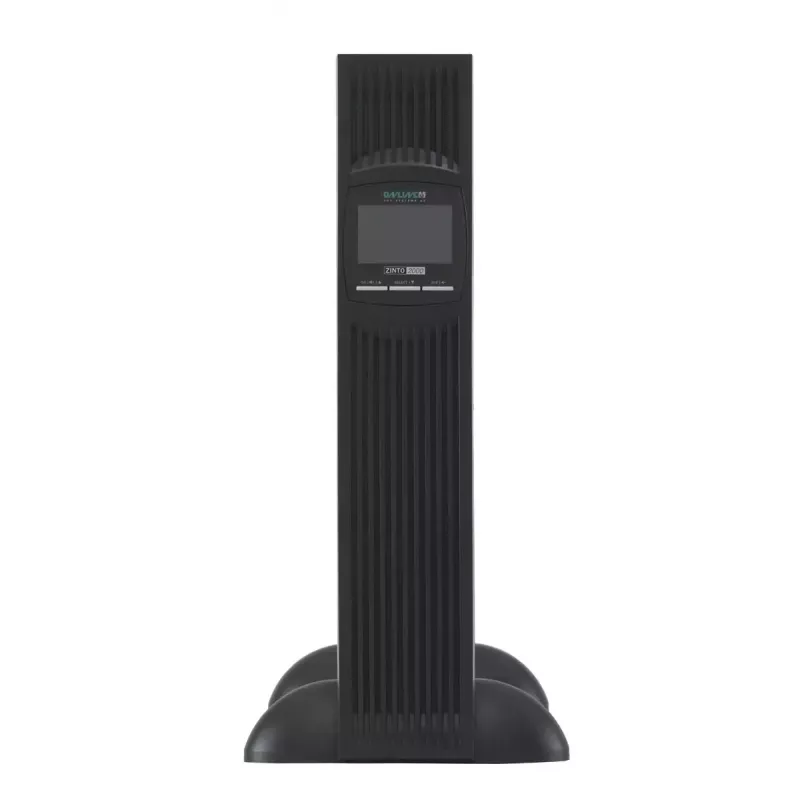

• Form factor: 2U, rackmount or tower
• Weight: 21.5 kg
• Colour: Black
• Standards: EN62040-2

How to use

Install the ZINTO 2000 in a 19" rack using the supplied mounting brackets or place it as a tower on a stable surface. Connect critical equipment to the eight C13 outlets. Use the USB port to connect to a monitoring host for basic status and shutdown management if supported. Under normal operation the UPS provides buck-and-boost voltage regulation and switches to battery power automatically during mains outages. Periodically inspect the battery health and perform recommended maintenance according to the manufacturer manual.

Recommendations

For reliable runtime planning, measure the actual load of connected devices and compare against the UPS output power. Use ZINTO 2000 where short runtime and high effective wattage are required; for longer autonomy consider a higher-capacity model or external battery packs. Ensure ventilation and ambient temperature follow the manufacturer guidelines to maximise battery life.
