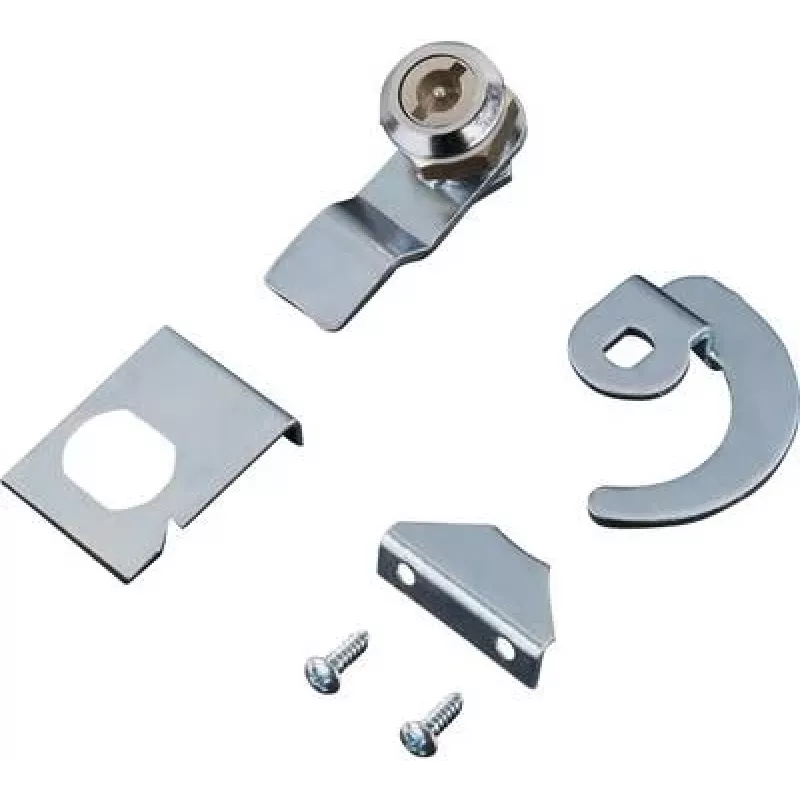

Zámok Rittal FT 2749.100, kovový povrch, 156 g, jednodielny

The Rittal cam lock FT 2749.100 is a compact mechanical locking device intended for secure access control of electrical enclosures, control cabinets and sheet‑metal doors. It features a metallic finish and single‑piece construction, designed to be retrofitted to the operating area or enclosure wall of operating panels. With a total mass of approximately 156 g, this cam lock provides a space‑efficient solution where a simple cam rotation secures or releases the door or access panel.

Advantages

The cam lock offers a robust metallic finish that resists everyday wear and provides a uniform appearance on metal enclosures. Its single‑piece design reduces the number of components required for installation and maintenance. The compact size and moderate weight make it suitable for retrofitting without significant modification to existing panels. Its cam locking mechanism delivers a reliable, mechanical engagement for straightforward access control.

Suitable for

Key specifications

How to use

Install the cam lock into the prepared aperture in the enclosure or panel wall, aligning the cam with the strike or latch on the frame. Secure the body according to panel thickness and fastening provisions, then fit the cam to the drive shaft and set the rotation angle to engage the door securely. Operate the lock by rotating the key or actuator to move the cam between locked and unlocked positions. Verify that the cam catches the frame or keeper consistently and that the door closes flush without binding.

Recommendations

For reliable performance, select a cam length and rotation angle compatible with the enclosure frame and keeper, and ensure correct panel cut‑out dimensions before installation. Periodic inspection and light lubrication of the cam pivot can extend service life. Use the lock within its intended mechanical application and environment; avoid exposure to corrosive substances without additional protective measures.
