Zariadenie na zber údajov Zebra PS30 PLUS 2D imager dotyková obrazovka 4,7 palca

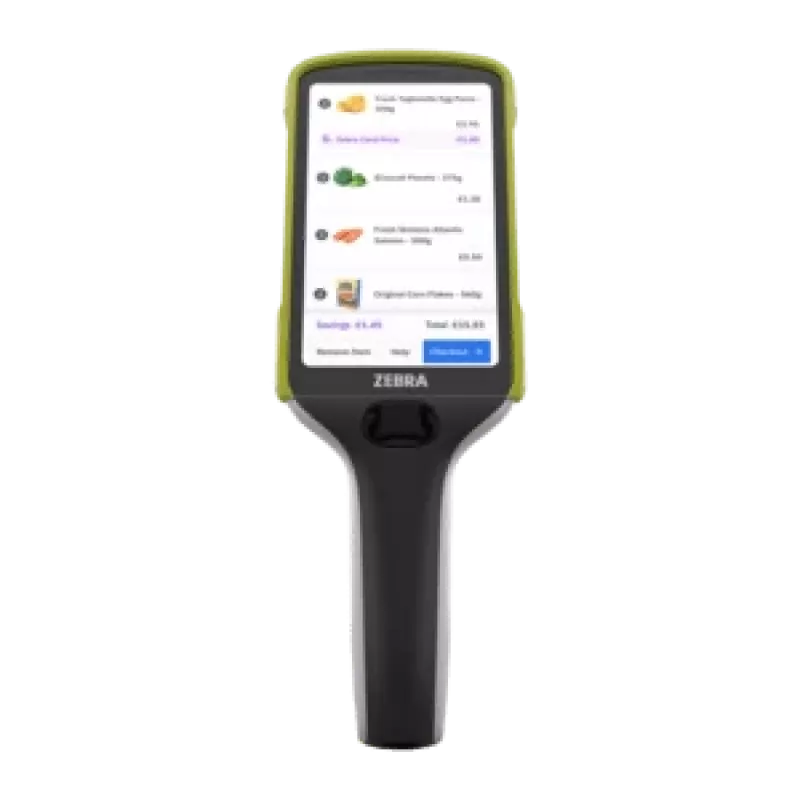

Zebra PS30 PLUS is a compact portable data collection device with an integrated 2D imager (SE4710, red illumination) and a 4.7-inch capacitive multi-touch display (1280x720, 540 cd/m²). It runs Android on a Qualcomm octa-core 2.4 GHz processor with 4 GB RAM and 64 GB flash storage. Connectivity includes USB, Bluetooth Low Energy, Wi‑Fi 6E, audio, and NFC, making the device suitable for retail, inventory and field-service workflows that require handheld scanning and data entry.

Advantages

The PS30 PLUS combines a fast 2D imager for reliable barcode capture with a high-resolution touchscreen for clear data presentation and touch input. Its mobile connectivity options (Wi‑Fi 6E, BLE, USB) and NFC support enable flexible integration into existing systems. The device’s Android OS and onboard memory support common data collection applications and local caching for offline work.

Suitable for

• Retail checkout and price verification
• Inventory counting and shelf replenishment
• Field service data capture and asset tracking
• Receiving and shipping in warehouses and backroom operations

Key specifications

• Imager: 2D imager (SE4710) with red illumination
• Display: 11.9 cm (4.7") capacitive multi-touch, 1280 x 720 pixels, 540 cd/m² brightness
• Processor: Qualcomm octa-core, 2.4 GHz
• Memory: 4 GB RAM
• Storage: 64 GB flash
• Operating system: Android
• Wireless: Wi‑Fi 6E, Bluetooth Low Energy
• Other connectivity: USB, NFC, audio

How to use

Hold the device by hand and use the capacitive touchscreen to open the data collection application. Aim the device at barcodes and trigger the 2D imager to capture codes; scanned data will appear on the display for verification. Use Wi‑Fi, BLE, or USB to synchronize collected data with backend systems; NFC can be used for quick device pairing or tag reads. Follow your organisation’s workflow for scanning, editing and submitting records.

Recommendations

For best scanning performance, ensure the imaged barcode is well lit and positioned within the camera’s field of view. Keep device software and security patches up to date, and use a protective case if the device is used in harsh environments.
