Záslepka pozície pre disk DeLOCK 47232 čierny

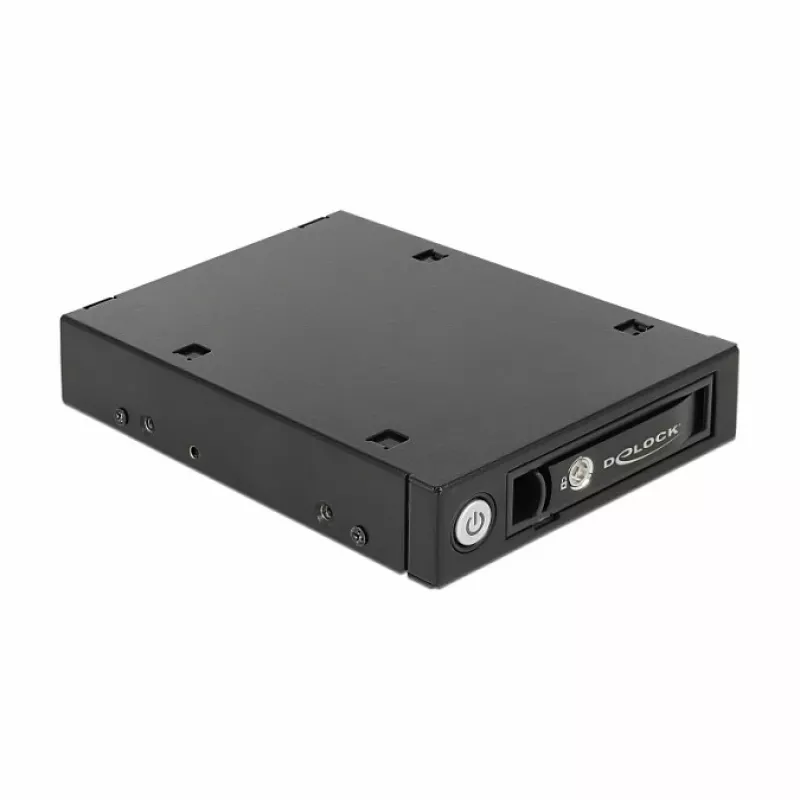

This solid metal mobile rack by Delock fits into a free 3.5" bay of a PC and accepts 15 mm 2.5" storage drives. It uses a U.2 SFF-8639 interface that is also compatible with SATA and SAS connections. A 2.5" U.2 SSD can be mounted in the tray and slid into the rack; alternatively a SATA or SAS HDD/SSD can be installed. The SFF-8639 port on the rear supports either a SAS 29-pin or SATA cable, so the correct cable must be connected depending on the installed drive. The unit supports hot swapping to allow drive exchange during operation and the tray is protected by a key lock to prevent unauthorised access.

Advantages

Constructed from durable metal and finished in black, the DeLOCK 47232 provides a robust and compact solution for adding or exchanging 2.5" drives in a desktop system. The U.2 SFF-8639 interface offers flexible compatibility with U.2, SATA and SAS drives, and the hot-swap capability simplifies maintenance and replacement without powering down the system. The included tray key lock adds a layer of physical security for installed drives.

Suitable for

• Upgrading desktop storage with 15 mm 2.5" SSDs (U.2)
• Installing SATA or SAS 2.5" HDDs or SSDs in a 3.5" bay
• Systems requiring hot-swap drive replacement
• Environments needing basic physical protection for removable drives

Key specifications

• Model: DeLOCK 47232
• Compatible drive height: 15 mm (2.5")

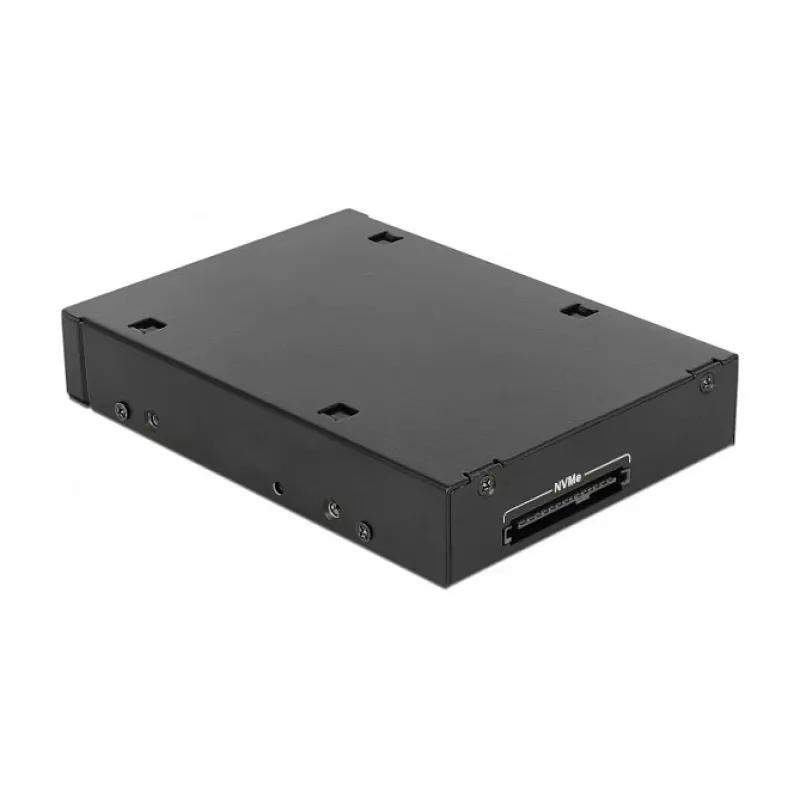

• Interface: U.2 (SFF-8639), supports SATA and SAS cabling
• Form factor mount: fits into a 3.5" drive bay
• Material: Metal
• Colour: Black

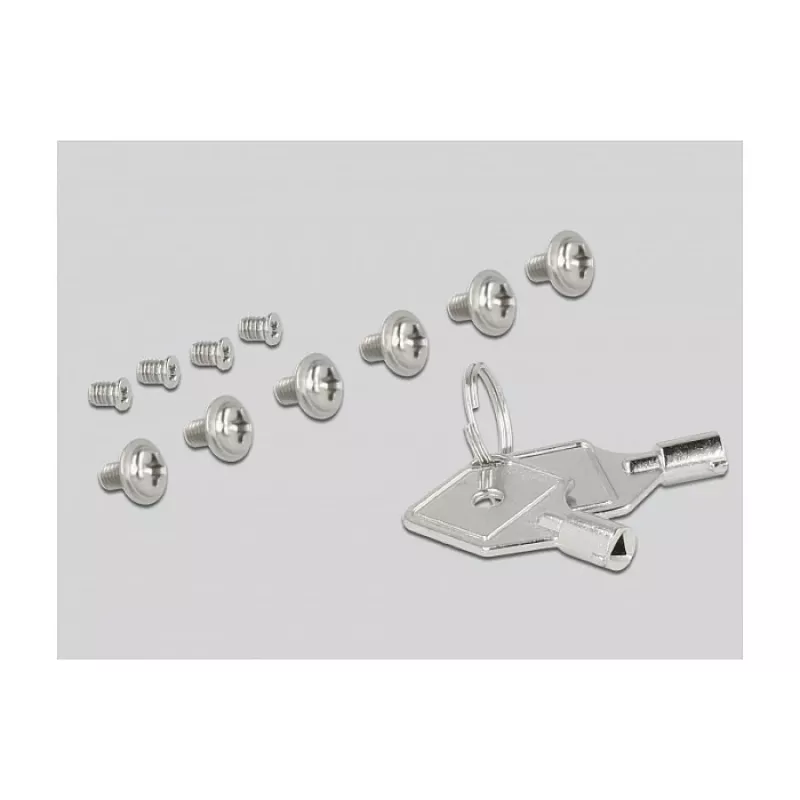

• Security: Tray with key lock
• Hot-swap support: Yes
• MPN: 47232
• EAN: 4043619472321

How to use

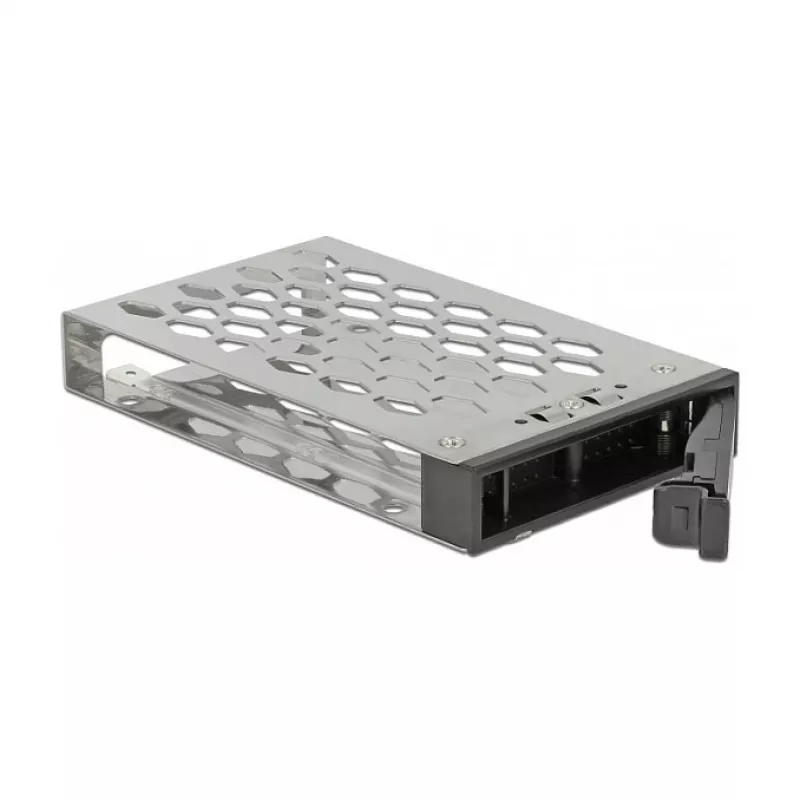

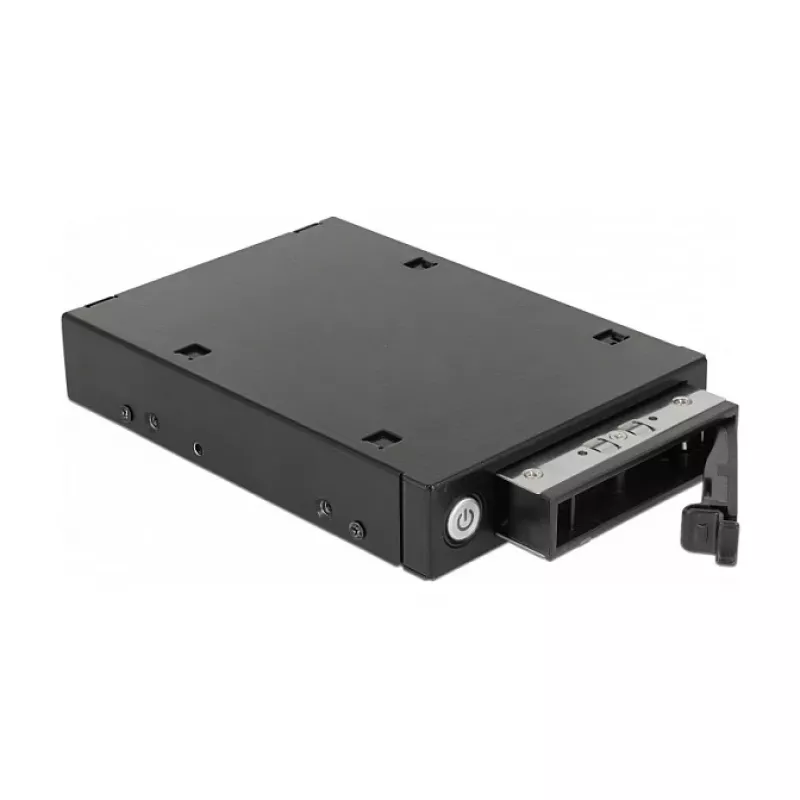

Mount a compatible 15 mm 2.5" drive into the supplied tray and secure it according to the tray's mounting points. Slide the tray into the rack installed in a free 3.5" bay. At the rear of the rack connect the appropriate data cable: use a U.2/SFF-8639 cable that provides the correct pinout, or connect a SATA or SAS cable as required by the drive. Power on the system and, if supported by your operating system, use the hot-swap function to exchange drives during operation. Lock the tray with the supplied key to prevent unauthorised removal when required.

Recommendations

Verify drive compatibility (15 mm 2.5" U.2, SATA or SAS) before installation, and ensure your motherboard or HBA supports the chosen interface. Use proper ESD precautions during handling and regularly back up important data, as the key lock protects physical access but does not encrypt stored data.
