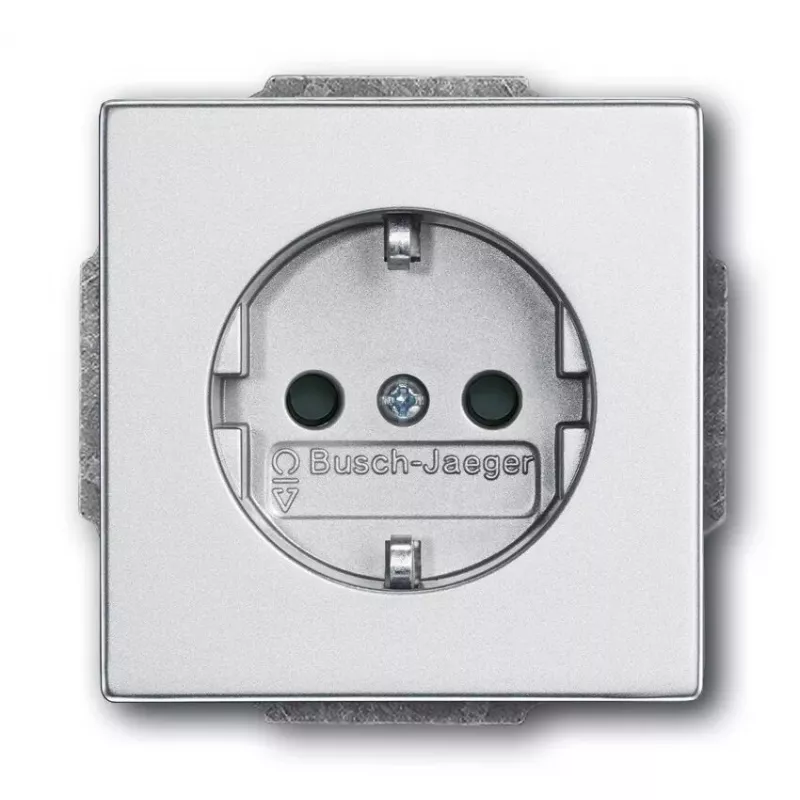

Zásuvka Busch-Jaeger 2011-0-3798 CEE 7/3 2P+E 16 A 250 V strieborná, 63×41 mm

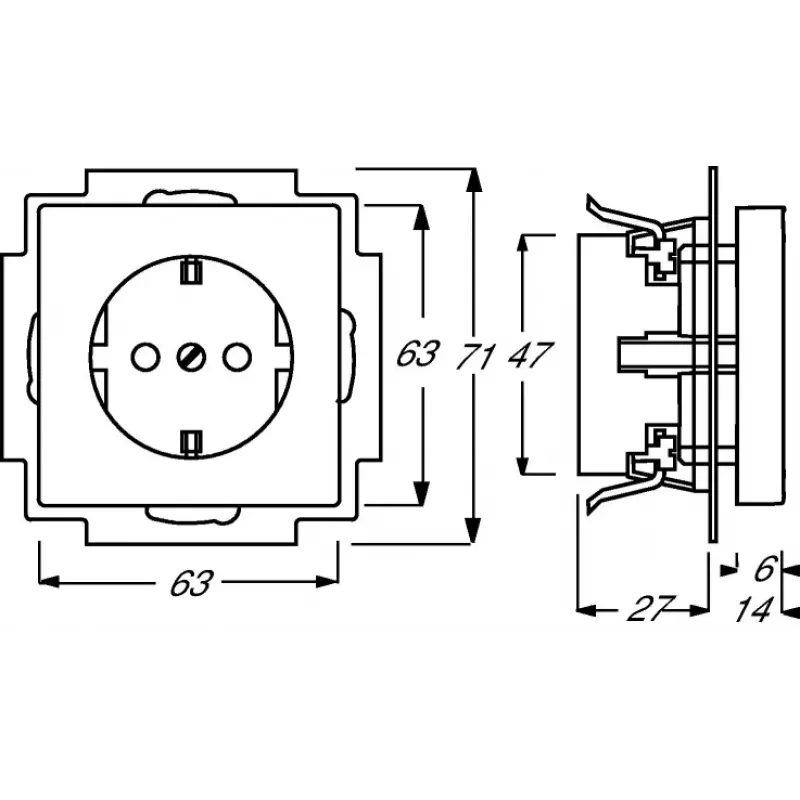

Busch-Jaeger 2011-0-3798 is a CEE 7/3 socket outlet with 2 poles plus earth (2P+E), rated at 16 A and 250 V. The unit has a silver finish and compact dimensions of 63×41 mm with a visible depth of 6 mm, designed for installation in standard European wiring systems. It provides a grounded connection for mains-powered devices and is intended for fixed mounting in residential and light-commercial environments where a reliable earth connection and standard mains rating are required.

Advantages

The socket outlet combines a standardized CEE 7/3 contact arrangement with a rated current of 16 A and rated voltage of 250 V, ensuring compatibility with most household and office plugs across Europe. The silver finish offers a neutral aesthetic that integrates with various interior fittings. Its compact footprint (63×41 mm) and shallow visible depth simplify installation in common flush-mount boxes and reduce protrusion from the mounting surface.

Suitable for

Key specifications

How to use

Before installation, disconnect mains power at the consumer unit. Mount the socket into a compatible flush box and connect the line, neutral and protective earth conductors to the appropriate terminals according to local wiring regulations and the device's terminal markings. Secure the device to the box with the supplied screws and attach the cover plate. After wiring, restore power and verify correct operation with a suitable testing device to confirm correct polarity and earth continuity. Installation should be performed by a qualified electrician in accordance with applicable safety standards.

Recommendations

Use this Busch-Jaeger CEE 7/3 socket outlet for fixed installations where a grounded 16 A, 250 V supply is required. Avoid using the outlet in environments with excessive moisture or corrosive atmospheres unless additional protective measures are taken. For safe operation, pair the outlet with compatible plugs and ensure circuit protection (fuse or breaker) matches the rated current.
