Zásuvka Busch-Jaeger 2601/6/20 EW-54 CEE 7/3 2P+E 16A 250V IP44 biela

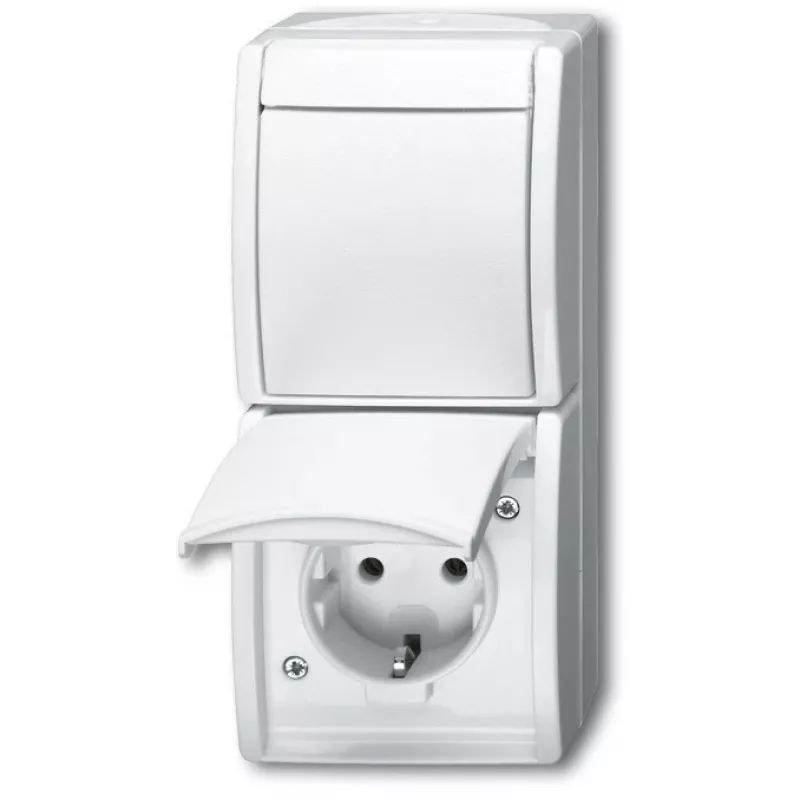

Combination SCHUKO® socket outlet with integrated rocker switch for vertical installation. The 1-gang, 2-way device provides a CEE 7/3 (SCHUKO®) 2-pole plus earth (2P+E) connection with a rated voltage of 250 V~ and rated current 16 A (10 AX). The device is IP44 rated for protection against splashing water, making it suitable for damp indoor or sheltered outdoor locations. The white finish and compact dimensions (166×74×55 mm) suit standard mounting situations. The unit is CE certified and accepts loop connection terminals compliant with VDE 0620-1.

Advantages

The combination of SCHUKO® socket and rocker switch saves space and simplifies wiring by combining outlet and switch in a single vertical module. IP44 protection provides increased safety in humid environments. Terminals allow loop-through wiring per VDE 0620-1, and the device supports interchangeable modules such as switches, push-switches, indicator lamps or locking SCHUKO® inserts for flexible application. A label holder is included and the switch can be illuminated using the illumination insert 2152 NLI-53 (labeling tools available at the manufacturer's website).

Suitable for

Key specifications

How to use

Mount the combination outlet vertically in a suitable flush-mount box and connect supply and load conductors to the designated terminals per local wiring regulations. Use the loop-through capable terminals if continuing the circuit to additional devices. If illumination is required for the switch, install illumination insert 2152 NLI-53 and appropriate label in the included label holder. Ensure that the connected equipment does not exceed the rated current and that the installation is completed by a qualified electrician.

Recommendations

Use the device in dry or sheltered locations when possible and ensure IP44 protection is maintained by correct sealing of the installation. For illuminated switch function and custom labeling, use the manufacturer’s recommended insert (2152 NLI-53) and labeling software available at www.BUSCH-JAEGER-labelingtool.com. Observe local electrical codes and safety standards during installation.
