Zásuvka JUNG A 590 A WW — biele duroplastové puzdro, vstupný priemer 1,3 cm

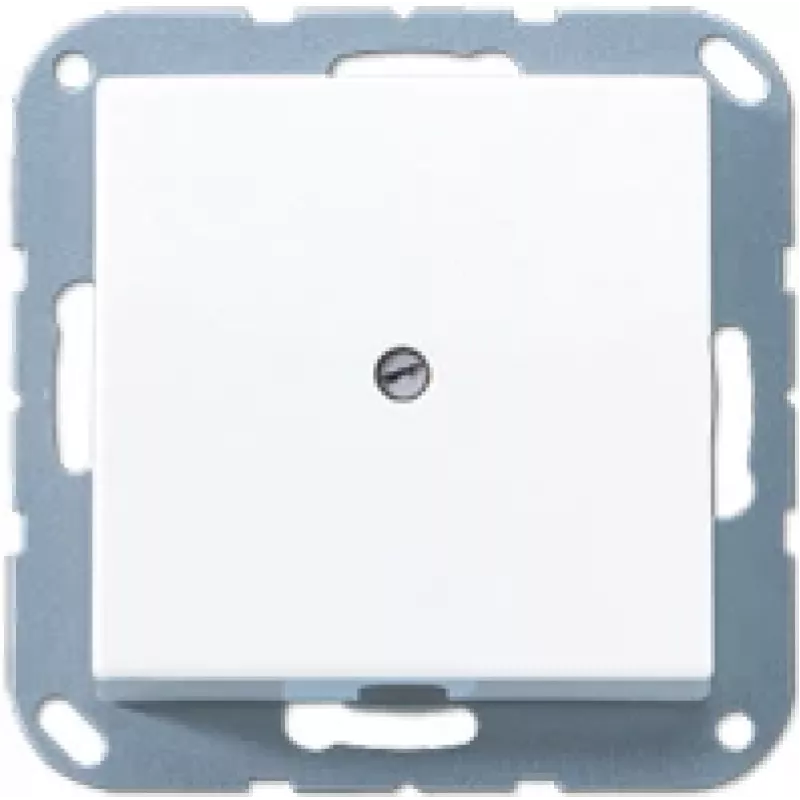

JUNG A 590 A WW is a white socket outlet with a duroplast housing and an input diameter of 1.3 cm designed for electrical installations in residential and light commercial environments. The unit features a compact form factor and a durable thermoset surface that resists wear and maintains appearance over time. It is intended for installation in standard wall boxes and is supplied with a supporting frame for screw fixing only, providing a secure mechanical connection to the mounting surface.

Advantages

The duroplast housing offers mechanical stability and a hard, scratch-resistant finish suited to frequent use. Its compact dimensions allow installation in common flush-mounted wall boxes while retaining access to internal wiring. The product accepts cables from 3 x 1.5 mm2 up to 5 x 2.5 mm2 with an outer diameter range of 7 to 13 mm, which covers typical household and light commercial conductor sizes. The supplied support frame permits reliable screw mounting and correct alignment of the outlet plate.

Suitable for

Key specifications

How to use

Switch off the relevant circuit breaker before beginning work. Prepare the wall box and pull the supply cable through the entry opening, ensuring the cable outer diameter matches the specified range. Strip conductors to the required length and connect them to the outlet terminals according to local wiring standards and polarity: line, neutral and protective earth as applicable. Position the outlet with the supporting frame into the wall box and secure it with screws. Fit the cover plate and restore power to check correct operation.

Recommendations

Use the product with conductors and protective devices sized according to local electrical codes. For any installation or modification of fixed wiring, consult a qualified electrician to ensure compliance with safety standards and local regulations.
