Zásuvka SAT + TV + Rádio Televes 524501

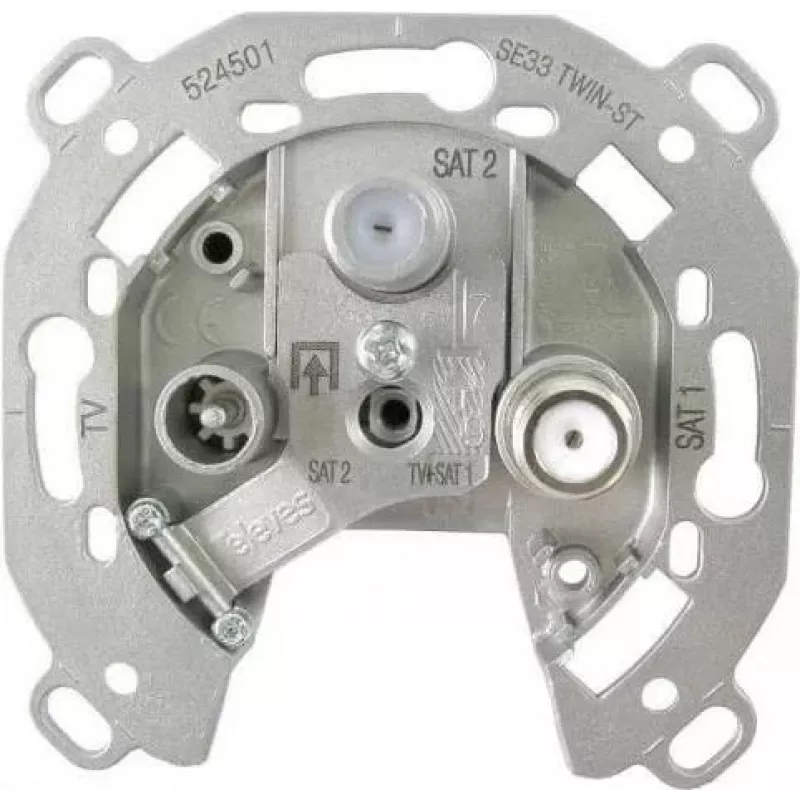

The Televes 524501 socket outlet provides connections for satellite, terrestrial TV and FM radio in a compact metallic housing. It features two satellite F connectors and one IEC male connector for radio/terrestrial TV; SAT1 (lower right) supplies the satellite signal for input 1 with filtering, SAT2 (top) carries the full-bandwidth satellite signal for input 2 (5–2400 MHz), and the IEC male connector (lower left) carries FM and terrestrial TV from input 1. The unit has a low attenuation of approximately 1 dB, dimensions of 70 × 36 × 67 mm and a lightweight metal finish for durability.

Advantages

The Televes 524501 offers a compact, metal-bodied solution for combined SAT, TV and radio outlets with low signal loss. It supports full-bandwidth satellite on one output while providing a filtered satellite output for a second tuner, and routes FM/terrestrial signals through the IEC connector. Small size and light weight simplify installation in standard outlet boxes.

Suitable for

• Home installations requiring combined satellite, terrestrial TV and FM radio outlets
• Setups with two satellite tuners where one needs full-bandwidth and the other filtered output
• Replacement or upgrade of wall outlets in apartments and small installations

Key specifications

• Model: Televes 524501
• Connectors: 2 × F (SAT1 filtered, SAT2 full bandwidth 5–2400 MHz), 1 × IEC male (FM/TV from input 1)
• Attenuation: ~1 dB
• Dimensions (W×D×H): 70 × 36 × 67 mm
• Input current: 0.5 A
• Weight (package): 100 g
• Finish: metallic
• Brand / MPN / EAN: Televes / 524501 / 8424450188606

How to use

Mount the outlet into a compatible wall box with the lower part of the chassis open as intended. Connect the incoming satellite feeds to the corresponding inputs as specified by the installation diagram: feed for input 1 for the filtered SAT1 output, and feed for input 2 for the full-band SAT2 output. Attach the IEC male connector to the FM/terrestrial TV cable originating from input 1. Ensure all F and IEC connections are tightened securely and power down any powered amplifiers during installation.
