Zásuvka Telegärtner J00020A0500 biela

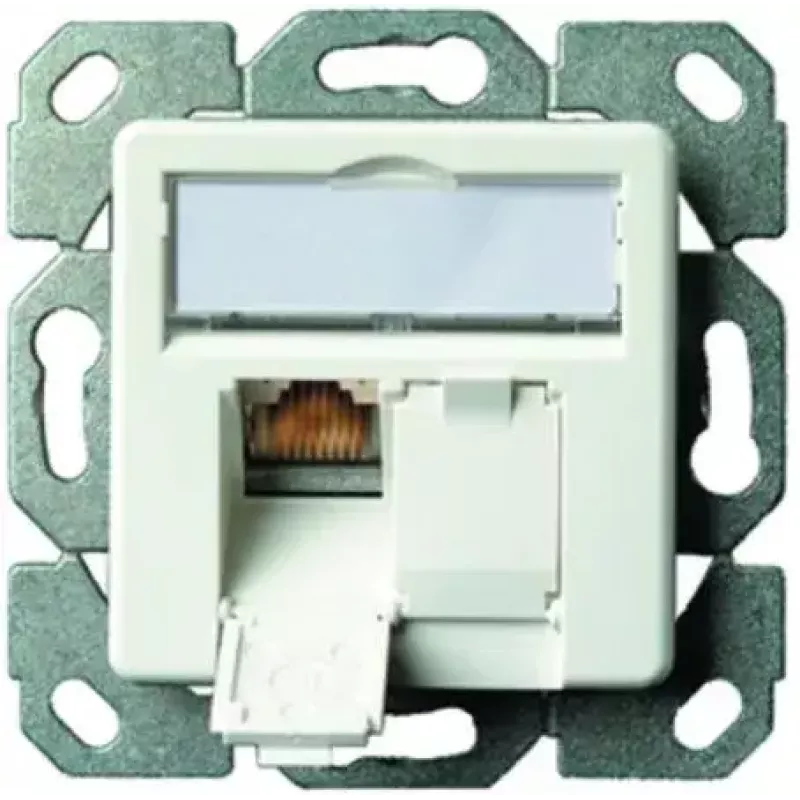

The Telegärtner J00020A0500 outlet box is a fully shielded connection enclosure designed for Cat.6A transmission according to ISO/IEC 11801 and EN 50173-1. With a white finish and compact installation depth, the outlet box supports secure 360° shielding contact and strain relief through separate captive screw clamps for the cable jacket and shielding. It is suitable for horizontal or vertical mounting in cable ducts and allows flexible cable inlet directions to reduce inventory diversity.

Advantages

This outlet box provides full shielding for improved EMC performance and supports Cat.6A performance levels. The design permits wiring from all directions in 8x45° steps and offers plug-in ground connection options at all four corners according to DIN 46342-1. A detachable vertical fixing rail and low installation depth enable installation in subfloor mounting boxes and floor tanks. The outlet box accepts both 6‑pin (RJ11/12) and 8‑pin (RJ45) connectors with overbend protection and can be combined with multiple cover programs; a transparent, flip-up label field can be retrofitted.

Suitable for

• Cat.6A network outlets in office and data cabling
• Shielded installations requiring improved EMC immunity
• Subfloor and floor-tank installations with limited depth
• Environments needing flexible cable entry directions and grounding options

Key specifications

• Transmission performance: Cat.6A according to ISO/IEC 11801 and EN 50173-1
• Full shielded design with 360° shielding contact
• Cable inlet configurable in 8x45° steps; horizontal or vertical installation
• Plug-in ground connection option at all four corners (DIN 46342-1; 6.3 mm)
• Compatible with 6‑pin (RJ11/12) and 8‑pin (RJ45) connectors
• Detachable vertical fixing rail for subfloor installation
• White finish; MPN: J00020A0500; EAN: 4018359362959

How to use

Position the outlet box in the desired horizontal or vertical orientation in the cable duct or subfloor mounting box. Route the shielded cable into the box from the chosen direction using 8x45° inlet positions and secure the outer jacket and shielding with the captive screw clamps to ensure 360° shielding contact and strain relief. Connect the internal connector (RJ45 or RJ11/12 as required) and, if needed, attach the plug-in ground connection at one of the four corner points. Fit the appropriate cover plate or switching program cover and, if desired, retrofit the transparent flip-up label field.

Recommendations

Use with properly terminated shielded twisted-pair Cat.6A cable and ensure the shielding is continuously and correctly connected to maintain specified transmission performance and EMC protection. Verify connector compatibility (6‑pin or 8‑pin) and follow local installation standards for grounding and floor-box mounting.
