Zásuvka typ F JUNG A 1520 BF SW čierna

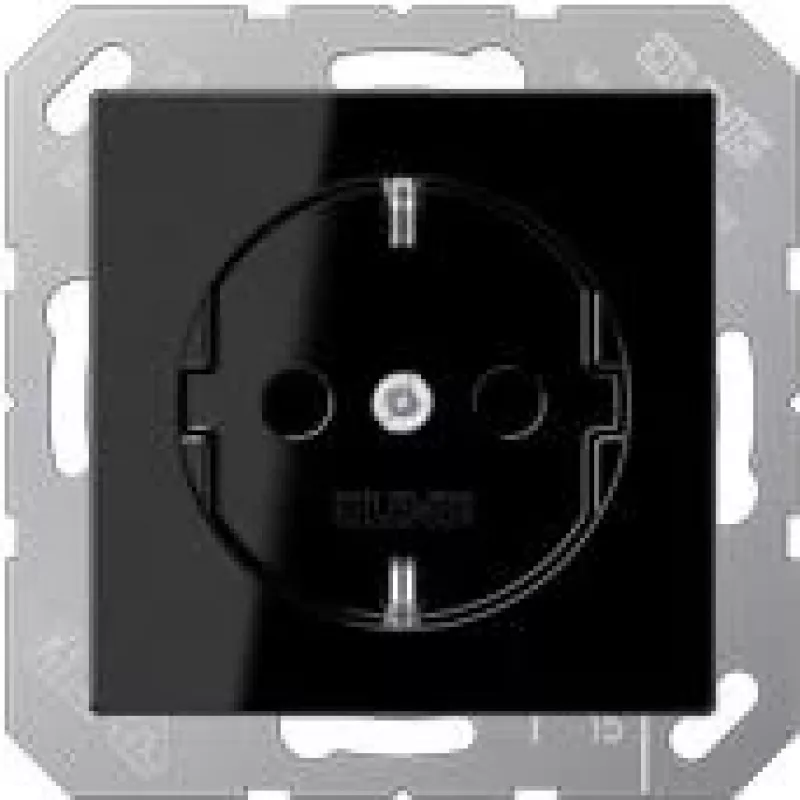

The JUNG A 1520 BF SW socket-outlet is a Type F (Schuko) flush-mounted electrical outlet in black, made of durable thermoplastic. It is rated for 250 V and 16 A and fits standard universal installation points with compact dimensions of 55 × 55 mm. The model is available with screwless terminals for wires up to 2.5 mm²; variants without claws include an additional "N" in the reference number (e.g. ..1520 N..), while versions with screw terminals use reference ..1521.. The supporting frame, claws and claw screws are integrated into the earth protection.

Advantages

The socket offers a compact, standardized form factor suitable for universal locations and is manufactured from thermoplastic for durability. Screwless terminals enable quick connection of conductors up to 2.5 mm² without tools, while alternative screw-terminal versions provide a conventional connection option. Integrated supporting frame and earthing components simplify mounting and ensure proper protective earth connection.

Suitable for

Key specifications

How to use

Install the JUNG Type F socket in a standard flush-mounted box according to local electrical regulations. For the screwless-terminal variant, strip the conductor to the recommended length, insert the conductor into the terminal until secured, and verify mechanical retention. For the screw-terminal variant, loosen the terminal screws, insert conductors and tighten to the specified torque. Ensure the protective earth is correctly connected via the integrated earthing components. Restore power only after correct mounting and connection checks.

Recommendations

Use the screwless terminal version for faster on-site wiring of conductors up to 2.5 mm²; choose the screw-terminal variant where a traditional clamped connection is required. Follow applicable wiring standards and observe maximum rated current of 16 A and rated voltage of 250 V.
