Zásuvka typ F Jung LS 1520 KI SWM — 1-modulová, 2P, 16A, 250V, čierna

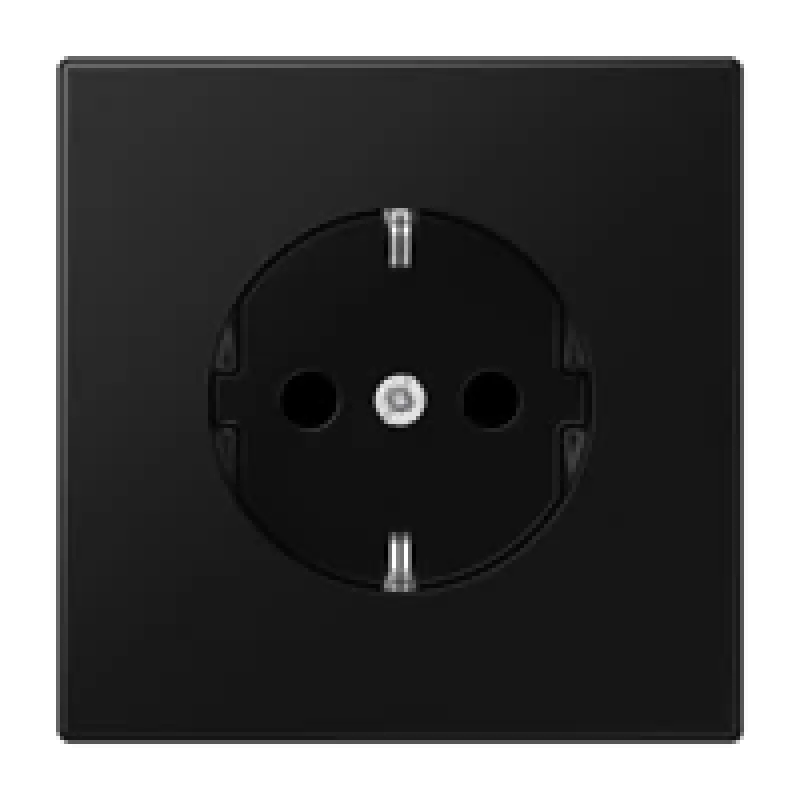

Jung LS 1520 KI SWM is a single-module Type F socket outlet designed for standard electrical installations. The outlet provides two poles (2P) with a rated current of 16 A and a rated voltage of 250 V. It features a black thermoplastic housing and integrated earth protection. The device includes enhanced contact protection (shutter) and screwless terminals that accept conductors up to 2.5 mm², making it suitable for residential and commercial environments where a compact grounded outlet is required.

Advantages

The socket combines a compact single-module design with integrated safety features: an internal shutter for enhanced contact protection and earth protection with an integrated supporting frame and claws. Screwless terminals simplify wiring and accept flexible or solid conductors up to 2.5 mm² without additional screws, speeding installation and reducing the risk of loose connections. The thermoplastic black finish provides durable surface protection while matching modern interior designs.

Suitable for

Key specifications

How to use

Turn off the circuit power before starting installation. Mount the socket into the appropriate single-module mounting box following local electrical codes. Insert conductors into the screwless terminals (up to 2.5 mm²) and ensure secure seating according to the manufacturer’s instructions. The integrated earth protection provides the protective conductor connection and includes the supporting frame and claws. After wiring, attach the cover and restore power to test the outlet with a suitable tester to confirm correct live, neutral and earth connections.

Recommendations

Use this Jung Type F socket outlet for fixed installations where a compact, grounded outlet with enhanced contact protection is required. Choose the variant without claws (ref. with additional "N") if claws are not needed, or the screw-terminal variant (ref. ..1521..) when screw terminals are preferred. Follow local wiring regulations, verify conductor cross-sections do not exceed 2.5 mm² for the screwless terminals, and perform proper testing after installation.
