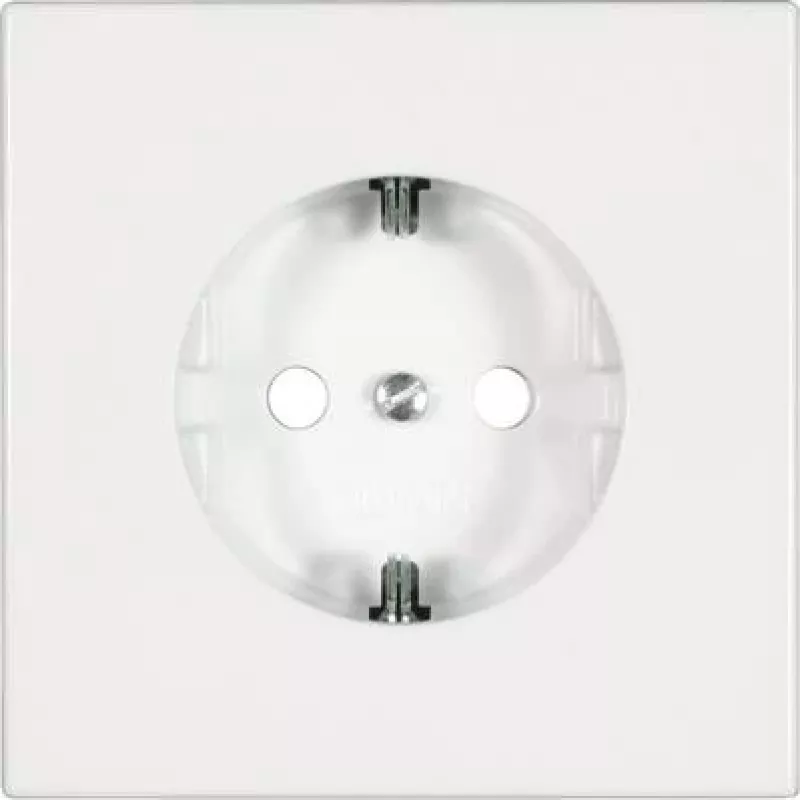

Zásuvka typ F jung LS 1520 WW — 250 V, 16 A, biela, duroplast, 70x70 mm

jung LS 1520 WW is a Type F (Schuko) socket outlet rated for 250 V and 16 A, designed for standard wall-box installations. The socket accepts CEE 7/4 plugs and comes in a white duroplast housing with compact dimensions of 70 × 70 mm, making it suitable for both residential and commercial electrical installations that require a grounded European connection. The device includes screwless terminals for conductors up to 2.5 mm² and an integrated earth protection assembly that houses the supporting frame, claws and claw screws. Variants without claws are available (reference with additional "N"). Optional markings for specific uses can be supplied for an extra charge.

Advantages

The socket outlet offers a space-saving footprint and a durable duroplast finish that resists everyday wear. Screwless terminals simplify wiring and accommodate conductors up to 2.5 mm², facilitating secure and efficient electrical connections. Integrated earth protection with supporting frame and claws ensures reliable grounding without separate external components. The product is compatible with standard CEE 7/4 plugs used across many European countries.

Suitable for

Key specifications

How to use

Install the socket outlet into a standard 70 × 70 mm flush-mount wall box following local electrical regulations. Shut off power at the distribution board before wiring. Connect the phase, neutral and earth conductors to the designated screwless terminals, ensuring proper conductor insertion and secure contact for conductors up to 2.5 mm². If using a variant without claws, verify mounting requirements and secure the device according to the supplied installation instructions. After wiring, restore power and test the outlet for correct operation and grounding continuity.

Recommendations

Use this Type F socket for grounded European appliances and circuits within the rated 250 V/16 A limits. For installations requiring specific surface markings (e.g., for IT equipment or safety circuits), request the optional printed designations. Observe all applicable local standards and have installations performed or inspected by a qualified electrician.
