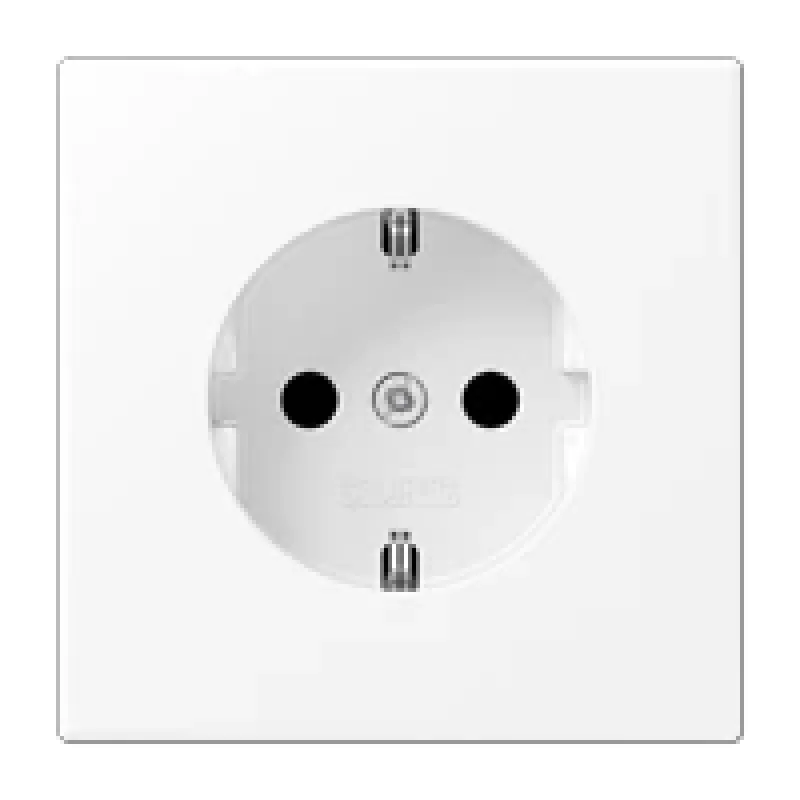

Zásuvka typ F jung LS 1520 WWM, 2P 16 A 250 V, 1 modul, biela termoplast

jung LS 1520 WWM is a single-module Type F socket outlet designed for standard indoor electrical installations. The 2-pole receptacle is rated for 16 A at 250 V and is housed in white thermoplastic, providing a compact mains connection suitable for general-purpose appliances and everyday power needs. The product features screwless terminals compatible with conductor sizes up to 2.5 mm² and an earth protection design with integrated supporting frame and claw components for reliable grounding.

Advantages

The single-module form factor allows space-saving installation in modular switch systems while maintaining a full-rated 16 A supply. White thermoplastic housing ensures a neutral appearance and basic impact resistance appropriate for indoor environments. Screwless terminals simplify wiring and reduce installation time by allowing direct insertion of conductors up to 2.5 mm² without separate screw clamping. Integrated earth protection with supporting frame and claws provides secure PE connection and mechanical stability.

Suitable for

Key specifications

How to use

Install the socket outlet into a compatible single-module mounting frame according to applicable wiring regulations. Ensure power is switched off before connecting conductors. Insert live and neutral conductors into the screwless terminals, confirming firm retention for conductors up to 2.5 mm². Connect protective earth using the integrated earth protection and supporting frame to guarantee a secure grounding path. After wiring, secure the module in the installation box and fit the cover or faceplate consistent with the modular system used. Restore power and test the outlet with appropriate testers before use.

Recommendations

Use this outlet indoors in dry, temperate environments and only within its rated current and voltage. For installations without integrated claws, choose the variant with claws or the screw-terminal version if preferred. Follow local electrical codes and, where required, have a qualified electrician perform or inspect the installation.
