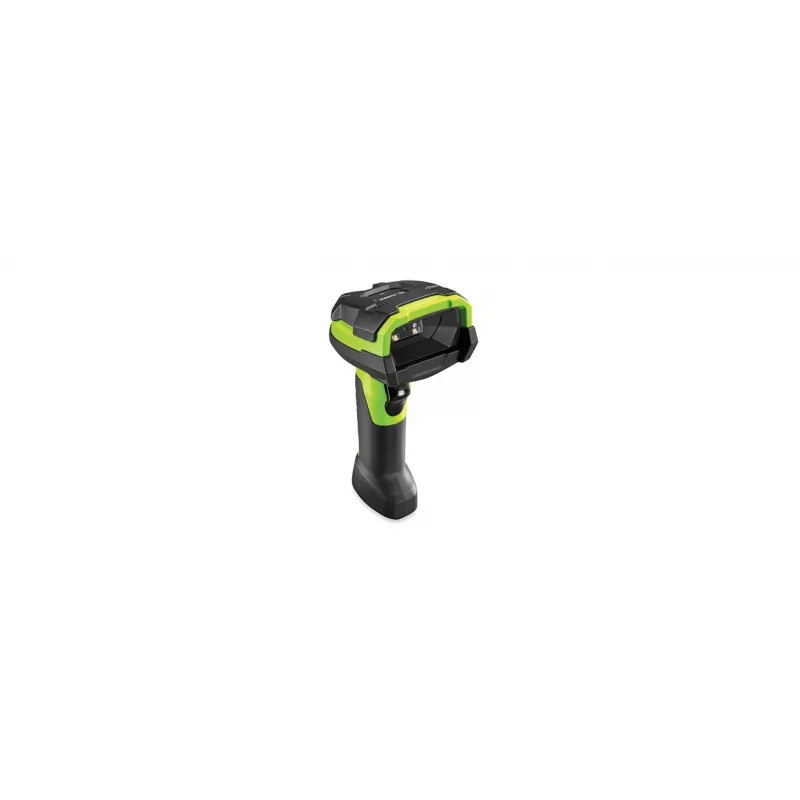

Zebra DS3678-HP ručná čítačka čiarových kódov 1D/2D laser čierna, zelená

The Zebra DS3678-HP handheld bar code reader delivers ultra-rugged, high-performance capture of 1D and 2D barcodes, photos, documents and other business data. Available as a cordless (DS3678-HP) or corded model, it is designed for demanding warehouse and manufacturing environments. The scanner reads virtually any printed or electronic barcode up to 7 ft (2.1 m) away, supports OCR and document imaging, and offers wired and wireless connectivity options to integrate with existing systems.

Advantages

The DS3678-HP provides fast and accurate capture from damaged, dirty or poorly printed barcodes and from electronic screens. Its ultra-rugged design meets IP67 environmental sealing with an IP65-sealed cradle for cordless deployments, ensuring dust- and water-resistance and high shock tolerance. The scanner supports a wide range of barcode symbologies and can capture photos and legible document images for proof of condition and recordkeeping. Complementary management tools enable remote configuration, firmware upgrades, data formatting and battery monitoring for simplified device administration.

Suitable for

• Warehouse receiving, picking and inventory management
• Manufacturing floor scanning and parts tracking
• Logistics, shipping and proof-of-delivery workflows
• Document capture and OCR for electronic records

Key specifications

• Scanner type: 1D/2D
• Sensor type: Laser
• Scanning range: up to 7 ft / 2.1 m
• Connectivity: wired and wireless (includes RS-232 and USB interfaces)
• Battery: 3100 mAh Lithium‑Ion (cordless model)
• Wireless range: up to 100 m (cordless model)
• Environmental protection: IP67 (scanner), IP65 (cradle)
• Weight: 0.411 kg
• Supported 1D codes: U.P.C., Plessey, MSI, GS1-128 (UCC/EAN-128), Code 93, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: Composite Codes, Aztec Code, QR Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, TLC-39
• Product colour: Black, Green

How to use

Connect the DS3678-HP to your host system via the preferred interface (USB, RS-232 or wireless). For cordless operation, ensure the battery is charged and the scanner is paired with its cradle or base. Aim the scanner at the barcode or document and press the trigger; the device will decode barcodes, capture images or perform OCR as configured. Use the Zebra management tools to set data formatting, symbology preferences and transmission parameters before deployment.

Recommendations

For reliable long-term operation, follow manufacturer guidelines: keep firmware up to date via the management tools, use the IP65-sealed cradle for cordless units in dusty or wet conditions, and inspect scans periodically to confirm image quality. Replace the battery with manufacturer-approved parts and store the device in a clean, dry location when not in use.
