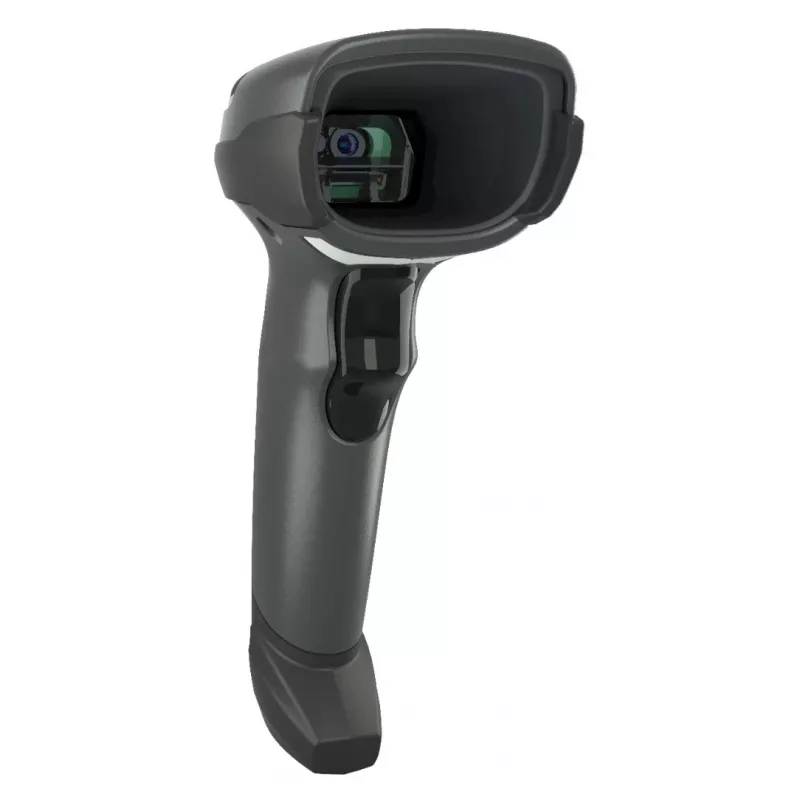

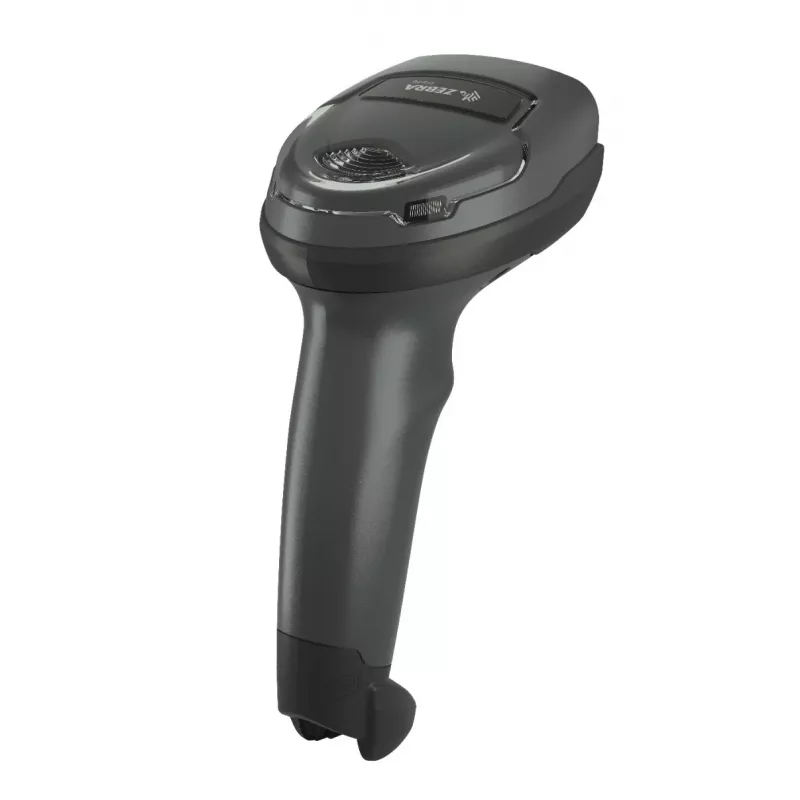

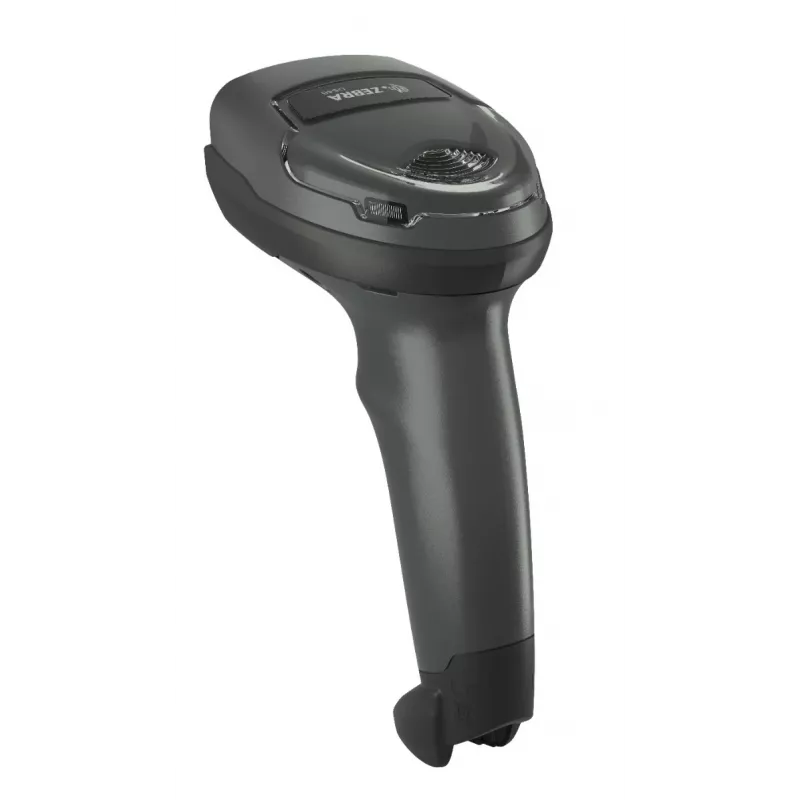

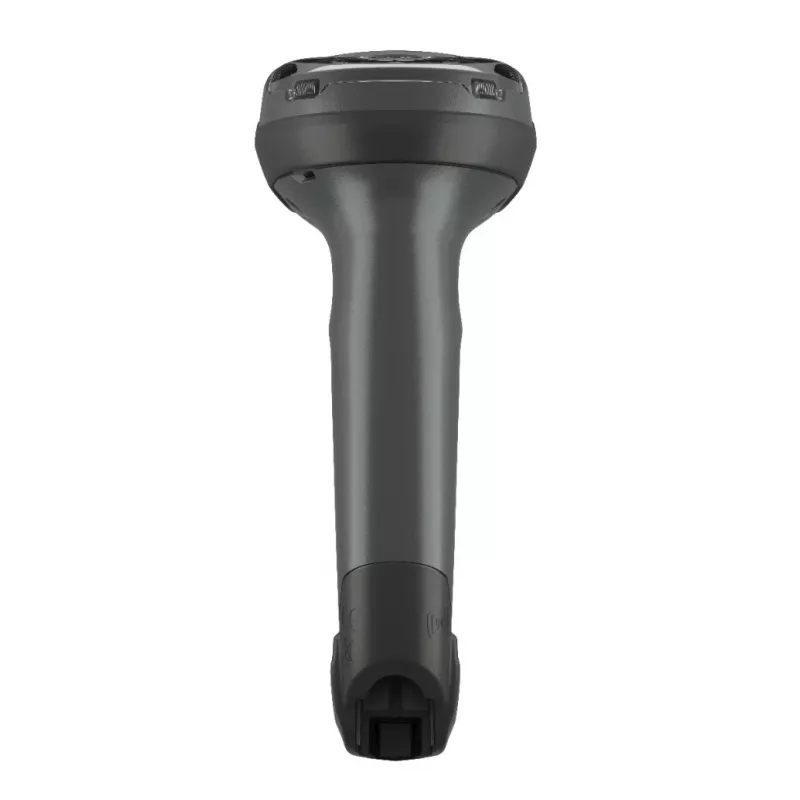

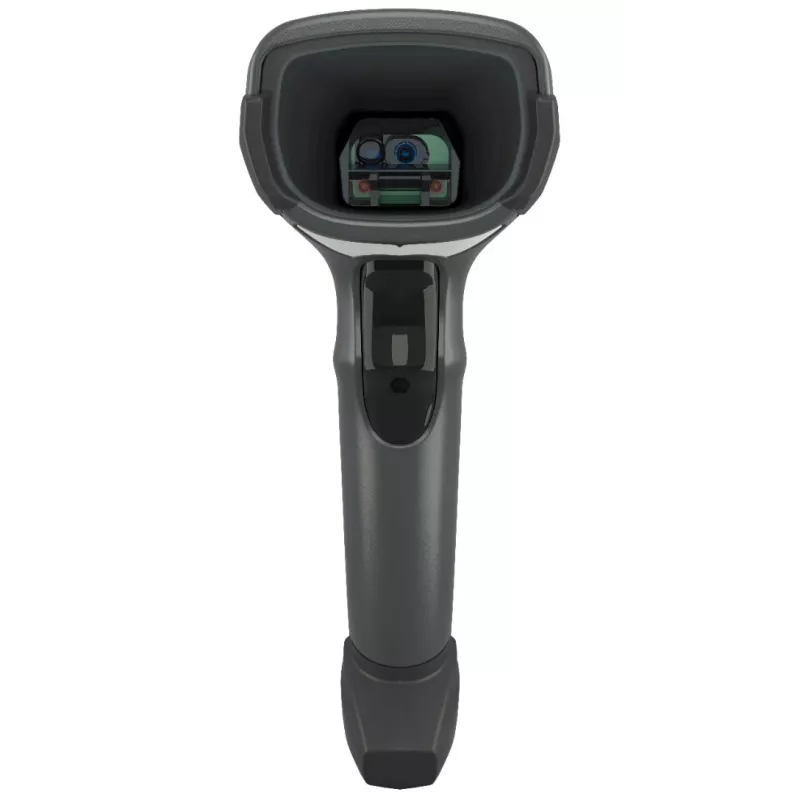

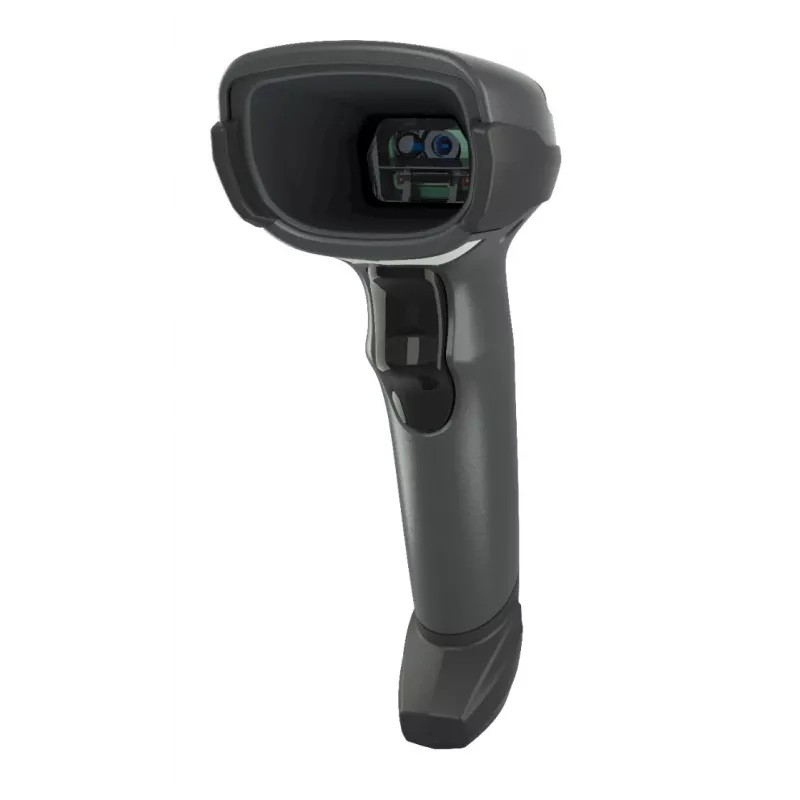

Zebra DS4608-DPE0007VZRW čítačka čiarových kódov ručná čítačka 1D/2D LED čierna

The Zebra DS4608-DPE0007VZRW is a handheld bar code reader designed for reliable 1D and 2D code capture in retail, logistics and light industrial environments. The scanner uses an LED sensor and a wired USB connection to deliver consistent decoding of linear and matrix codes. Its compact dimensions and lightweight construction make it suitable for handheld use during continuous scanning tasks, while an IP52 rating provides basic protection against dust and moisture.

Advantages

The scanner combines support for a wide range of 1D and 2D symbologies with a low power consumption of 340 mA, providing efficient operation when connected via USB. Weighing approximately 161.9 g and finished in black, the device is easy to hold for extended periods and fits comfortably into standard scanning workflows. The LED-based sensor architecture supports fast code acquisition and accurate decoding across printed and digital displays.

Suitable for

• Point-of-sale scanning of retail barcodes
• Inventory counting and stock management
• Package and shipping label verification
• Mobile device screen scanning for tickets and coupons
• Document and barcode data capture in offices and warehouses

Key specifications

• Scanner type: 1D/2D handheld reader
• Sensor type: LED-based imaging
• Connectivity: Wired USB interface
• Power consumption: 340 mA when operating via USB
• Weight: 0.1619 kg (approximately 161.9 g)
• Physical size: approximately 98 mm (width) × 165 mm (depth)
• Environmental protection: IP52 (protection against limited dust ingress and dripping water)
• Supported linear barcodes: Code 93, UPC-E, PDF417, MSI, GS1 DataBar, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: Data Matrix, TLC-39, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Han Xin, Dot Code A, Composite Codes, Aztec Code
• Colour: Black

How to use

Connect the Zebra DS4608 to a host computer or POS terminal using the supplied USB cable. Position the scanner so the aiming pattern covers the barcode area and pull the trigger to activate the LED sensor; the device will decode visible 1D or 2D barcodes and transmit the data over the USB connection. For scanning barcodes on mobile device screens, adjust the distance and angle until the aiming pattern yields a consistent read. Handle the unit by its grip and avoid applying pressure to the window to maintain optical clarity.

Recommendations

Maintain the scanner window clean and free of scratches for optimal performance, and use within ambient temperature and humidity ranges recommended by your installation environment. For frequent handheld use, position cables to avoid strain and verify host communication settings on the connected system to ensure proper data capture formatting.
