FXR90 ULTRA-RUGGED pevná RFID čítačka UHF BT 5.3 WIFI6 8 portov

With up to +33 dBm output power and a blistering read rate of 1100 tags per second, the Zebra FXR90 redefines fixed RFID performance in demanding industrial environments.

Overview

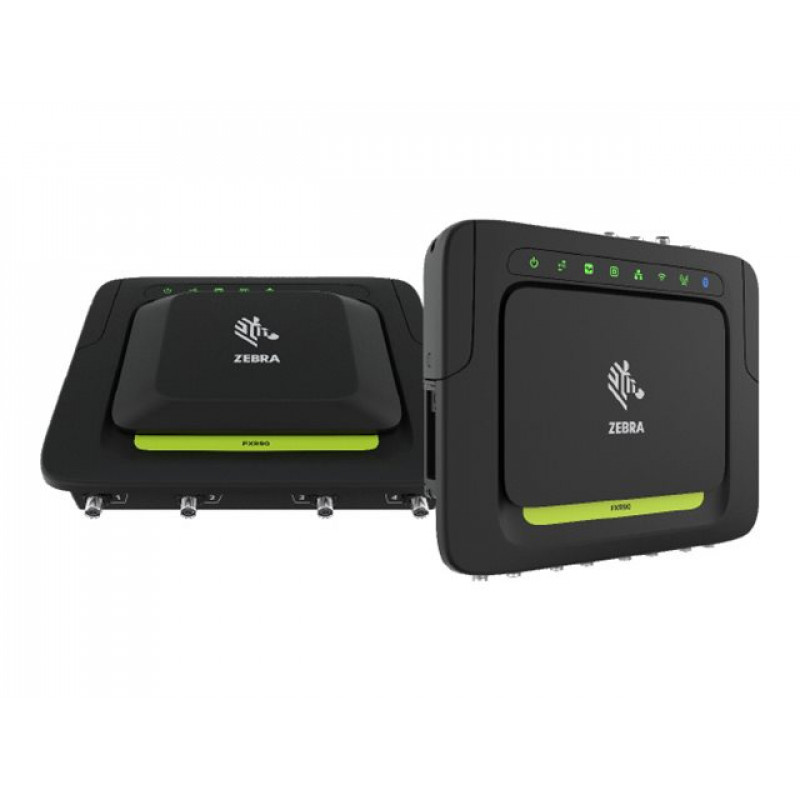

The Zebra FXR90 is an ultra-rugged fixed RFID reader engineered for high-volume asset tracking, inventory management, and supply chain visibility. It supports EPCglobal Gen2 V2 and ISO 18000-63 UHF protocols, delivering exceptional read accuracy across eight antenna ports. Built to withstand harsh conditions, its IP67-rated enclosure and wide operating temperature range (-20°C to +60°C) ensure reliable operation in warehouses, manufacturing floors, and outdoor logistics hubs.

What stands out

• Eight RP-TNC antenna ports for expansive coverage and flexible deployment.
• Dual-band wireless: Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for seamless connectivity.
• Quad-core 1.8 GHz processor with 2 GB RAM and 8 GB flash for high-speed data processing.
• Power over Ethernet (PoE++) or 24V DC input for simplified installation.
• Advanced security with WPA3 and TLS 1.2/1.3 encryption.
• Versatile management via web GUI, LLRP, and RESTful API.

Technical details

• RFID Frequency: UHF (865-928 MHz depending on region)
• Protocols: EPCglobal Gen2 V2, ISO 18000-63
• Antenna Ports: 8 x RP-TNC Female
• Output Power: Up to +33 dBm (1.99 W)
• Connectivity: 1 x Gigabit Ethernet (RJ45), Wi-Fi 6, Bluetooth 5.3
• Interfaces: USB Host, USB Client, GPIO (4 In / 4 Out), RS-232
• Operating System: Embedded Linux
• Mounting: VESA 100mm, Wall Mount
• IP Rating: IP67
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Read Rate: Up to 1100 tags/second

Our verdict

For enterprises needing uncompromising RFID performance in tough conditions, the Zebra FXR90 delivers exceptional speed, reliability, and future-proof connectivity.
