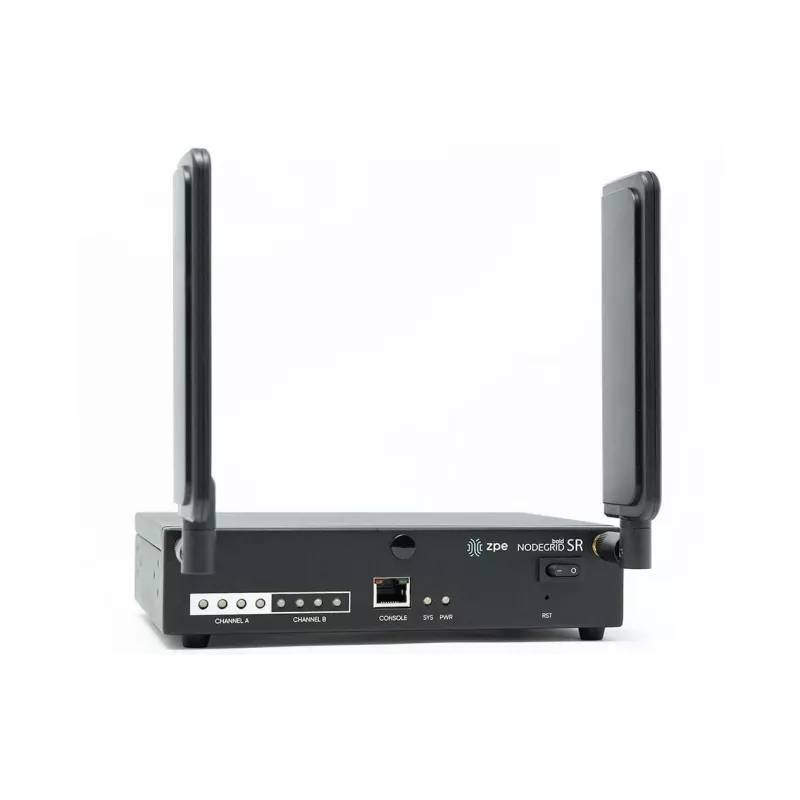

ZPE Systems Nodegrid Bold SR konzolový server, 8x RJ45, 1U Rackmount, Dual Gigabit Ethernet

The ZPE Systems Nodegrid Bold SR stands apart from conventional console servers by integrating a powerful quad-core ARM processor with 4GB RAM and 32GB eMMC storage, delivering enterprise-grade out-of-band management in a compact 1U form factor. With eight RJ45 serial ports and dual Gigabit Ethernet, this device ensures reliable, secure remote access to critical IT infrastructure, even when the primary network is down.

Highlights

• 8x RJ45 serial ports (RS-232) for comprehensive console access
• Dual 1GbE RJ45 Ethernet ports for redundant network connectivity
• Quad-core ARM Cortex-A53 processor and 4GB DDR4 RAM for smooth multitasking
• 32GB eMMC storage for ample logging and application hosting
• Nodegrid OS with support for Docker containers and ZPE Cloud integration
• Advanced security: AAA (RADIUS, TACACS+, LDAP), firewall, VPN, optional FIPS 140-2
• 1U rackmount design with included mounting kit
• Compliant with FCC, CE, and RoHS standards

In daily use

IT administrators can rely on the Nodegrid Bold SR to maintain uninterrupted access to network devices, servers, and power distribution units. The device supports both CLI and web-based management, along with REST API and SNMP, enabling seamless integration into existing automation workflows. Its compact size and low power consumption (max 25W) make it an ideal choice for data centers and remote sites where space and energy efficiency are paramount.

Full specifications

• Product Type: Console Server / Out-of-Band Management Device
• Serial Ports: 8x RJ45 (RS-232)
• Ethernet Ports: 2x 1GbE RJ45
• USB Ports: 2x USB 3.0 Type-A
• Processor: Quad-core ARM Cortex-A53
• RAM: 4GB DDR4
• Storage: 32GB eMMC
• Operating System: Nodegrid OS (Linux-based)
• Management Interfaces: Web UI, CLI, REST API, SNMP
• Security Features: AAA (RADIUS, TACACS+, LDAP), Firewall, VPN, FIPS 140-2 (optional)
• Power Supply: Single AC (100-240V)
• Form Factor: 1U Rackmount
• Mounting Kit: Included
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Power Consumption: Max 25W
• Compliance: FCC, CE, RoHS

Final note

With its robust hardware and feature-rich Nodegrid OS, the ZPE Systems Nodegrid Bold SR delivers a future-proof solution for secure, scalable out-of-band management. Whether for branch offices or enterprise data centers, this console server offers the performance and reliability needed to keep critical systems accessible at all times.
