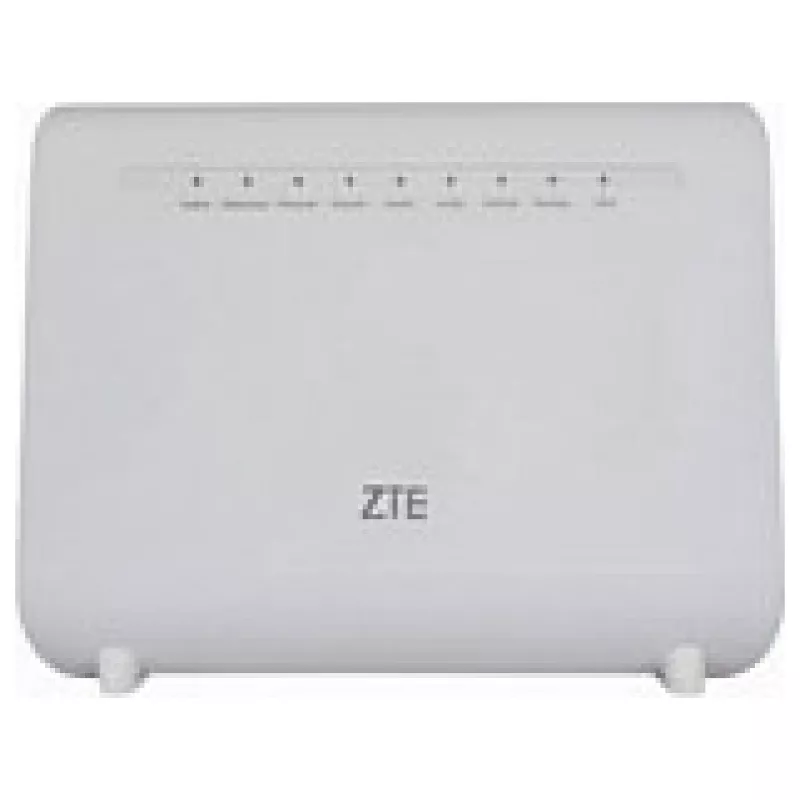

ZTE ZXHN H288A AC1200 dual-band WLAN + VDSL2 a SuperVectoring profil 35b modem + router (gateway)

The ZTE ZXHN H288A is a high-performance VDSL2 modem router gateway designed for demanding home and small office environments. Combining AC1200 dual-band Wi-Fi with VDSL2 and SuperVectoring Profile 35b technology, it delivers fast and reliable internet connectivity. With four Gigabit Ethernet ports, two USB 2.0 ports, and two VoIP FXS ports, this device offers versatile connectivity options for all your devices.

Advantages

Experience blazing-fast internet speeds with SuperVectoring Profile 35b support, reaching up to 300 Mbps on VDSL2 connections. The dual-band Wi-Fi (2.4 GHz and 5 GHz) provides combined speeds of up to 1200 Mbps, ensuring smooth streaming, gaming, and browsing. The integrated VoIP functionality allows you to make phone calls over the internet, saving on traditional phone bills.

Suitable for

• Home users requiring high-speed internet for streaming, gaming, and smart home devices
• Small offices needing reliable wired and wireless connectivity
• Users with VDSL2 or ADSL broadband connections
• Those looking for a cost-effective all-in-one modem router with VoIP support

Key specifications

• Device Type: VDSL2 Modem Router Gateway
• Wireless Standard: IEEE 802.11ac (Wi-Fi 5)
• Wireless Speed: AC1200 (867 Mbps on 5GHz, 300 Mbps on 2.4GHz)
• Wireless Bands: Dual-Band (2.4 GHz & 5 GHz)
• Modem Standard: VDSL2 (ITU G.993.2), ADSL2+, ADSL2, ADSL
• Vectoring Support: SuperVectoring Profile 35b (G.993.5 G.vector)
• Ethernet LAN Ports: 4 x Gigabit Ethernet (RJ-45)
• Ethernet WAN Port: 1 x Gigabit Ethernet (RJ-45)
• DSL Port: 1 x RJ-11
• USB Ports: 2 x USB 2.0
• VoIP Ports: 2 x FXS (RJ-11)
• Antenna Type: Internal Antennas
• Security Protocols: WPA/WPA2-PSK, WPA/WPA2-Enterprise, MAC Filtering
• Firewall: SPI Firewall, DoS Protection
• IPv6 Support: Yes (IPv4/IPv6 Dual Stack)
• Management: Web-based GUI, TR-069
• Guest Network: Yes
• Quality of Service (QoS): Yes
• DLNA Support: Yes
• Parental Control: Yes

Recommendations

For optimal performance, ensure your internet service provider supports VDSL2 and SuperVectoring Profile 35b. The device is easy to set up with the included quick start guide and web-based management interface. Ideal for users upgrading from older ADSL modems or seeking a reliable all-in-one solution.
