ZVK Easylan LWL zváracie puzdro Basic 1U 12x SC-Duplex OS2 zásuvka

The ZVK Easylan LWL Splice Enclosure Basic is a high-quality fiber optic patch panel designed for 19-inch rack mounting. It provides reliable splicing and termination for single-mode OS2 fibers in telecommunications, data centers, and LAN infrastructure.

Advantages

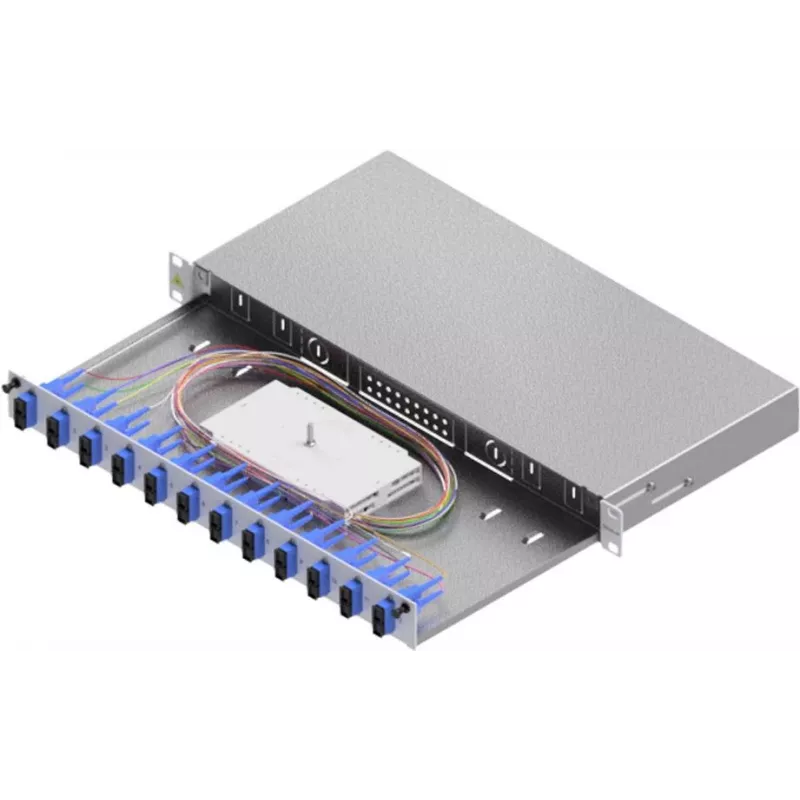

This 1U enclosure features a sliding drawer design for easy access to splice trays and adapters. It supports 12 SC-Duplex adapters (24 fibers) and includes integrated cable management for organized installation. The steel housing with powder coating ensures durability and long service life.

Suitable for

• Fiber optic network installations requiring SC-Duplex connectivity
• Data centers and server rooms
• Telecommunications and LAN infrastructure

Key specifications

• Product Type: Fiber Optic Splice Enclosure / Patch Panel
• Mounting: 19-inch Rack, 1U
• Connector Type: SC-Duplex
• Number of Adapters: 12
• Fiber Capacity: 24 Fibers (12x Duplex)
• Fiber Mode: Single-mode OS2
• Design: Sliding Drawer (Extractable)
• Housing Material: Steel, Powder-coated
• Cable Entry: Rear with multiple knockouts
• Splice Trays Included: Yes (typically 2x 12-fiber trays)

Recommendations

For optimal performance, use with OS2 single-mode patch cables and ensure proper cable management to maintain bend radius.
