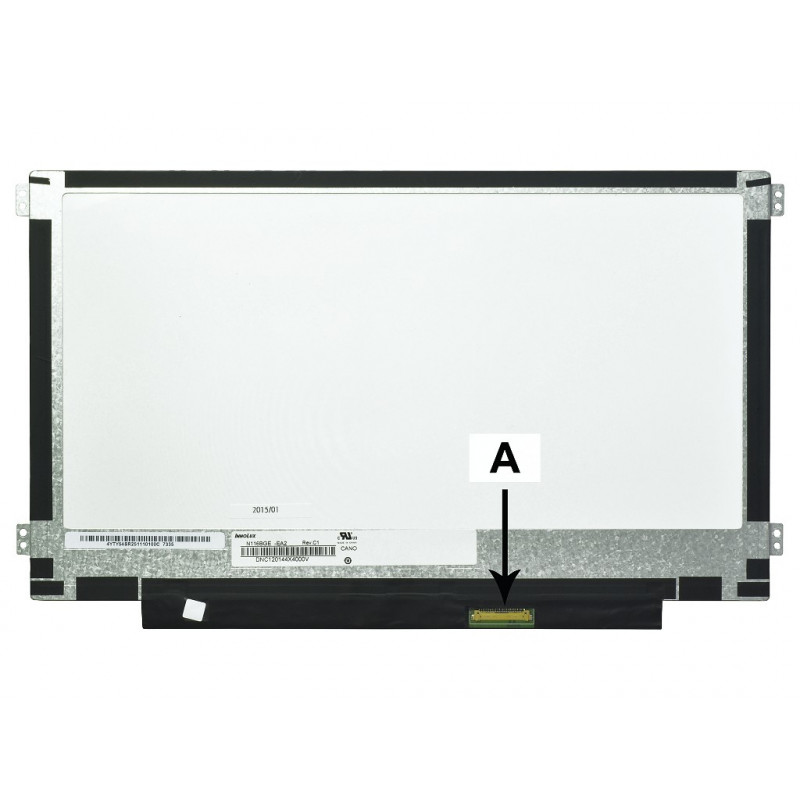

2-power 2P-5D10M57334 - 29,5 cm (11,6") - WXGA

When a cracked or faulty screen renders your 11.6-inch laptop unusable, this 2-POWER replacement panel restores crisp visuals and reliable performance. Designed for technicians and DIY upgraders working on compatible notebooks, it delivers a bright, clear WXGA image with an anti-glare finish that remains readable even under office lighting or near windows.

Key specifications

• Screen size: 11.6 inches (29.5 cm diagonal)
• Resolution: 1366 x 768 (WXGA HD)
• Aspect ratio: 16:9 widescreen
• Panel type: TFT active matrix LCD with LED backlight
• Surface: Matte (anti-glare)
• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Color gamut: 45% NTSC
• Viewing angles: 45/45/20/45 degrees (L/R/U/D)
• Response time: 8 ms
• Touchscreen: No

Why choose it

This panel is a direct-fit replacement for many 11.6-inch laptops using a 30-pin eDP interface. The LED backlight offers lower power consumption and longer life than older CCFL screens, while the matte coating reduces reflections and fingerprints. With a pixel density of approximately 135 PPI, text and images appear sharp and natural.

Ideal use cases

• Repairing a laptop with a damaged or dim display
• Upgrading from a lower-resolution or glossy panel
• Refurbishing notebooks for resale or fleet maintenance
• Building a custom portable monitor with an eDP controller

Good to know

Before ordering, verify your original screen's size, resolution, connector type, and mounting bracket position. The panel is supplied without cables, brackets, or adhesive; reuse the existing hardware from your device. Professional installation is recommended to avoid damage from electrostatic discharge.
