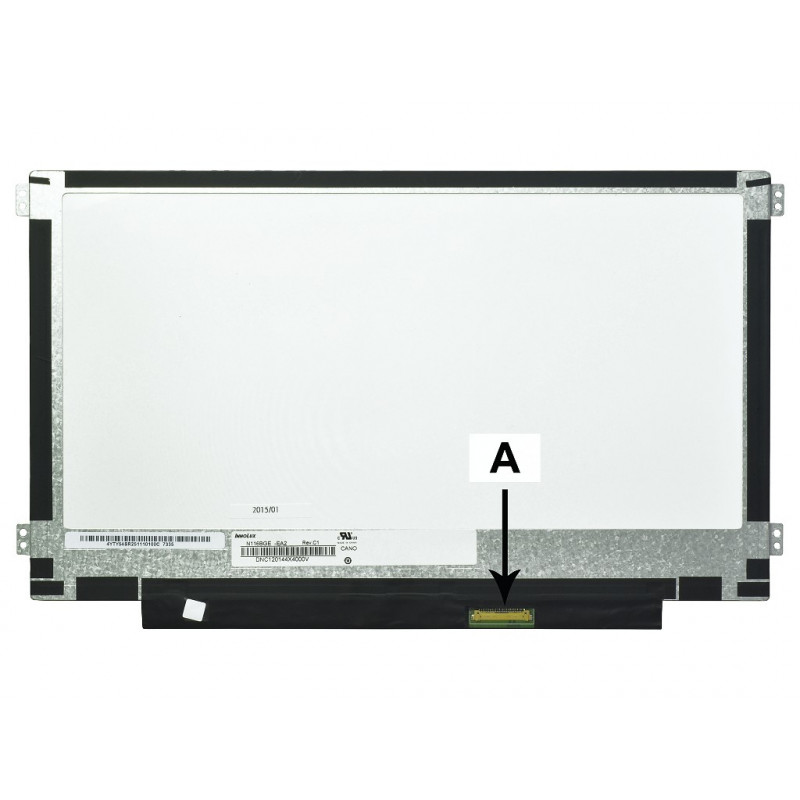

2-power 2P-B116XTN02.3-HW2C - 29,5 cm (11,6") - WXGA

Replacement laptop LCD screen delivering crisp WXGA resolution on an 11.6-inch TN panel with a glossy finish. This 2-POWER display restores vivid visuals and reliable performance to compatible notebooks, with a 40-pin LVDS connector for straightforward installation.

Advantages

The 1366 x 768 WXGA resolution provides clear detail for everyday computing, while the LED backlight ensures energy-efficient brightness at 200 cd/m². A 500:1 contrast ratio and 8 ms response time keep images sharp and motion smooth. The glossy surface enhances color depth, making it ideal for multimedia and office tasks.

Suitable for

• Replacing a damaged or faulty 11.6-inch laptop screen
• Upgrading to a new panel with original specifications
• DIY repairs and professional service centers

Key specifications

• Screen size: 11.6 inches (29.5 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Display technology: TN (Twisted Nematic)
• Backlight: WLED (White LED)
• Surface: Glossy (Glare)
• Connector: 40-pin LVDS
• Refresh rate: 60 Hz
• Brightness: 200 cd/m²
• Contrast ratio: 500:1
• Response time: 8 ms
• Viewing angles: 45/45/20/45 degrees
• Color gamut: 45% NTSC
• Logic voltage: 3.3V

Recommendations

Verify your original screen's connector type, resolution, and mounting style before ordering. Handle the panel by its edges and use proper ESD precautions during installation. This screen is new and compatible with laptops requiring a 40-pin LVDS interface.
