4G router INSYS icom MRX5 LTE — Fast Ethernet 10/100 Mbps, BGP/OSPF/RIP, IPSec, RADIUS

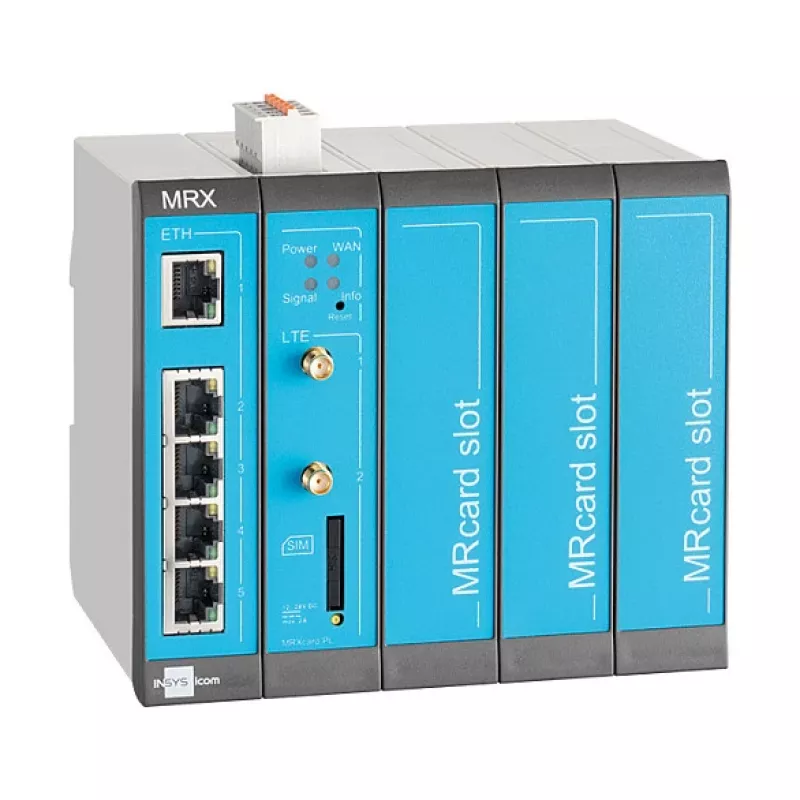

The INSYS icom MRX5 LTE is an industrial 4G router designed for secure, high-availability remote connectivity in automation, energy, transport and other critical applications. The MRX5 LTE provides Fast Ethernet LAN (10/100 Mbps), an integrated LTE modem with fallback to 3G (HSPA+, UMTS) and 2G (EDGE, GPRS), two digital inputs and a flexible hardware platform that can be extended with additional MRcards. The device supports routing protocols and enterprise security features to create redundant WAN links, resilient VPNs and centrally managed network access.

Advantages

The MRX5 LTE delivers KRITIS-level IT security and a high-performance routing engine capable of handling BGP, OSPF, RIP and RIPng. Built-in security functions include IPSec VPN, SSH and SNMP for monitoring, together with RADIUS authentication for centralized access control. The modular design allows field upgrades and interface extensions via MRcards, while parallel WAN and VPN operation enable failover and load-sharing for increased availability.

Suitable for

Key specifications

How to use

Install the MRX5 LTE in a suitable cabinet or DIN-rail location with proper ventilation and connect antennas to the LTE/UMTS terminals. Insert a compatible SIM card into the Ethernet WAN SIM slot or the cellular SIM slot as required and connect Ethernet cables to the LAN/WAN ports. Access the web-based management interface to configure network addressing, routing protocols (BGP, OSPF, RIP) and security settings including IPSec tunnels and RADIUS authentication. Use the two digital inputs to monitor external signals or integrate basic control functions with connected PLCs.

Recommendations

For reliable operation, use high-quality LTE antennas and place the router where signal strength is optimal. Configure redundant WAN paths and IPSec VPNs for critical connections, and enable SNMP monitoring to collect status and performance metrics. When extended interfaces or future standards are needed, add MRcards rather than replacing the router to reduce downtime and total cost of ownership.
