xDSL router INSYS icom MRX3 DSL-B s Fast Ethernet 10/100 Mbit/s, BGP/OSPF/RIP routing, IPSec VPN, RADIUS autentifikácia

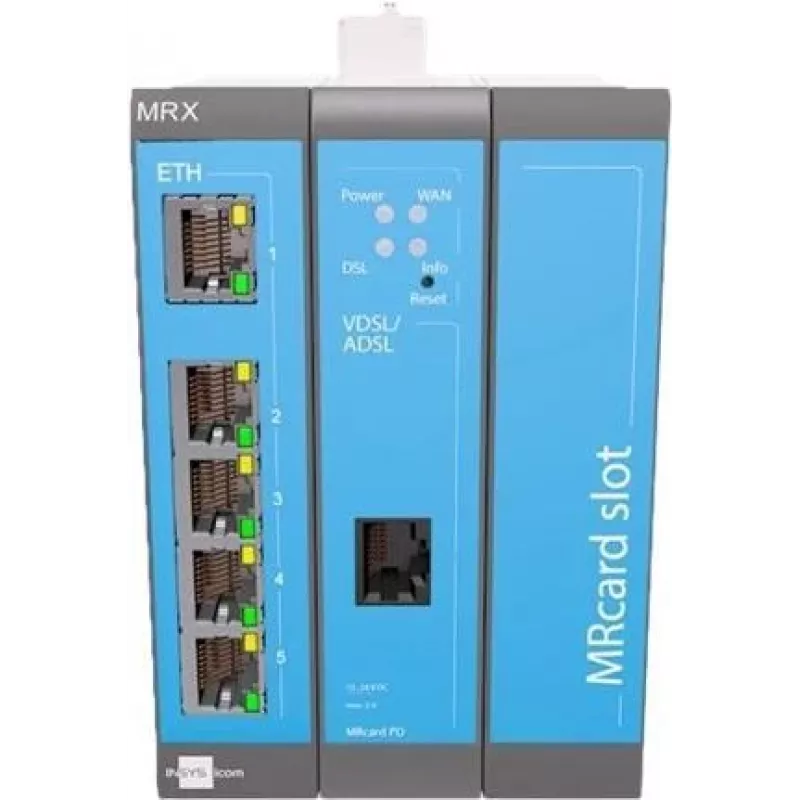

INSYS icom MRX3 DSL-B is an xDSL router designed for secure WAN edge routing and industrial or enterprise DSL connectivity. The device provides Fast Ethernet LAN ports supporting 10/100 Mbps and a routing feature set that includes BGP, OSPF, RIP and RIP-2. Security and management functions include IPSec VPN, SNMP and SSH, and user authentication via RADIUS. The MRX product family emphasizes modularity and expandability, allowing additional interface modules and future upgrades to meet evolving connectivity requirements.

Advantages

The MRX3 DSL-B combines multi-protocol dynamic routing with hardware designed for reliable operation in distributed networks. Its Fast Ethernet interfaces support standard 10/100 Mbps connectivity for LAN integration, while IPSec VPN and RADIUS authentication provide secure access and encrypted site-to-site tunnels. Modular MRcard expansion and multiple housing widths enable customized interface and port configurations. Compliance with CE and EN/IEC standards ensures the product meets applicable safety and electromagnetic compatibility requirements.

Suitable for

Key specifications

How to use

Install the MRX3 DSL-B at the network edge where xDSL WAN access is available and connect the Fast Ethernet LAN ports to local switches or endpoints. Use the router’s management interface to configure WAN parameters for the DSL connection, enable desired routing protocols (BGP, OSPF, RIP/RIP-2) and define route policies. Configure IPSec tunnels and RADIUS authentication to secure remote sites and user access. If additional interfaces are needed, install compatible MRcard modules according to the manufacturer’s instructions and adjust the configuration to expose the new interfaces.

Recommendations

For stable operation, ensure firmware is kept up to date and maintain backups of configuration files. Use centralized RADIUS servers for consistent authentication across sites and apply access control and strong IPSec policies for encrypted traffic. Consider the modular MRcard options when planning future upgrades such as higher-speed WAN technologies.
