ABB Welcome Basic 2-vodičová video domáca vrátnica súprava pre rodinné domy, 7" vnútorná stanica, podomietková vonkajšia stanica

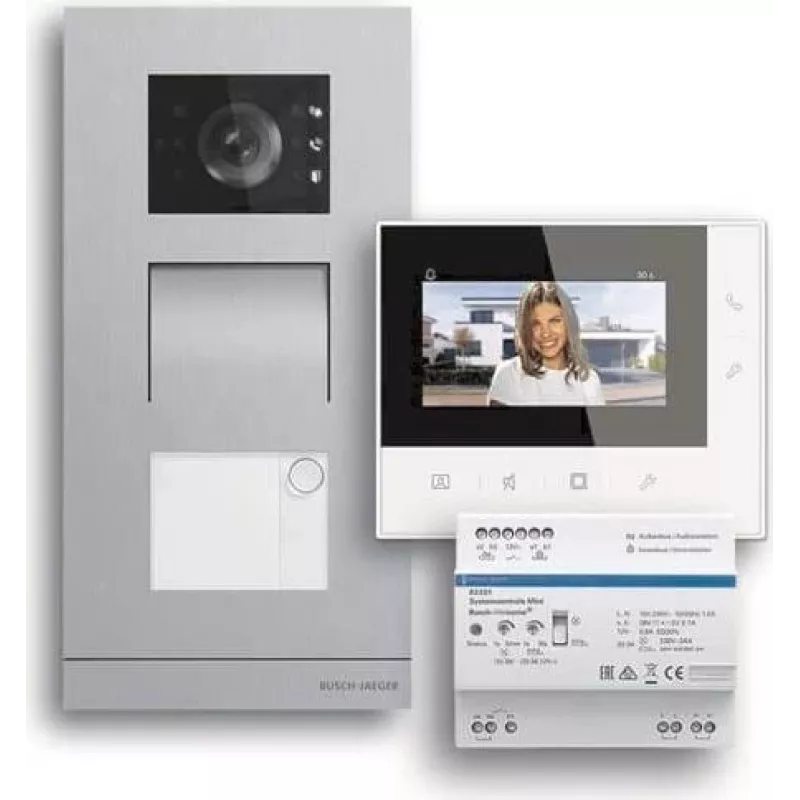

Answering the door from anywhere in the house becomes effortless with the ABB Welcome Basic 2-wire video intercom set. This complete kit replaces outdated audio-only doorbells with a crisp visual and two-way communication system, letting you see and speak with visitors before granting access. Designed specifically for single-family homes, it bundles a flush-mounted outdoor camera station, a sleek 7-inch indoor monitor, and a DIN-rail system controller for straightforward installation on the ABB Welcome 2-wire bus.

Who is it for

Homeowners upgrading from a traditional doorbell or basic intercom who want clear video identification, hands-free communication, and remote door release without complex wiring. Ideal for new builds or renovations where a two-wire bus simplifies cabling and future expansion.

Main features

• Complete single-family kit: outdoor station, indoor station, and system controller included.
• 2-wire bus technology for simple, cost-effective installation and easy expansion.
• Outdoor station with colour wide-angle camera (approx. 105° horizontal / 68° vertical) and mechanically adjustable lens.
• Brushed stainless steel front panel, IP44 weather resistance, and IK07 impact protection.
• 7-inch TFT colour display on the indoor station with hands-free communication and door opening.
• Additional indoor functions: video monitoring, mute, call forwarding, and picture memory for up to 20 images.
• System controller with 230 V AC power supply, DIN-rail mounting (4 modules), and potential-free door opener output (max. 30 V / 1 A).
• Expandable with additional indoor stations and other ABB Welcome components.

Specifications

• System type: 2-wire bus
• Application: single-family house
• Outdoor station: flush-mounted, colour camera, wide-angle, mechanically adjustable (±15° H/V)
• Outdoor station material: brushed stainless steel front panel
• Outdoor station IP rating: IP44
• Outdoor station IK rating: IK07
• Indoor station display: 7-inch (17.78 cm) TFT colour
• Indoor station mounting: surface-mounted
• Indoor station colour: white
• System controller power supply: 230 V AC, 50/60 Hz
• System controller mounting: DIN rail (4 modules)
• Door opener output: potential-free contact (max. 30 V / 1 A)
• Operating temperature outdoor: -25°C to +55°C
• Operating temperature indoor: 0°C to +45°C
• Expandability: supports additional indoor stations and ABB Welcome components

Tips

For best camera coverage, mount the outdoor station at approximately 1.5 metres height and adjust the lens angle to capture the visitor's face. Use the picture memory feature to review missed calls when away. The 2-wire bus allows you to add extra indoor monitors later without rewiring.
