PRÍSLUŠENSTVO krúžkové oko M20 DIN 582 C15 oceľové závesné oko 30001178

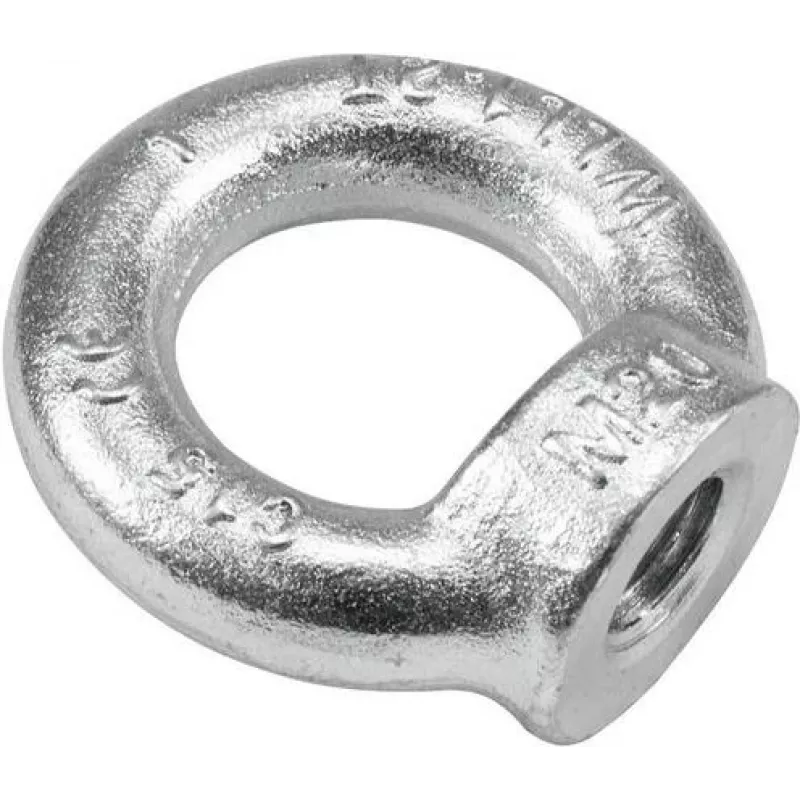

Forged steel lifting eye nut with metric coarse M20 thread, rated for axial loads up to 1250 kg with a 4:1 safety factor. Manufactured to DIN 582 from C15 steel with a plain self-colour finish.

Advantages

High load capacity, forged construction for strength, and a standardised M20 thread for easy integration into lifting assemblies.

Suitable for

• Lifting and hoisting applications
• Securing and rigging
• General industrial use

Key specifications

• Thread size: M20
• Material: C15 steel
• Working load limit (axial): 1250 kg
• Safety factor: 4:1
• Eye inner diameter: 35 mm
• Eye outer diameter: 60 mm
• Overall height: 85 mm
• Eye thickness: 20 mm
• Finish: Plain / self-colour
• Manufacturing method: Forged
• Standard: DIN 582

Recommendations

Use only with compatible lifting equipment and inspect before each use. Apply corrosion protection for outdoor or humid environments.
