ACT 2 metrový DisplayPort 1.4 kábel 8K konektor samec – konektor samec

The ACT DisplayPort 1.4 cable (2 m) provides high-quality video and audio transmission between devices with DisplayPort connectors. It supports up to 8K @ 60Hz and 4K @ 120Hz with a maximum bandwidth of 32.4 Gbps and HDR support for improved contrast and richer colours. The cable has a 7.3 mm diameter for durability and flexibility and features gold-plated lockable DisplayPort male-to-male connectors for a secure connection.

Advantages

The cable supports Display Stream Compression (DSC) 1.2, Forward Error Correction and 32 inline audio channels, ensuring stable high-resolution video and multi-channel audio. Gold-plated lockable connectors reduce signal loss and provide a reliable physical connection, while the 2 m length offers flexibility for typical monitor and PC setups.

Suitable for

• Connecting desktop PCs or laptops to monitors that support DisplayPort
• High-resolution video workflows up to 8K @ 60Hz or 4K @ 120Hz
• Gaming setups requiring high refresh rates and HDR
• Professional graphics and video editing where accurate colour and bandwidth are needed

Key specifications

• Standard: DisplayPort 1.4
• Maximum resolution: 8K @ 60Hz; 4K @ 120Hz
• Maximum bandwidth: 32.4 Gbps
• Features: DSC 1.2, Forward Error Correction, 32 inline audio channels

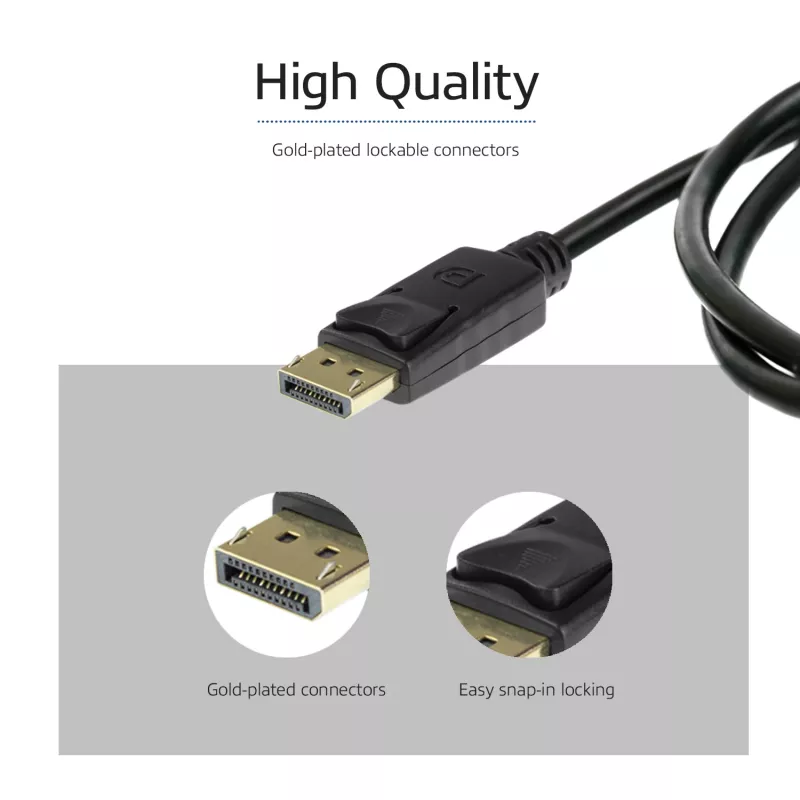

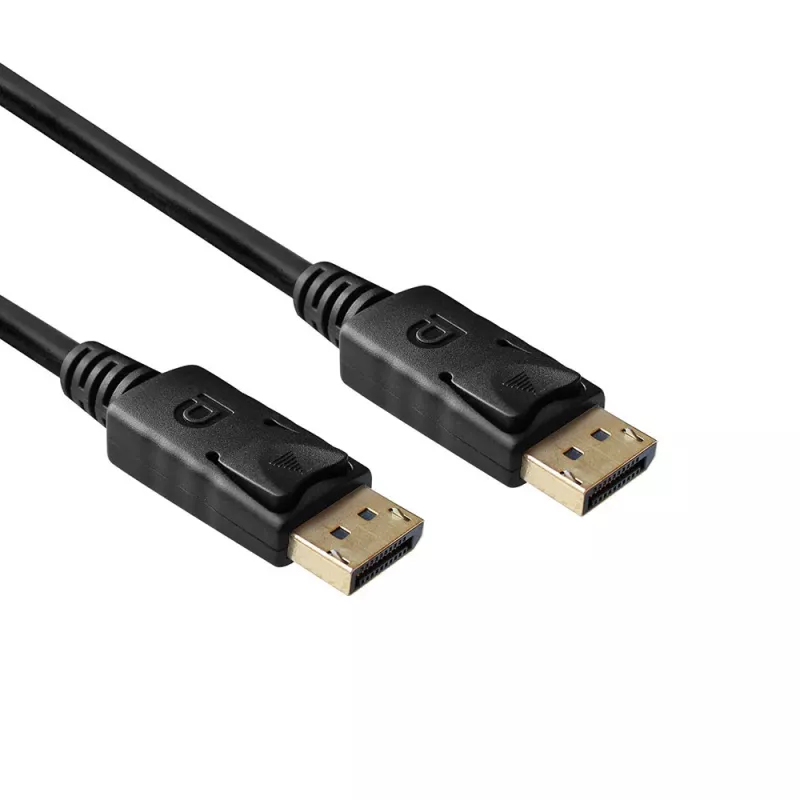

• Connectors: DisplayPort male — DisplayPort male, gold-plated, lockable
• Length: 2 m
• Diameter: 7.3 mm
• Colour: Black

How to use

Connect one end of the DisplayPort cable to the DisplayPort output on your computer or graphics card and the other end to the DisplayPort input on your monitor. If the connectors have locking tabs, press to insert until they click and gently pull the release tab to remove. Configure display settings in your operating system or GPU control panel to select the desired resolution, refresh rate and HDR options.

Recommendations

For optimal performance at 8K or high refresh rates, ensure both source and display support DisplayPort 1.4 features such as DSC and HDR. Avoid sharp bends and excessive pulling on the cable; secure cable routing to prevent strain on connectors.
