ACT 2-portový Dual HDMI 4K@60Hz KVM switch, USB 3.2 Gen1 (USB 3.0)

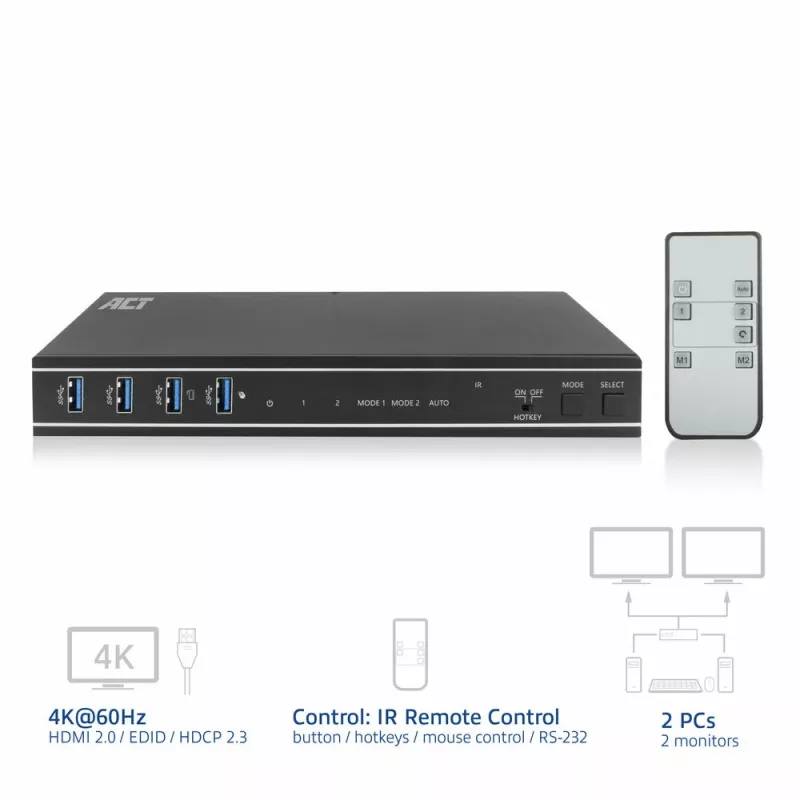

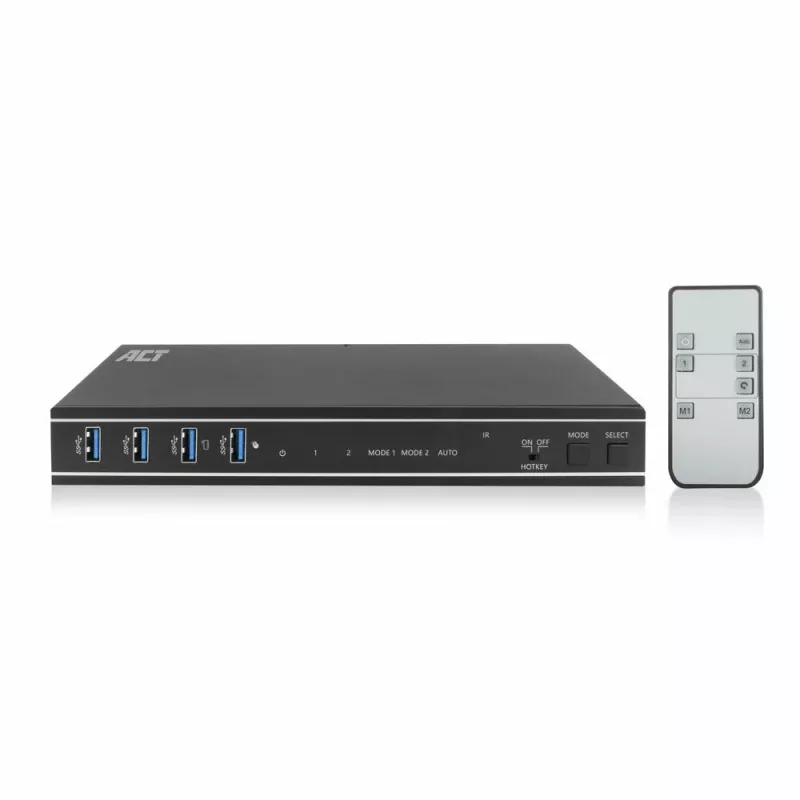

The AC7914 2-port 4K Dual HDMI KVM Switch lets you simplify your workspace by controlling two computers while using a dual monitor setup and a single USB keyboard and mouse. The HDMI outputs support monitors with a resolution up to 4K@60Hz. The AC7914 lets you switch between computers using the buttons on the switch itself, the IR remote control, keyboard hotkeys, a mouse, or RS-232 commands.

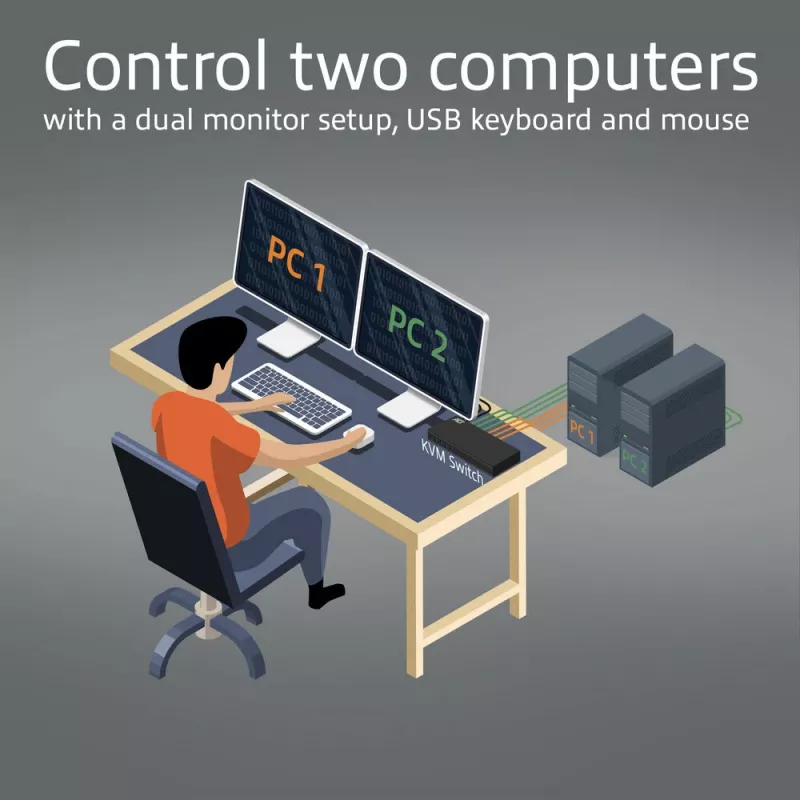

Control two devices with a dual monitor setup, mouse and keyboard
Simplify your workspace by connecting two computers to the AC7914 via HDMI. Connect two HDMI monitors and a single keyboard and mouse set to the switch and control both computers with minimal setup.

Supports up to 4K@60Hz
The AC7914 HDMI KVM switch supports 4K@60Hz, 4:4:4 12-bit, HDMI 2.0 and is HDCP 2.3 compliant. The EDID emulator in the KVM switch provides the correct display information from the monitors to the connected computers.

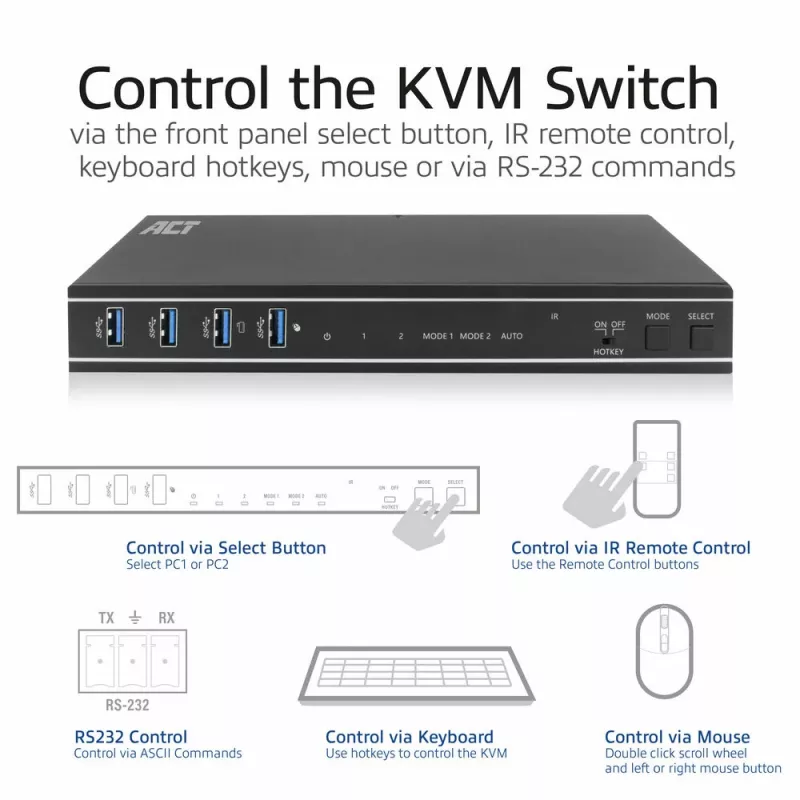

Easy switch between computers
Switching between two connected computers is easy with the dedicated button on the AC7914 KVM switch. Prefer to use IR control, a mouse, keyboard shortcuts, or RS-232 commands? All are supported.

Auto input switching
Have two computers connected to the KVM switch and only one is active? The AC7914 will automatically detect the active device.

Mode functions

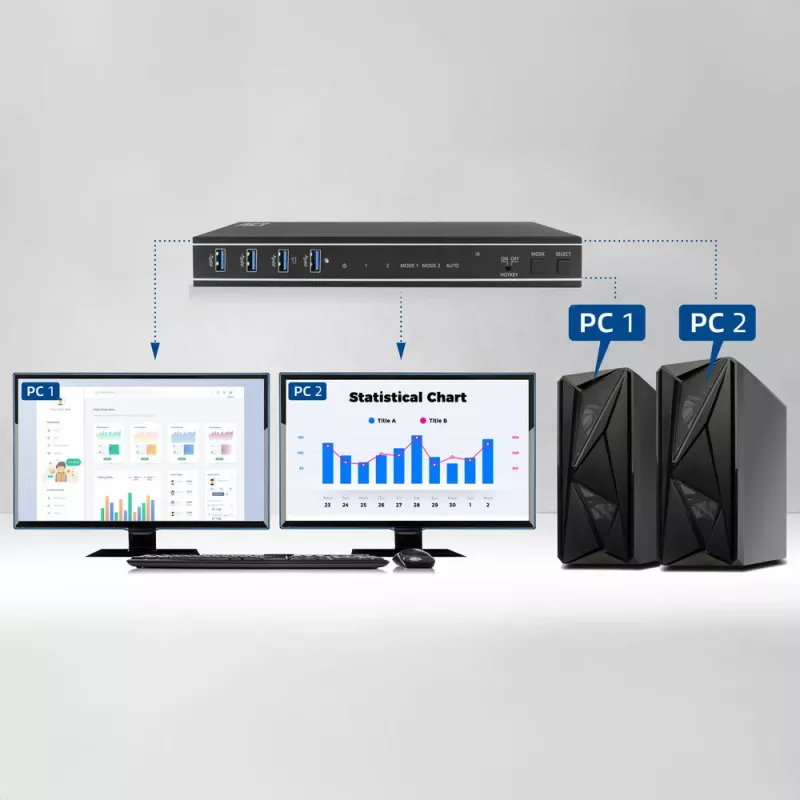

The AC7914 has two modes: Single PC mode and Dual PC mode. In the Single PC Mode, both monitors display the output from either PC 1 or PC 2, with seamless USB device control following the active PC. In Dual PC Mode, each monitor is dedicated to a different PC, allowing you to simultaneously view and manage two computers with ease. Switch effortlessly between modes using the front panel, IR remote, or hotkeys.

Additional features

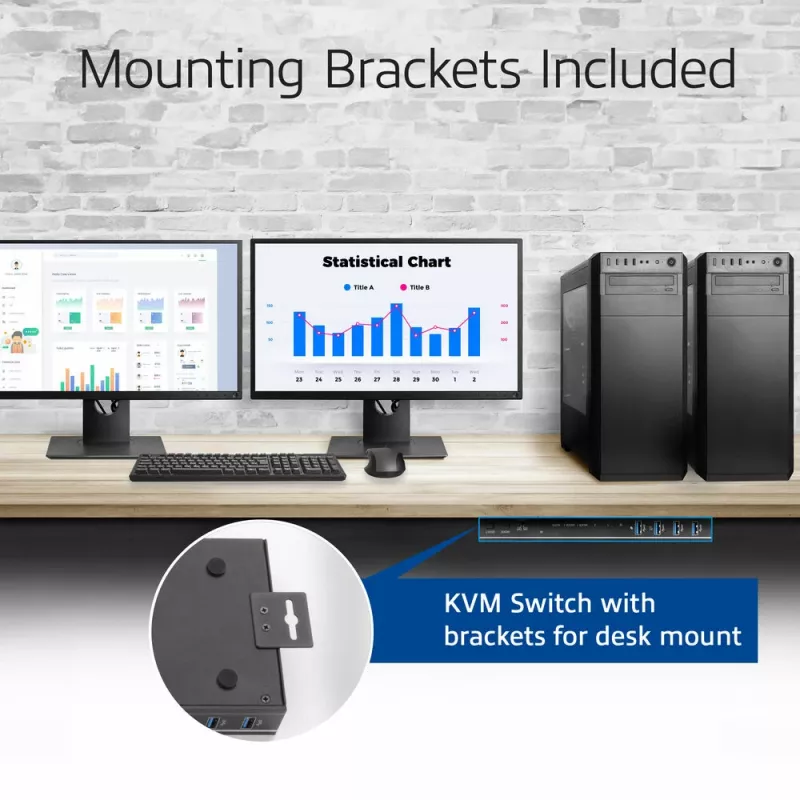

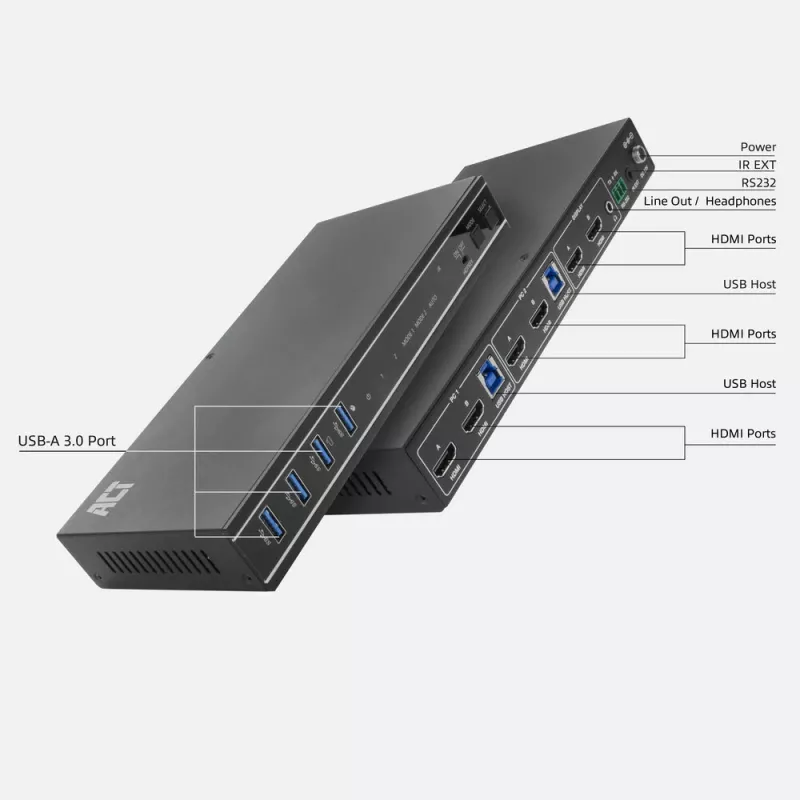

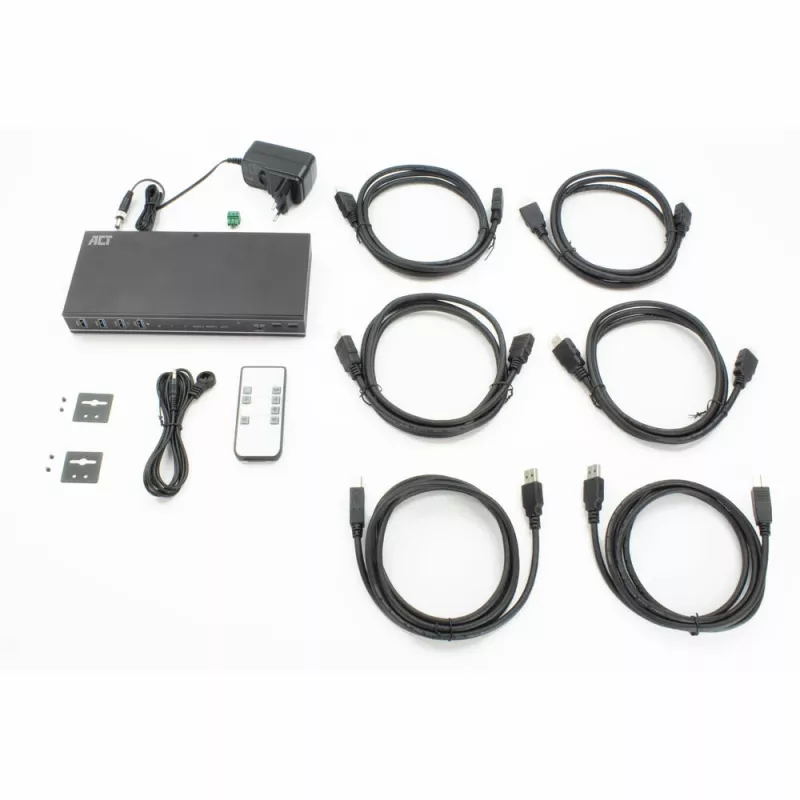

The AC7914 has four USB 3.2 Gen1 (USB 3.0) 5Gbps ports for sharing peripherals such as a keyboard, mouse, printer and more. The switch also has a 3.5mm audio jack for connecting headphones or speakers. HDMI cables, USB cables, remote control, RS-232 connector and mounting brackets are included.

Preventing accidental power cord disconnection

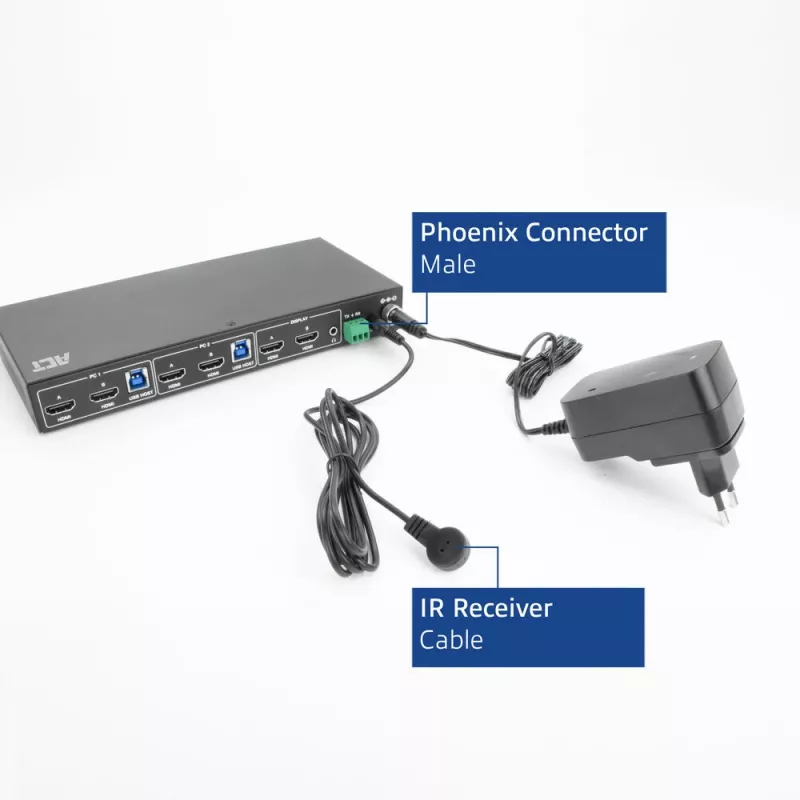

The power connection on the KVM switch is secured with a screw lock to prevent accidental disconnection.

User scenarios
Business use:
Government agencies: Control sensitive systems isolated from the network.
Datacenters and server rooms: Troubleshoot, upgrade and maintain servers.

Home use:
- Home office: easily switch between your personal computer and work laptop using a dual monitor setup and a single mouse and keyboard.
- Gaming: switch between a gaming console/desktop and a personal laptop.

Whether you’re a professional, home user or gamer, this 2-port HDMI KVM switch streamlines your setup while maintaining performance and security.

ACT 2-Port Dual HDMI 4K@60Hz KVM switch, USB 3.2 Gen1 (USB 3.0). Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 5 Gbit/s. Product colour: Black. Power source: DC, Input voltage: 12 V, Input current: 1 A. Package width: 265 mm, Package depth: 91 mm, Package height: 170 mm

How to use

Connect two source computers to the AC7914 via the HDMI input ports and connect two HDMI monitors to the HDMI outputs. Attach a USB keyboard and mouse to the USB ports and plug any additional USB peripherals into the remaining USB 3.2 Gen1 ports. Power the unit with the supplied 12 V DC adapter and secure the power connector with the screw lock. Use the front-panel button, IR remote, keyboard hotkeys, mouse or RS-232 commands to switch between computers or change modes.

Recommendations

For reliable 4K@60Hz performance use high-quality HDMI 2.0 cables and ensure connected monitors support the target resolution and refresh rate. When using Dual PC mode, verify each monitor’s EDID is correctly recognized; the built-in EDID emulator will assist when necessary. Secure the power connector to avoid accidental disconnection during critical tasks.
