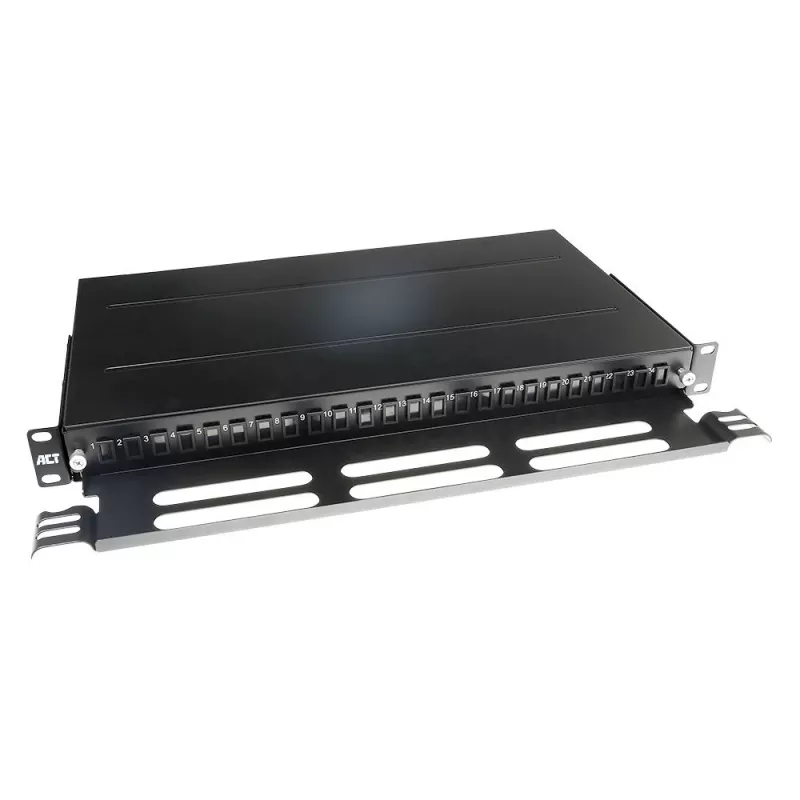

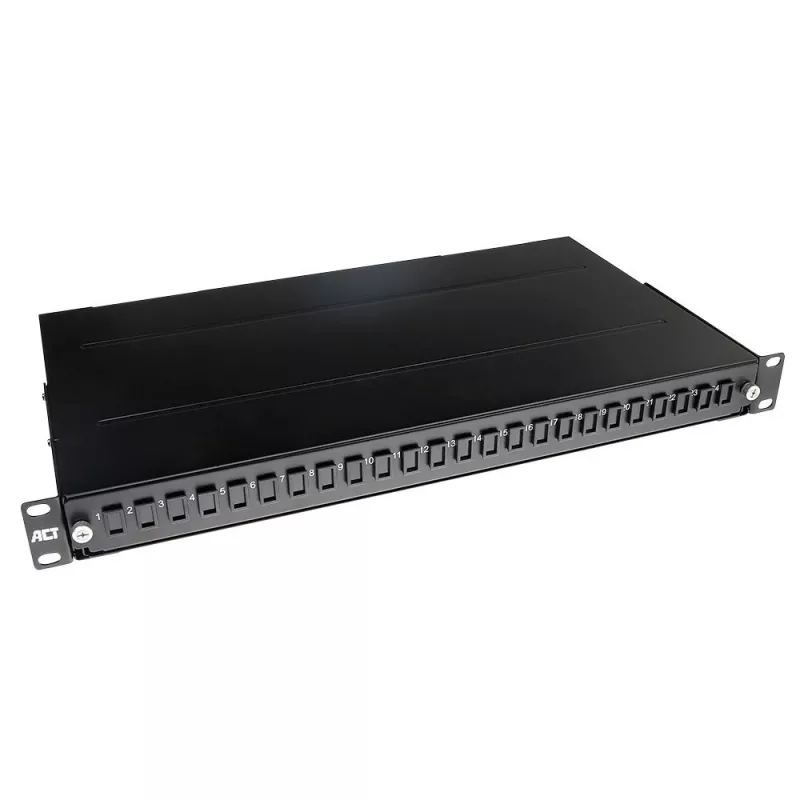

ACT FA2044 optický panel 24 portov neosadený

The ACT Fiber panel FA2044 is a 1U rack-mounted unloaded fiber panel designed to organize and manage up to 24 fiber connections. Constructed from durable SPCC with a black finish and measuring 482.6 mm (W) × 43.6 mm (H) × 265.5 mm (D), it supports LC connector modules and accepts interchangeable blank plates to accommodate a variety of connector types.

Advantages

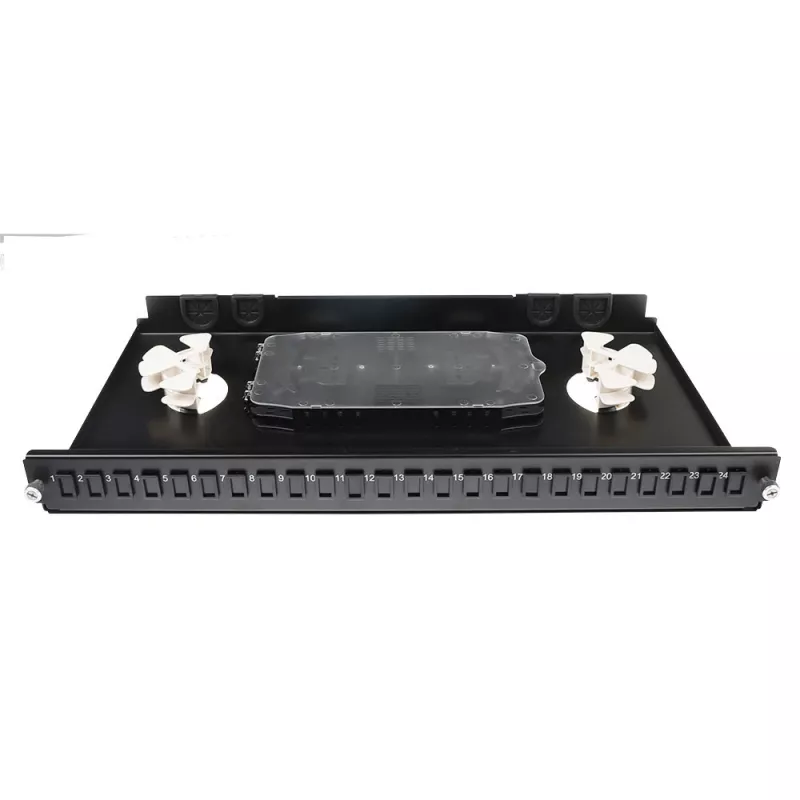

The panel is supplied with 24 blank plates that are replaceable to fit 24× LC(DX), SC(SX), ST(SX) or E2000(DX) modules, allowing flexible connector configuration. It includes two splice cassettes and management spools for organized fiber routing and protection of splices. An extendable tray provides easier access during installation and maintenance, and dual cable-entry options accept PG11 and PG13 cable glands (glands not included).

Suitable for

• Rack-mounted fiber distribution in data centers and server rooms
• Telecom and network installations requiring modular connector configurations
• Environments needing splice protection and orderly cable management

Key specifications

• Model: ACT FA2044
• Ports (unloaded): 24 (blank plates replaceable)
• Supported connector types: LC, SC, ST, E2000 (via replaceable plates)
• Material: SPCC
• Finish: Black
• Dimensions (W×H×D): 482.6 × 43.6 × 265.5 mm
• Included accessories: 24 blank plates, 2 splice cassettes, management spools
• Tray: Extendable

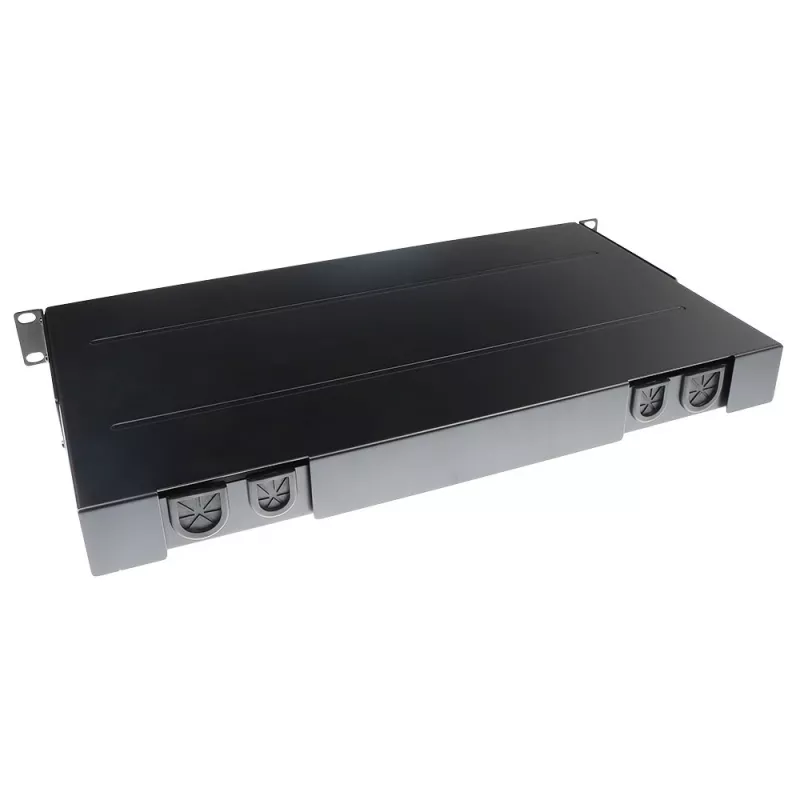

• Cable entry: Two PG11 and two PG13 entries (cable glands not included)

How to use

Mount the FA2044 panel in a standard 19-inch rack occupying 1U of height. Install the appropriate connector modules by replacing the blank plates with the desired LC, SC, ST or E2000 adapter plates. Route fiber cables through the chosen PG11 or PG13 cable entries, secure with suitable cable glands (not included), and organize fibers on the management spools. Place fiber splices into the supplied splice cassettes and close the extendable tray after completing connections to protect fibers and maintain orderly routing.

Recommendations

For reliable performance, use compatible adapter plates and proper cable glands for PG11 or PG13 entries, maintain bend radii within manufacturer limits, and secure fibers on the management spools to prevent strain on connectors and splices.
