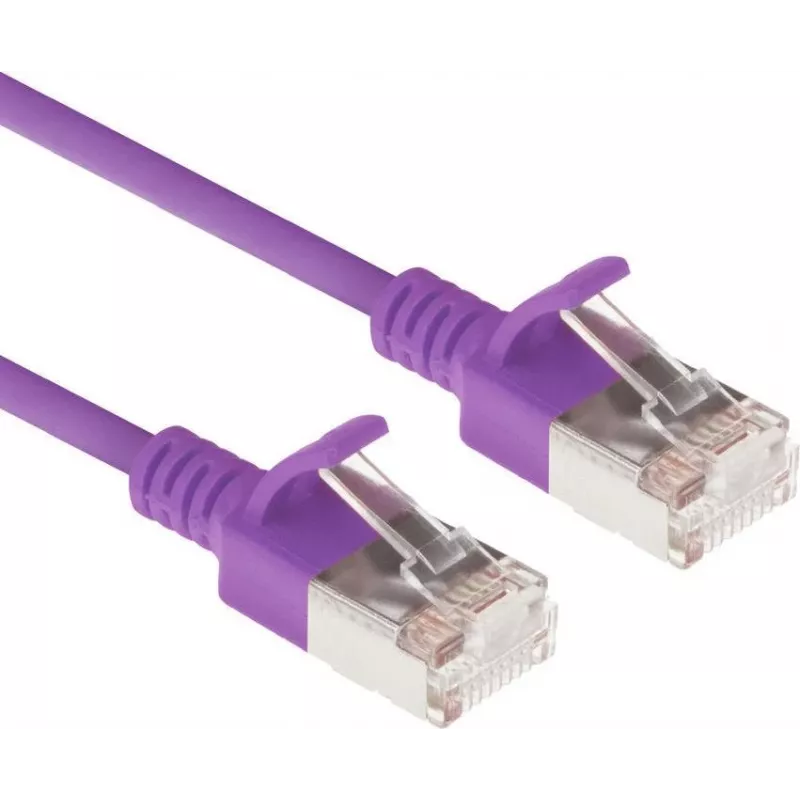

ACT fialový 0,25m LSZH U/FTP CAT6A datacenter slimline patch kábel snagless s RJ45 konektormi (DC7352)

In high-density server rooms, every millimetre of rack space and every gram of cable weight matters. The ACT DC7352 answers with a slimline CAT6A patch cable that pairs a 3.8 mm outer diameter with full 10 Gigabit performance. Its U/FTP construction—unshielded overall with individually foiled twisted pairs—keeps alien crosstalk at bay while remaining flexible enough for tight patching fields. The snagless boot protects the locking tab during frequent moves, and the LSZH jacket ensures low smoke and zero halogen emissions if a fire ever occurs. At just 0.25 m, it is ideal for neat, short links between adjacent ports, patch panels, and switches.

Highlights

• CAT6A performance up to 500 MHz and 10GBASE-T
• U/FTP shielding: foiled pairs for superior crosstalk resistance
• Slimline 3.8 mm diameter saves space in dense racks
• Snagless boot prevents connector damage during installation
• LSZH jacket: low smoke, zero halogen for safer indoor use
• Gold-plated RJ45 contacts for reliable, long-term connectivity
• Stranded 28 AWG bare copper conductors for flexibility
• Compliant with RoHS and CE

In daily use

Technicians will appreciate how easily this cable routes through cable managers and between closely spaced equipment. The snagless design allows it to be pulled through bundles without catching, while the slim profile reduces airflow obstruction in front of active gear. The purple colour provides instant visual identification in colour-coded network environments, helping to separate VLANs, storage networks, or management links at a glance. Whether you are tidying a new cabinet or re-patching an existing one, this cable's short length keeps connections direct and clutter-free.

Full specifications

• Brand: ACT
• Model: DC7352
• MPN: DC7352
• EAN: 8716065510027
• Cable type: Ethernet patch cable
• Ethernet category: CAT6A
• Shielding type: U/FTP (unshielded overall, foiled twisted pairs)
• Length: 0.25 m
• Colour: Purple
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connector type (both ends): RJ45 male
• Connector features: Snagless boot, gold-plated contacts
• Conductor material: Bare copper
• Conductor gauge: 28 AWG
• Cable construction: Stranded
• Wiring standard: TIA/EIA-568B
• Bandwidth: Up to 500 MHz
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Outer diameter: Approx. 3.8 mm
• Flame retardancy: IEC 60332-1
• Impedance: 100 Ohm
• Compliance: RoHS, CE
• Applications: Datacenter, server rooms, network cabinets, high-density environments

Final note

The ACT DC7352 proves that short, slim, and safe can coexist with high-speed performance. For professionals who demand clean racks and reliable 10G links, this cable is an easy choice.
