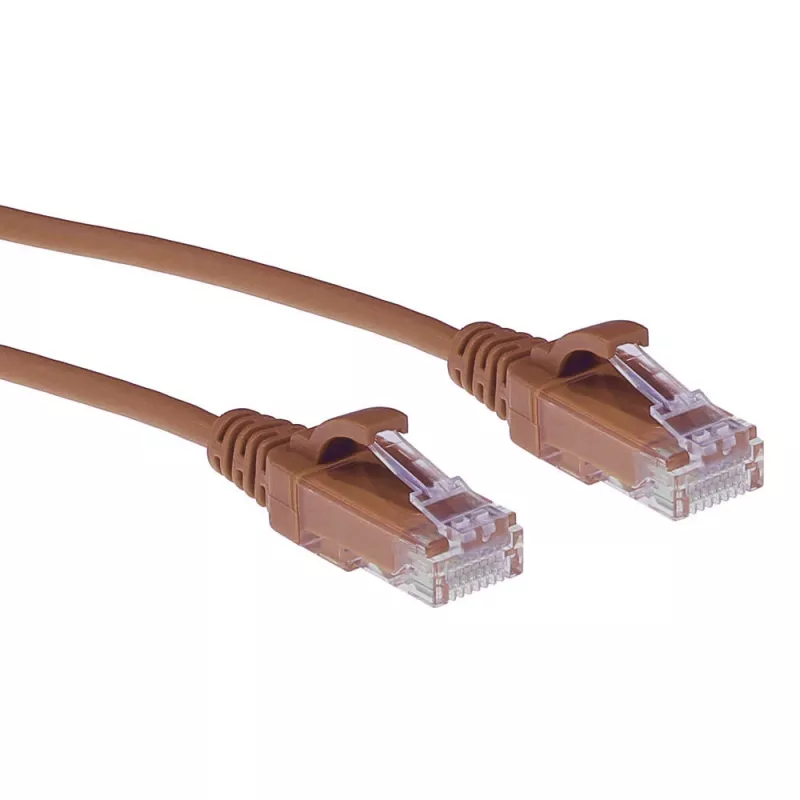

ACT hnedý 7 m LSZH U/UTP CAT6 Datacenter Slimline patch kábel s ochranou západky, RJ45 konektor

The ACT Brown 7 meter LSZH U/UTP CAT6 datacenter slimline patch cable with snagless RJ45 connectors is a slim-diameter (3.8 mm) CAT6 cable designed for datacenter and network cabinet use. Its reduced diameter and smaller bending radius improve airflow in racks compared with regular CAT6 patch cords. The cable uses U/UTP construction, supports high-speed data transmission over 7 m and features LSZH sheath for low smoke emission; connectors are snagless RJ45 with gold-plated contacts for reliable connections.

Advantages

The slimline design reduces cable bulk and improves rack airflow while maintaining CAT6 performance over 7 m. LSZH material minimises smoke and toxic gas emission in case of fire. Snagless RJ45 connectors protect the latch during installation and gold-plated contacts provide corrosion resistance and stable signal transfer. Using 28 AWG conductor diameter allows a thinner cable profile suitable for high-density deployments.

Suitable for

• Datacenter patching and horizontal cabling in server racks
• High-density network cabinets and constrained cable channels
• Short runs between switches, patch panels and servers (up to 7 m)
• Environments where low-smoke LSZH materials are required

Key specifications

• Standard: CAT6 (U/UTP)
• Length: 7 m
• Cable diameter: approx. 3.8 mm (slimline)
• Conductor gauge: 28 AWG (higher attenuation than 22–26 AWG at high frequencies)
• Connectors: RJ45 — snagless, gold-plated contacts
• Sheath: LSZH (low smoke zero halogen)
• Colour: Brown
• Brand / MPN / EAN: ACT / DC9207 / 8716065510478

How to use

Install the cable between RJ45 ports on switches, patch panels and servers. Route the slimline cable through cable managers and trays to benefit from the reduced bending radius and improved airflow in racks. Ensure connectors are fully inserted until the latch clicks; the snagless design protects the latch during routing and handling. For best signal integrity, avoid excessive kinking and maintain recommended bend radius where possible.

Recommendations

For Power over Ethernet (PoE) deployments, limit bundled cable groups to a maximum of 24 slimline cables to avoid excessive heat buildup; this follows ACT guidance and aligns with ANSI TSB-184-A which limits the center-cable temperature rise to less than 15 °C above ambient. Be aware that 28 AWG conductors exhibit higher attenuation at higher frequencies compared with 22–26 AWG, so use these slimline cables primarily for short runs within racks and cabinets.
