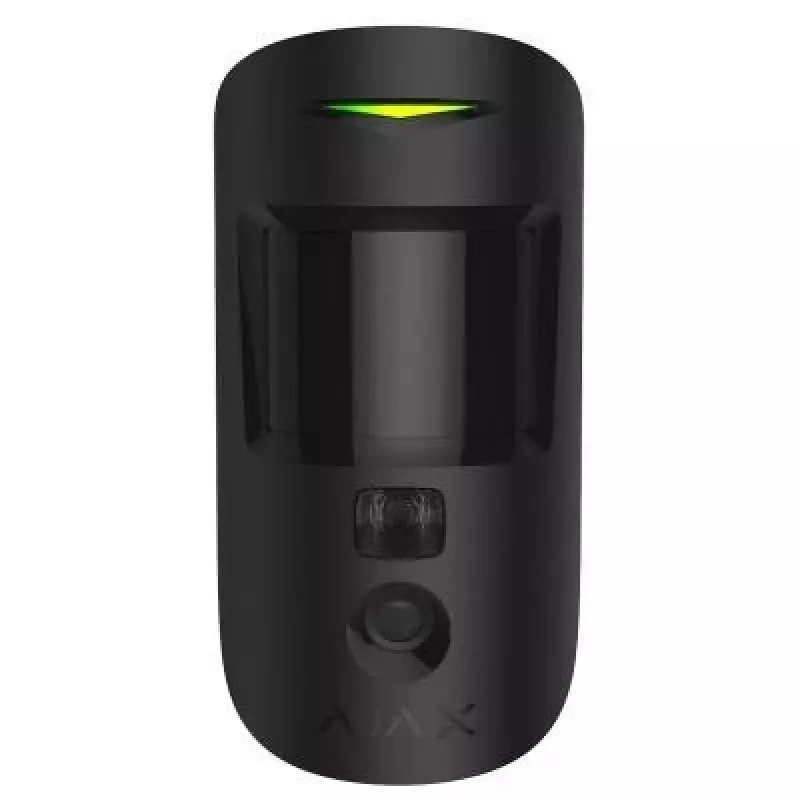

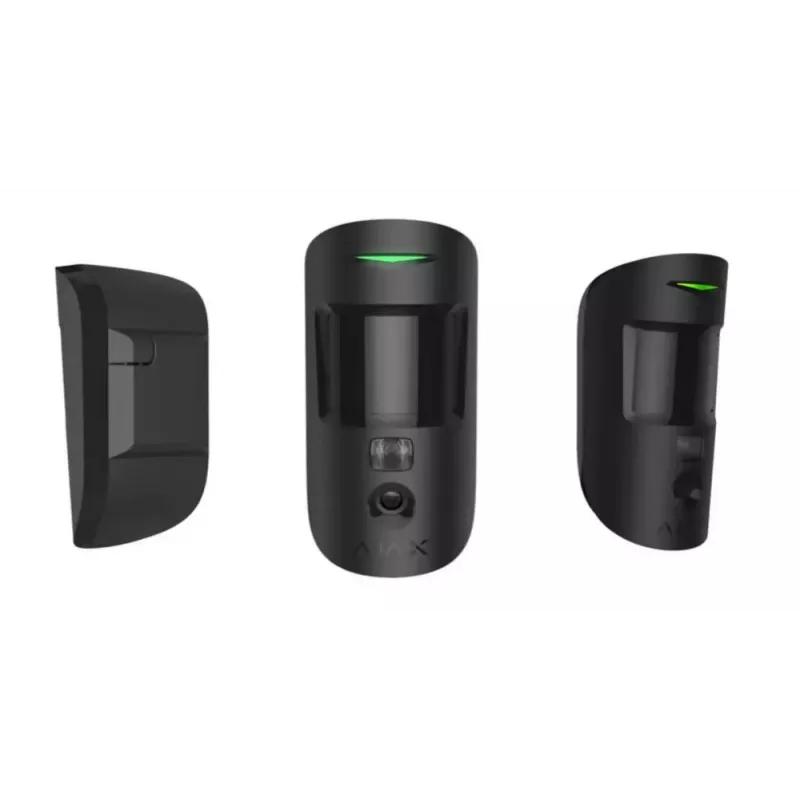

AJAX MotionCam HD bezdrôtový detektor pohybu s kamerou, čierny (PHOD 118275)

The AJAX MotionCam HD is a wireless motion detector with a built-in camera for photo verification of alarms. Designed for indoor use, it combines a PIR sensor with a VGA camera to capture up to 5 photos per alarm, reducing false alarms and providing visual confirmation. The detector communicates via Jeweller and Wings protocols for reliable alarm and photo transmission up to 1700 meters in open space. Powered by two CR123A batteries with up to 4 years of battery life, it offers pet immunity up to 50 cm height and 20 kg weight. Compatible with Ajax Hub 2, Hub 2 Plus, and Hub 2 (4G).

Advantages

Photo verification with up to 5 photos per alarm eliminates false alarms. Long wireless range up to 1700 meters ensures reliable communication. Pet immunity prevents false triggers from pets up to 20 kg. Easy installation with recommended mounting height of 2.4 meters. Tamper protection against opening and removal.

Suitable for

• Residential and commercial indoor security systems
• Areas requiring visual alarm verification
• Integration with Ajax security systems

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Camera: Built-in, VGA resolution (640x480 pixels)
• Photo Series per Alarm: Up to 5 photos
• Detection Distance: Up to 12 meters
• Horizontal Detection Angle: 88.5°
• Vertical Detection Angle: 80°
• Pet Immunity: Up to 50 cm height, 20 kg weight
• Wireless Communication: Jeweller (alarms), Wings (photo transmission)
• Wireless Range: Up to 1700 meters (open space)
• Power Supply: 2x CR123A batteries
• Battery Life: Up to 4 years
• Installation Environment: Indoor
• Operating Temperature: -10°C to +40°C
• Operating Humidity: Up to 75%
• Tamper Protection: Yes (against opening and removal)
• Compatibility: Ajax Hub 2, Hub 2 Plus, Hub 2 (4G)
• Color: Black
• Recommended Mounting Height: 2.4 meters

Recommendations

For optimal performance, mount the detector at 2.4 meters height and ensure the hub is within wireless range. Use only CR123A batteries. Test the system after installation.
