Akyga AK-EC-19 Nabíjačka pre elektromobily typ 2 LCD 1-fázová 16A 3,8kW 5m

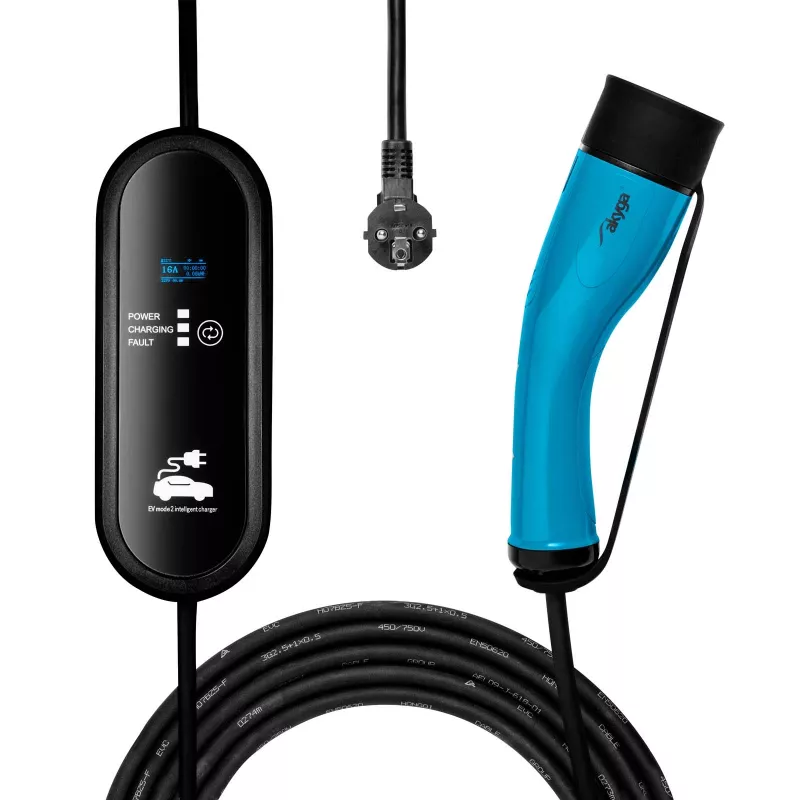

The Akyga AK-EC-19 is a portable EV charger with a Type 2 (IEC 62196-2) female connector and a CEE 7/7 plug. It features a ControlBox with an LCD screen that displays charging current, voltage, energy consumed, charger temperature and charging time. The charger offers selectable charging currents of 8 A, 10 A, 13 A and 16 A.

Key features

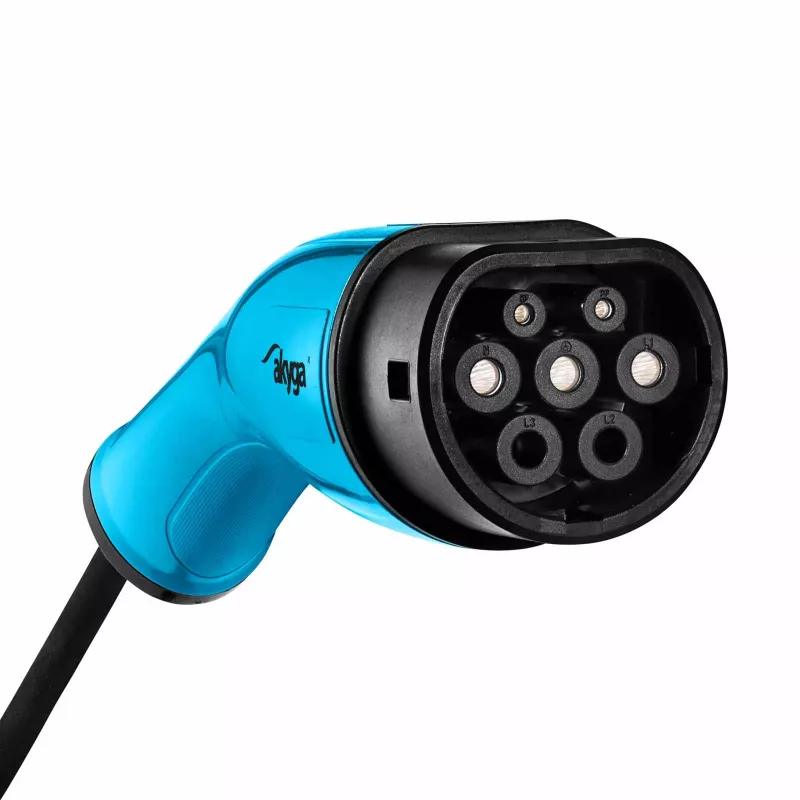

• Compatible with IEC 62196-2 Type 2 socket (Mennekes)

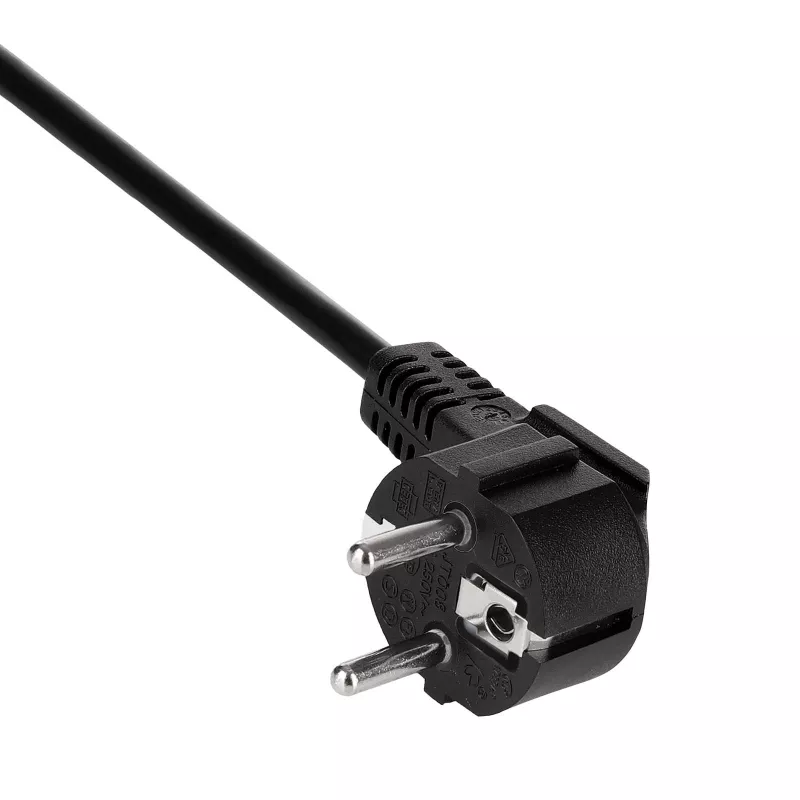

• Schuko plug (CEE 7/7) for home charging
• 5-metre cable

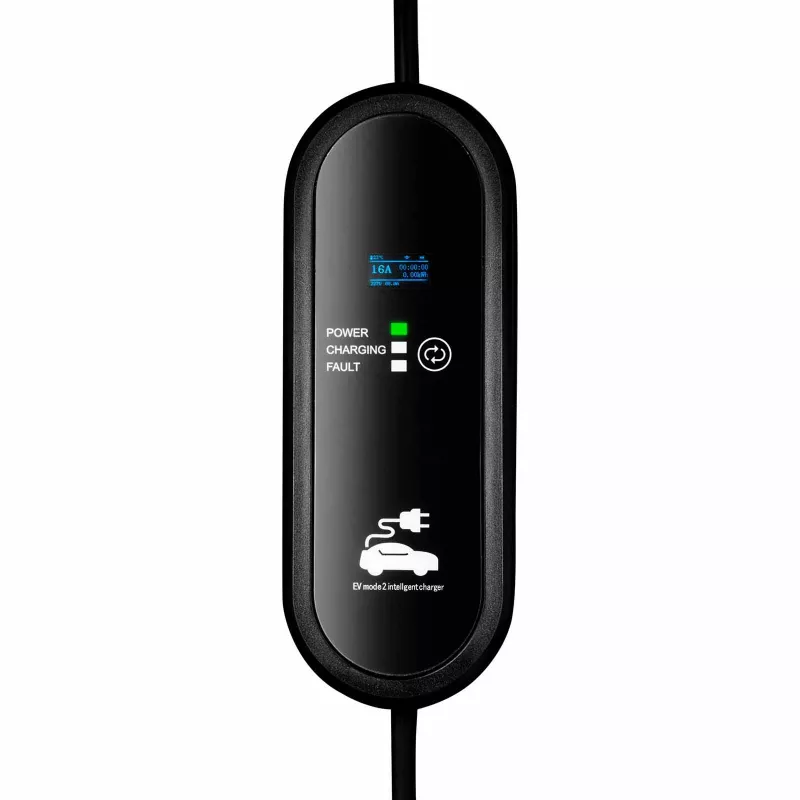

• LCD screen showing charging current, voltage, energy consumed, charger temperature and charging time
• Selectable charging currents: 8 A, 10 A, 13 A, 16 A
• IP54 rating
• Integrated protections: OVP, OCP, OPP, OTP, SCP

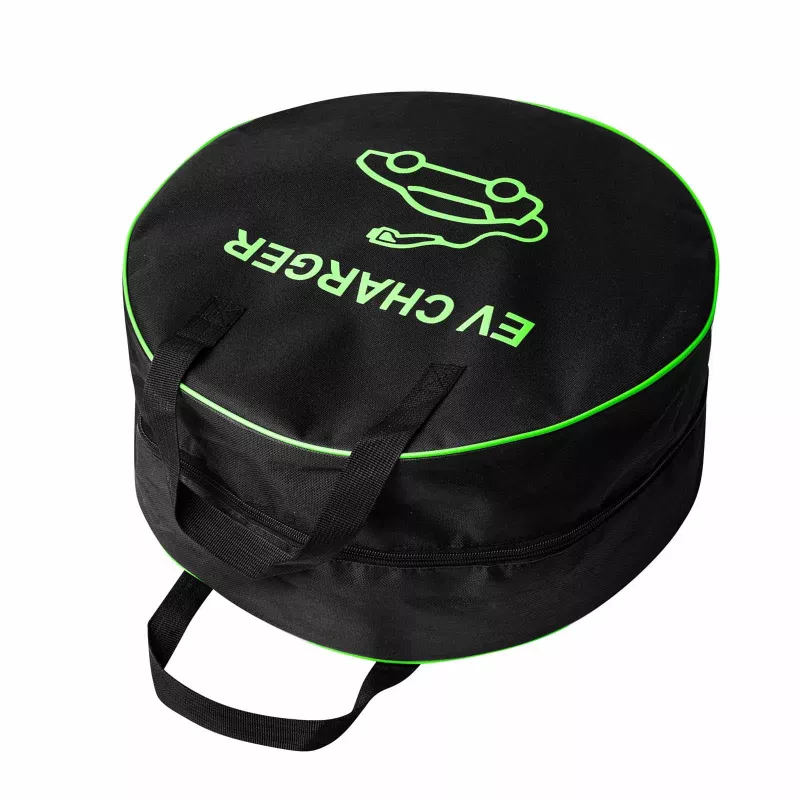

• Protective bag included

Specifications

• Brand: Akyga
• Product code: AK-EC-19
• Product type: Electric Car Accessory
• Supply voltage: 110-250 V / 50/60 Hz
• Number of phases: 1 phase
• Maximum current: 16 A
• Maximum power: 3.8 kW
• Ground wire: Yes
• Flame resistance: UL94V-0
• IP rating: IP54
• OVP: Yes
• OCP: Yes
• OPP: Yes
• OTP: Yes
• SCP: Yes
• Cable length: 5 m
• Cable plug #1: CEE 7/7
• Cable plug #2: Type 2 (IEC 62196-2) Female Connector
• Plated plugs: Silver
• Wire gauge: 3 x 2.5 mm2 + 1 x 0.5 mm2
• Isolation material: TPE
• Material: ABS
• Product color: Blue
• Display: Yes
• MTBF: 10000 h
• Temperature: -30 / +50 °C
• Package: EcoBox
• Product size (L x W x H): 390 x 390 x 90 mm
• Net weight: 1.8 kg
• CE compatibility: Yes
• FCC compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• Included accessories: Protective bag
• EAN code: 5901720139450
