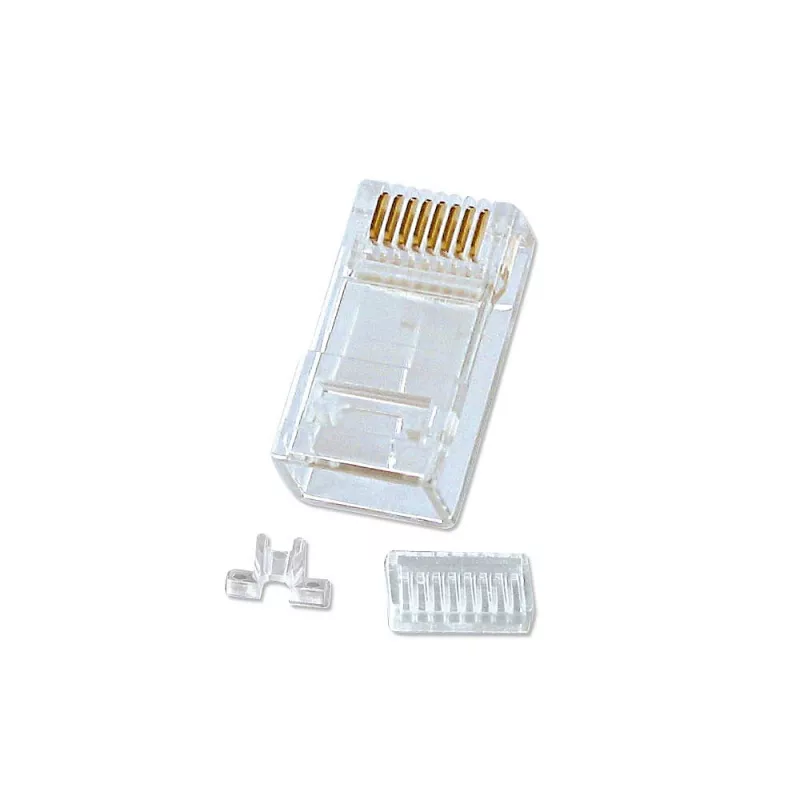

Lindy Nen tienený konektor RJ-45 samec, 8 pin CAT6, balenie 10 ks

Lindy unshielded RJ-45 male connectors for CAT6 networks, supplied in a pack of 10 transparent plugs. Each connector has an 8-pin RJ-45 interface with gold-plated contacts (1.27 µm) and an insertion aid to simplify cable termination. The connectors are suitable for crimping both rigid (solid) and flexible (stranded) cables, and optional cable bend protection boots are available in black or grey.

Advantages

Gold-plated contacts (1.27 µm) provide corrosion resistance and stable signal transmission. Transparent housings allow visual inspection of conductor order during assembly. The included insertion aid speeds up termination and reduces wiring errors. Compatible with both solid and stranded CAT6 cables, these connectors deliver reliable mechanical and electrical performance for typical network cabling tasks.

Suitable for

• Terminating CAT6 solid (rigid) cables
• Terminating CAT6 stranded (flexible) cables
• Small-scale network installations and repairs
• Custom patch leads and on-site cable assemblies

Key specifications

• Connector type: RJ-45, 8-pin, Cat.6
• Contact plating: Gold, 1.27 µm
• Colour: Transparent
• Pack size: 10 pieces
• Suitable cable types: Solid and stranded
• Accessory: Insertion aid included; boots available separately in Black or Grey

How to use

Strip the cable sheath to expose the eight conductors and arrange them in the required T568A or T568B order. Use the insertion aid to seat the conductors fully into the connector until each wire reaches its contact. Crimp the connector with a compatible RJ-45 crimping tool designed for Cat6 plugs, ensuring a firm mechanical and electrical connection. Optionally fit a cable bend protection boot to the terminated plug to protect the cable exit point.

Recommendations

Use a quality Cat6-rated crimping tool and test each terminated cable with a network tester to verify continuity and performance. Choose the correct wiring standard (T568A or T568B) consistently across your installation. If working with stranded cables, verify the connector's compatibility with stranded conductors before crimping.
