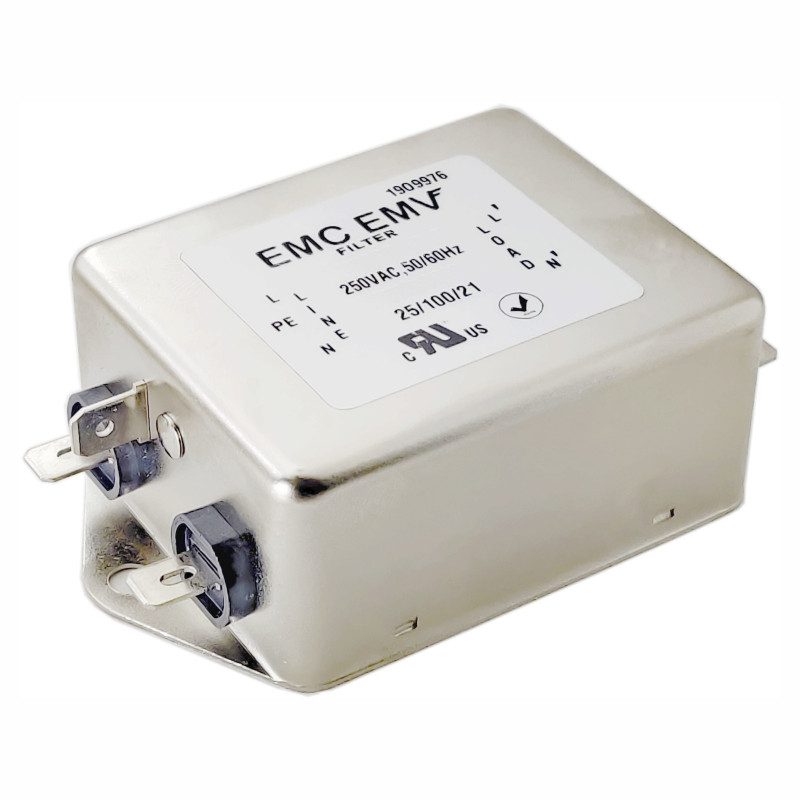

Akyga EN2060-3-F jednofázový EMV sieťový filter 3 A, 120–250 V AC, 50/60 Hz, konektory 6,3 mm

The Akyga EN2060-3-F is a single-phase EMI filter designed to protect electronic equipment from electromagnetic interference. With a maximum working current of 3 A and 6.3 mm connectors, it is suitable for automation systems, measuring devices, medical apparatus, and office equipment. Its metal housing provides effective shielding and resistance to harsh environmental conditions.

Key features

• Maximum working current: 3 A
• 6.3 mm connectors
• Metal housing for effective interference shielding
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Operating temperature: -25°C to +100°C
• CE, RoHS, and REACH compliant

Specifications

• Brand: Akyga
• MPN: EN2060-3-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 3 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature range: -25°C to +100°C
• Product size (L x W x H): 73 x 45 x 29 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138705
