GoodConnections GC IC01-24H02 HDMI priechodka konektor, IP67, panelová montáž, konektor samica-samica

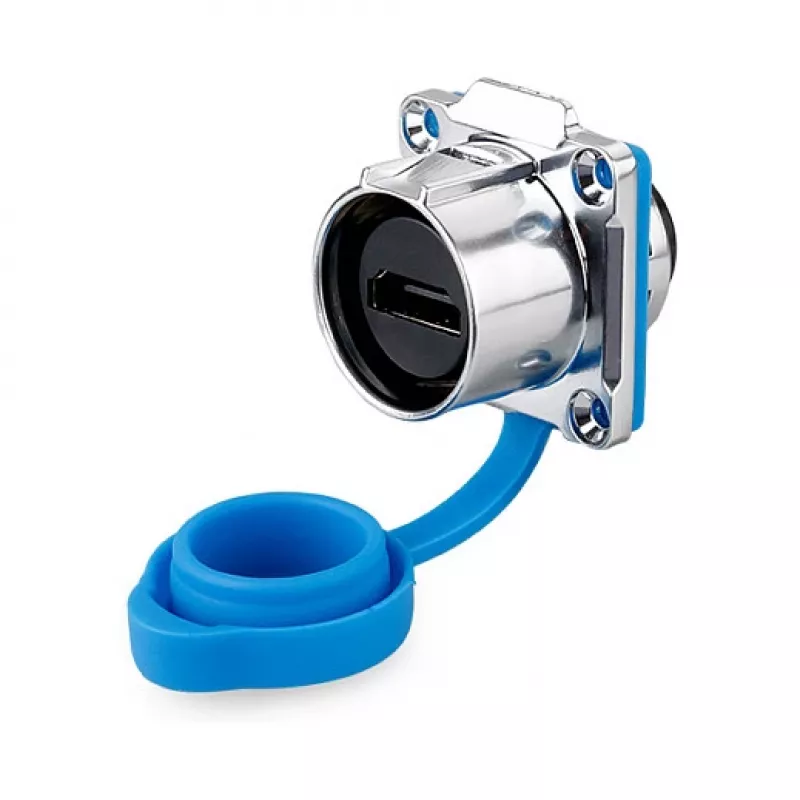

The GoodConnections GC IC01-24H02 is a robust HDMI feed-through coupler designed for industrial, marine, and outdoor applications. With an IP67 rating, it provides dust-tight and temporary immersion protection, ensuring reliable signal transmission in harsh environments. This panel-mount coupler features a nickel-plated brass and PBT plastic housing, gold-plated contacts, and supports HDMI 1.4 with resolutions up to 4K@30Hz.

Advantages

IP67 rated for dust and water resistance, ideal for demanding conditions. Gold-plated contacts ensure corrosion resistance and stable signal integrity. Easy solderless pass-through termination simplifies installation. Compatible with standard HDMI cables, offering a secure connection via M24 thread panel cutout.

Suitable for

• Industrial automation and control systems
• Marine and outdoor digital signage
• Security camera systems in harsh environments
• Audio/visual installations requiring rugged connectivity

Key specifications

• Connector Type: HDMI Type A Female to Female (Coupler)
• Mounting: Panel Mount / Feed-Through (M24 x 1.0 mm thread)
• IP Rating: IP67
• Housing Material: Nickel-plated Brass / PBT Plastic
• Contact Plating: Gold-plated
• HDMI Standard: HDMI 1.4 (backward compatible)
• Max Resolution: 4K@30Hz (3840x2160)
• Max Data Rate: 10.2 Gbps
• Audio Support: Yes
• Operating Temperature: -20°C to +80°C
• Mating Cycles: ≥ 500
• Color: Black / Silver
• Standards: RoHS, CE

Recommendations

For optimal performance, use with high-quality HDMI cables and ensure proper panel sealing to maintain IP67 integrity. Suitable for both indoor and outdoor installations where moisture and dust are concerns.
