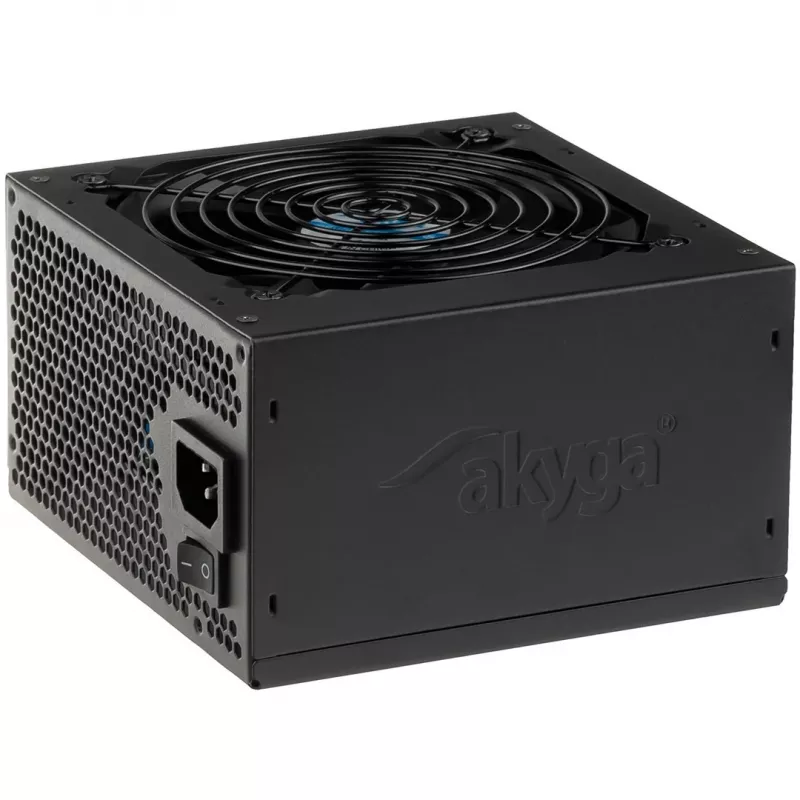

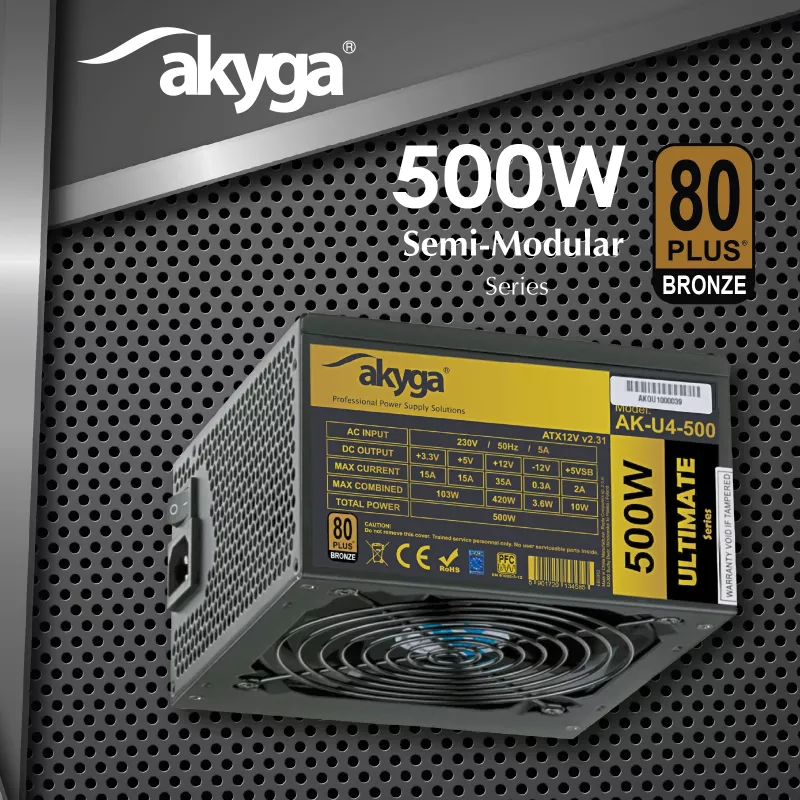

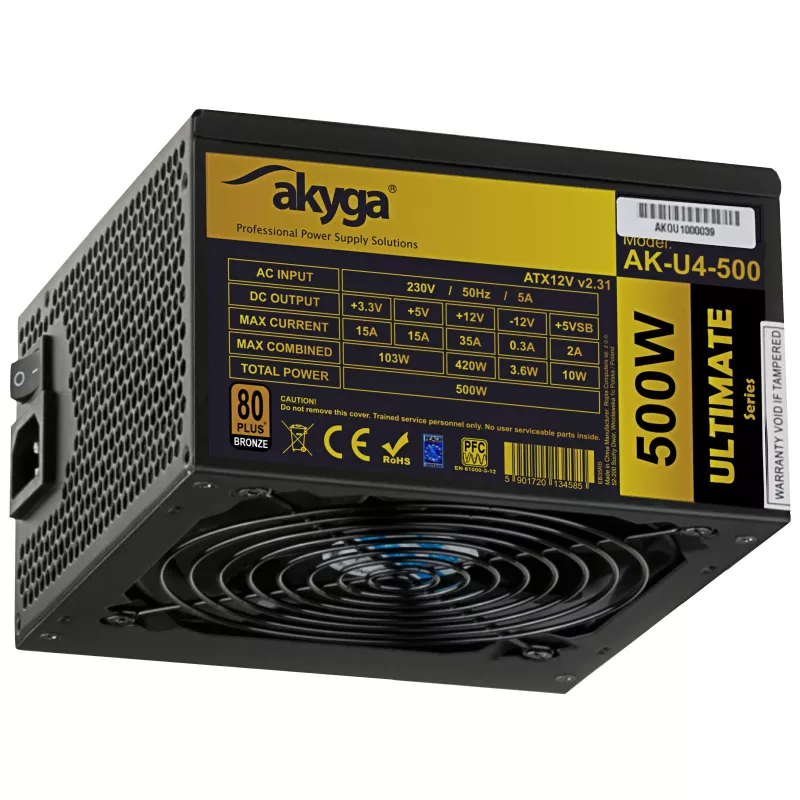

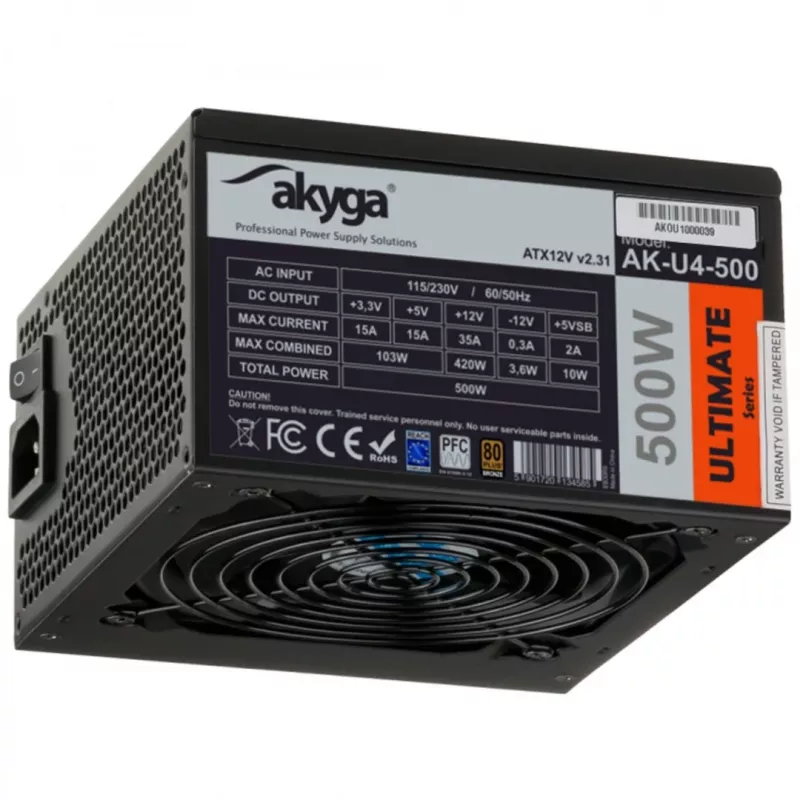

Akyga Ultimate AK-U4-500 ATX napájací zdroj 500 W, 80 PLUS Bronze, aktívne PFC, 120-mm ventilátor

The Akyga Ultimate AK-U4-500 is a 500 W ATX power supply unit with 80 PLUS Bronze certification and active PFC. It features a 120 mm fan and a manual on/off switch, and is compatible with the ATX 2.31 standard.

Key features

• 500 W total power
• 80 PLUS Bronze certified
• Active Power Factor Correction (PFC)
• 120 mm fan
• Manual on/off switch
• Non-modular cabling
• ATX 2.31 compliant
• Protection features: OVP, OCP, OPP, OTP, SCP, UVP

Specifications

• Form factor: ATX
• Total power: 500 W
• AC input voltage: 230 V
• AC input frequency: 50 Hz
• Max output current (+12V): 35 A

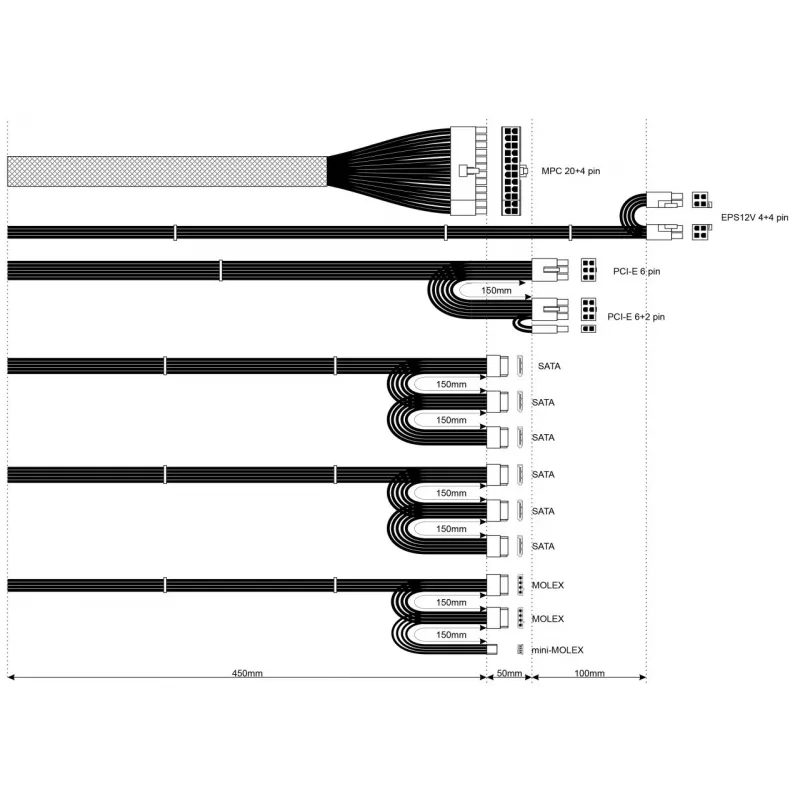

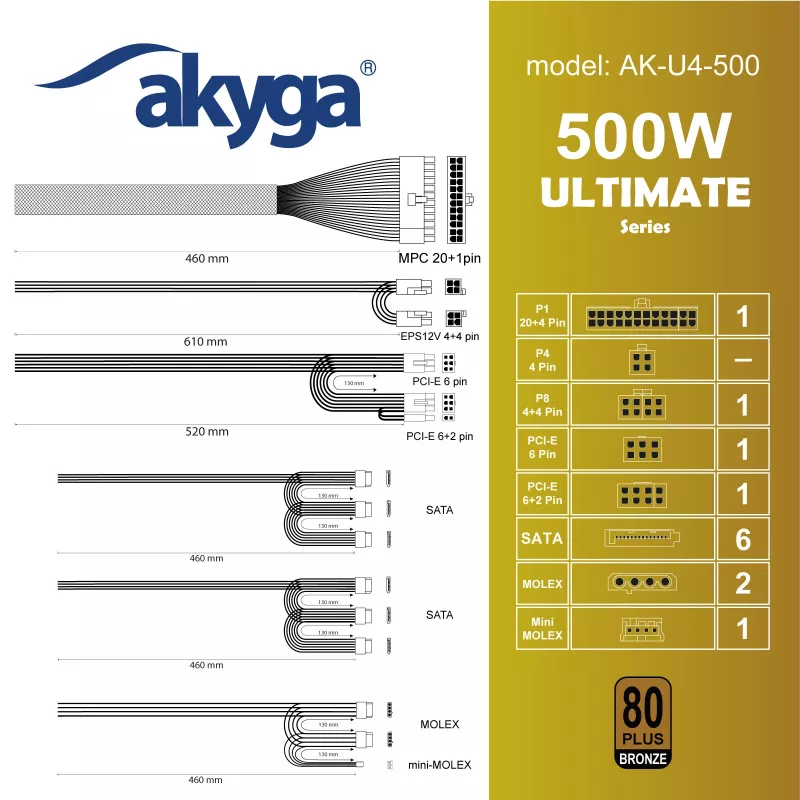

• Motherboard power connector: 24-pin
• EPS power connector (8-pin): 1x 4+4-pin
• PCI Express power connectors (6+2 pin): 1
• PCI Express power connectors (6-pin): 1
• Number of SATA power connectors: 6
• Peripheral (Molex) power connectors (4-pin): 2
• Fan diameter: 120 mm
• Mean time between failures (MTBF): 100000 h
• Compliance certificates: CE, RoHS
• Weight: 1.26 kg
