Alcad AL-223 VHF-UHF širokopásmový zosilňovač 1 vstup 2 výstupy

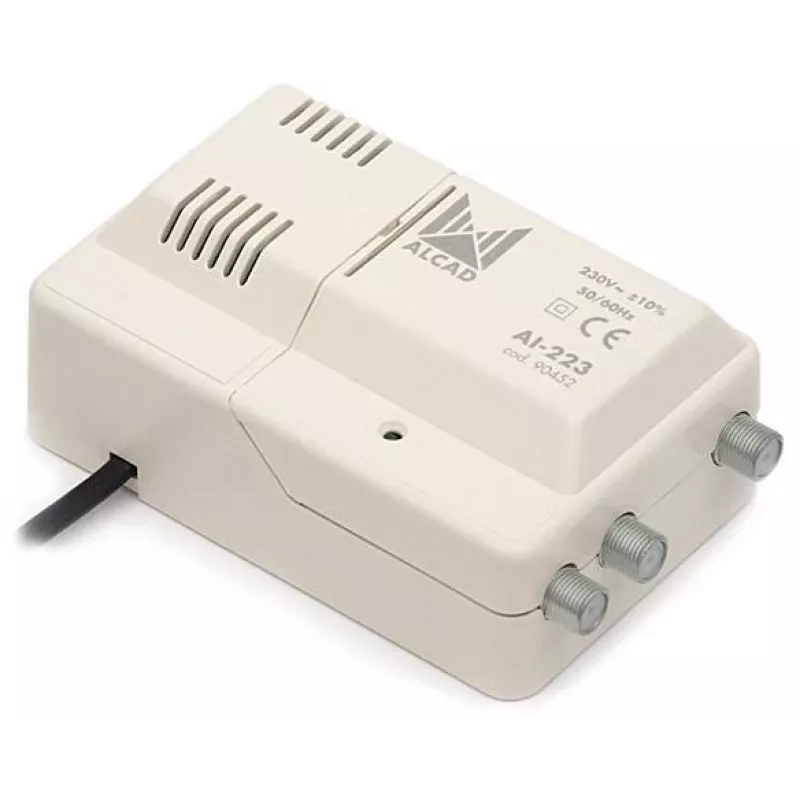

The Alcad AL-223 is a high-performance broadband amplifier designed for VHF and UHF TV signals. It features one mixed input and two outputs, making it ideal for distributing TV signals to multiple devices in indoor environments. With a gain of 20 dB on both VHF and UHF bands and an adjustable gain range of 0-15 dB, this amplifier ensures optimal signal strength for clear reception.

Advantages

Reliable signal amplification with low noise figure of 5 dB ensures minimal signal degradation. The adjustable gain allows fine-tuning to match specific installation requirements. F-type connectors provide secure and easy connections.

Suitable for

• Home TV signal distribution
• Small office or apartment buildings
• Indoor antenna systems

Key specifications

• Frequency Range: VHF 47-400 MHz, UHF 470-862 MHz
• Gain: 20 dB (VHF and UHF)
• Gain Adjustment: 0-15 dB
• Number of Inputs: 1 (Mixed)
• Number of Outputs: 2
• Maximum Output Level: 105 dBµV
• Noise Figure: 5 dB
• Power Supply: 230 V AC, 50/60 Hz
• Power Consumption: 3.5 W
• Connector Type: F-type
• Return Loss: >10 dB
• Isolation Between Outputs: >10 dB
• Application: Indoor

Recommendations

For best performance, use high-quality coaxial cables and ensure proper grounding. This amplifier is suitable for indoor use only.
