ALLNET 100G QSFP28 Direct Attach kábel 0,5m ALL4787-0,5

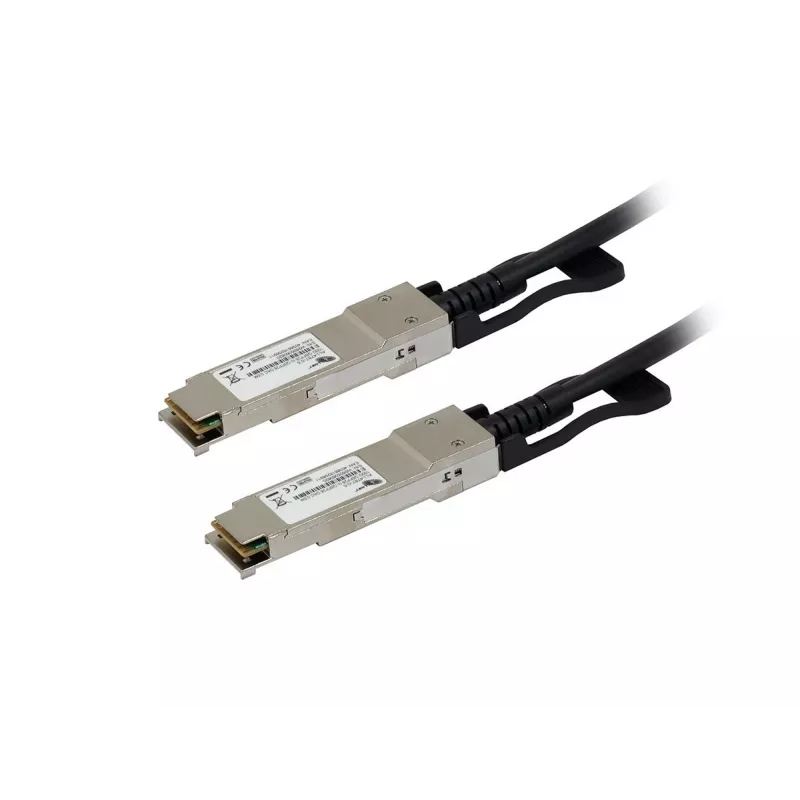

High-density data centers and high-performance computing clusters demand reliable, low-latency connectivity between switches, servers, and storage. The ALLNET ALL4787-0,5 is a 0.5-meter QSFP28 to QSFP28 Direct Attach Cable (DAC) that delivers 100 Gigabit Ethernet over passive copper twinax, eliminating the need for separate optical transceivers and reducing both cost and power consumption.

Who is it for

Network architects and data center operators who need short-reach, high-bandwidth interconnects within racks or between adjacent racks. Ideal for spine-leaf architectures, top-of-rack switching, and high-frequency trading platforms where every watt and microsecond counts.

Main features

• 100 Gbps data transfer rate per IEEE 802.3bj 100GBASE-CR4
• QSFP28 connectors on both ends, compliant with SFF-8665 MSA
• Passive twinax copper cable, 0.5 meters in length
• Hot-swappable for easy installation and maintenance
• Ultra-low power consumption: less than 0.5 W
• Operating temperature range: 0°C to 70°C

Specifications

• Brand: ALLNET
• Model: ALL4787-0,5
• MPN: ALL4787-0,5
• EAN: 4038816256911
• Cable type: Direct Attach Cable (DAC)
• Cable material: Copper
• Connector A: QSFP28
• Connector B: QSFP28
• Data rate: 100 Gbps
• Length: 0.5 m
• Design: Passive Twinax
• Compliance: SFF-8665 (QSFP28 MSA)
• Power consumption: < 0.5 W
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C

Tips

For best performance, ensure both devices support QSFP28 ports and 100G Ethernet. Use within the specified temperature range and avoid sharp bends to maintain signal integrity.
