ALLNET 19 palcový nástenný rozvádzač 4U 1-dielny 594x541mm svetlosivá séria SMQ

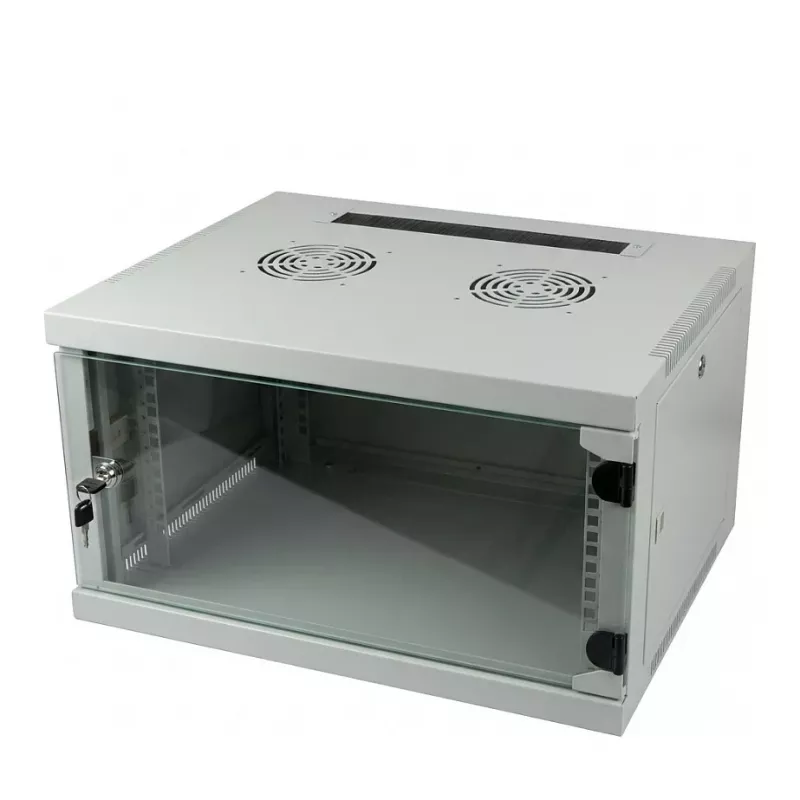

The ALLNET SMQ-Series wall-mount network cabinet offers a robust and secure housing for your 19-inch network equipment. With a 4U height and single-piece construction, it is ideal for small to medium-sized installations where space is at a premium. The cabinet is made from high-quality steel with a light grey (RAL 7035) powder-coated finish, ensuring durability and a professional appearance.

Advantages

This cabinet provides excellent protection for your active and passive network components. The tempered glass front door allows for easy monitoring of equipment status while maintaining security with a lockable door. Cable management is simplified with top and bottom cable entries equipped with brush strips, and the adjustable mounting rails offer flexibility for different device depths.

Suitable for

• Network switches, patch panels, and routers
• Small server rooms, offices, and retail environments
• Wall-mounted installations where floor space is limited

Key specifications

• Rack height: 4U, 19-inch width
• External dimensions: 594 mm depth, 541 mm width, 230 mm height
• Material: Steel, powder coated, light grey (RAL 7035)
• Front door: Tempered glass with lock and key
• Side panels: Fixed
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive with fan-ready cutouts
• Max. load capacity: 60 kg
• Protection class: IP20
• Included accessories: 2 keys, mounting material

Recommendations

For optimal cable management, use with ALLNET patch panels and cable management accessories. Ensure adequate ventilation if installing high-power equipment.
