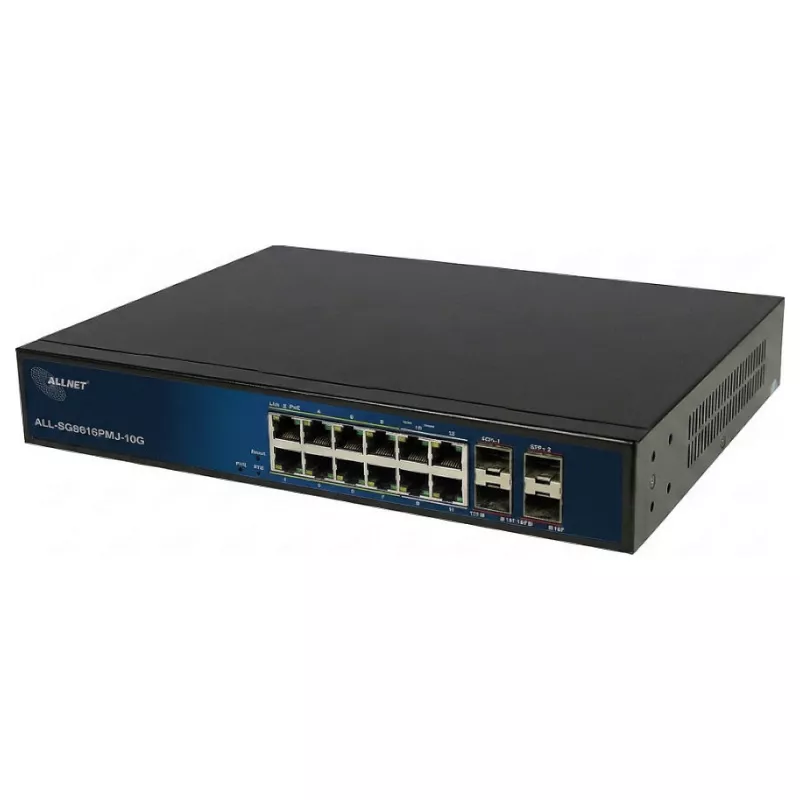

ALLNET ALL-SG8616PMJ-10G Layer 2+ Managed Switch, 16 portov (12x GbE, 4x SFP+), PoE rozpočet 130W, 8x PoE+, Rackmount

The ALLNET ALL-SG8616PMJ-10G is a full managed Layer 2+ switch designed for small to medium businesses and enterprise edge networks. It offers 16 network ports including 12 Gigabit Ethernet RJ45 ports (8 with PoE+ support) and 4 10 Gigabit SFP+ uplink ports, providing a total switching capacity of 104 Gbps. With a PoE budget of 130W, it can power devices such as IP cameras, VoIP phones, and wireless access points directly through the Ethernet cables, simplifying installation and reducing cable clutter.

Advantages

This switch delivers high performance and reliability with advanced management features including VLAN, QoS, and security protocols. Its 19-inch rackmount design allows for easy integration into standard server racks. The smart fan control ensures quiet operation while maintaining optimal thermal performance.

Suitable for

• Small to medium business networks requiring PoE for IP cameras, VoIP phones, or access points
• Enterprise edge deployments needing 10G uplinks for high-bandwidth connections
• Surveillance systems with multiple PoE cameras
• Network environments requiring advanced Layer 2+ management and security

Key specifications

• Switch Type: Full Managed Layer 2+
• Total Ports: 16 (12x GbE RJ45, 4x 10G SFP+)
• PoE+ Ports: 8 (802.3at), PoE Budget: 130W
• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.38 Mpps
• MAC Address Table: 16K entries
• Jumbo Frame Support: Up to 9 KB
• Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON
• VLAN: 802.1Q Tag-based, Port-based, Protocol-based
• QoS: 802.1p CoS, DSCP, Port-based
• Security: ACL, Port Security, DHCP Snooping, ARP Inspection, Storm Control
• Rackmount: 19-inch, 1U
• Power Supply: Internal AC 100-240V, 50/60Hz
• Fan: Yes, Smart Fan Control
• Operating Temperature: 0°C to 50°C

Recommendations

For optimal performance, use Category 6 or higher cabling for Gigabit connections and ensure adequate ventilation around the switch. The PoE budget of 130W is sufficient for up to 8 mid-power PoE+ devices; for higher power requirements, consider a PoE injector or a switch with a higher budget.
