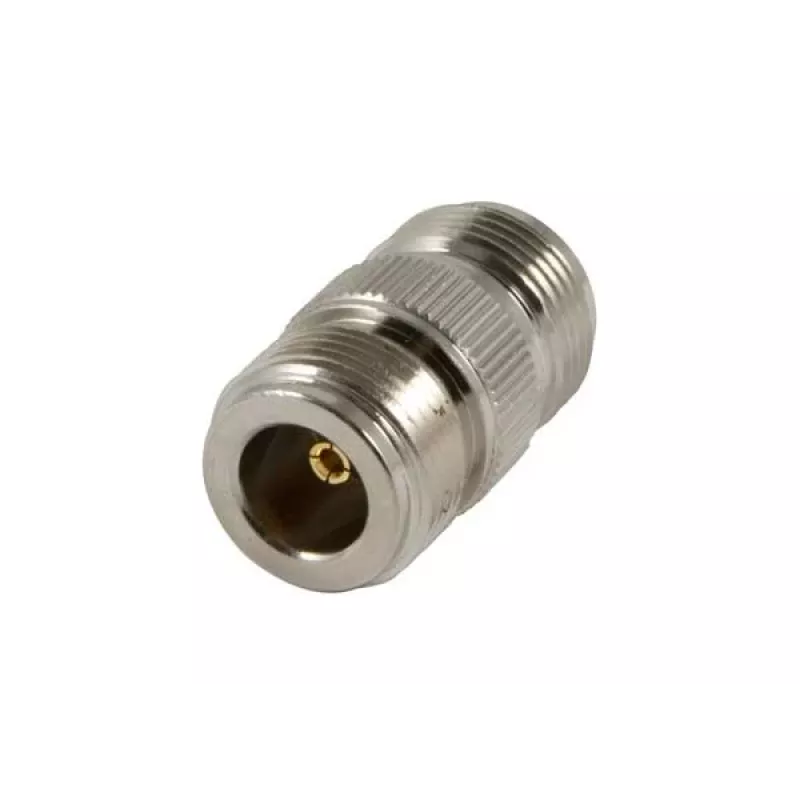

ALLNET ANT-ADP-NF-NF N konektor samica na N konektor samica koaxiálny adaptér, 50 Ohm, rovný

The ALLNET ANT-ADP-NF-NF is a high-quality coaxial adapter designed for reliable RF connections. It features N-Type female connectors on both ends, making it ideal for extending or connecting coaxial cables in antenna systems, wireless communication setups, and test equipment. With a 50 Ohm impedance and a frequency range up to 11 GHz, this adapter ensures minimal signal loss and excellent performance.

Advantages

This adapter offers robust construction with a brass body, nickel-plated for durability, and gold-plated center contacts for superior conductivity and corrosion resistance. The PTFE dielectric ensures stable performance across a wide temperature range. With a VSWR of ≤1.2:1 at 6 GHz and insertion loss of ≤0.1 dB, it maintains signal integrity in demanding applications.

Suitable for

• RF and wireless communication systems
• Antenna installations and testing
• Laboratory and measurement setups
• Extending or connecting N-Type cables

Key specifications

• Connector Type A: N-Type Female
• Connector Type B: N-Type Female
• Impedance: 50 Ohm
• Body Style: Straight
• Frequency Range: DC - 11 GHz
• VSWR: ≤ 1.2:1 (at 6 GHz)
• Insertion Loss: ≤ 0.1 dB (at 6 GHz)
• Material (Body): Brass, Nickel Plated
• Material (Center Contact): Brass, Gold Plated
• Dielectric Material: PTFE
• Insulation Resistance: ≥ 5000 MΩ
• Voltage Rating: 1000 V (RMS)
• Durability: 500 Mating Cycles
• Operating Temperature: -55°C to +155°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with high-quality N-Type cables and connectors. Ensure proper torque when mating to avoid damage. This adapter is suitable for both indoor and outdoor applications when properly sealed.
