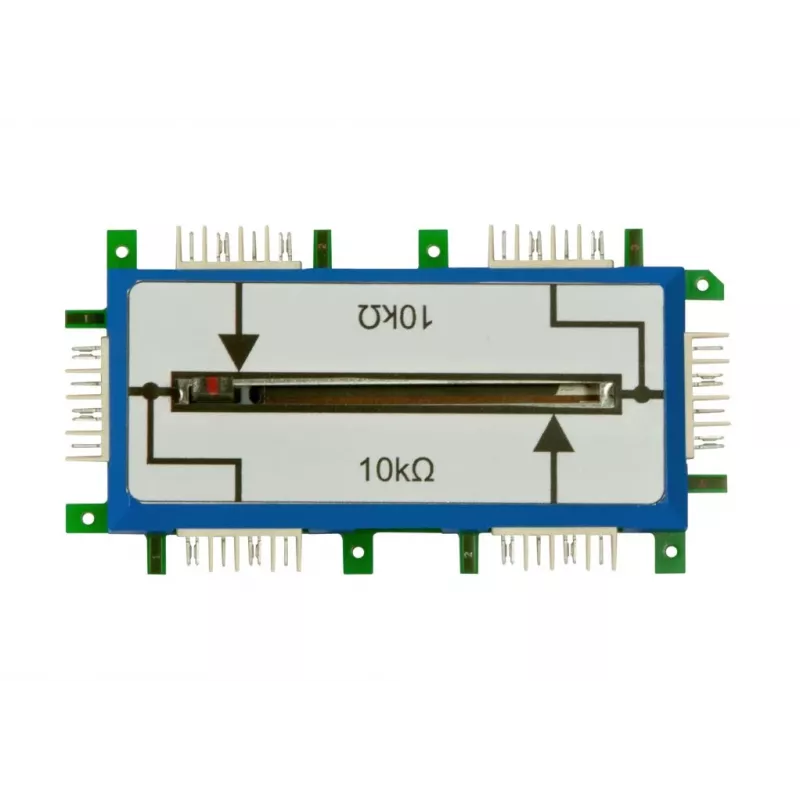

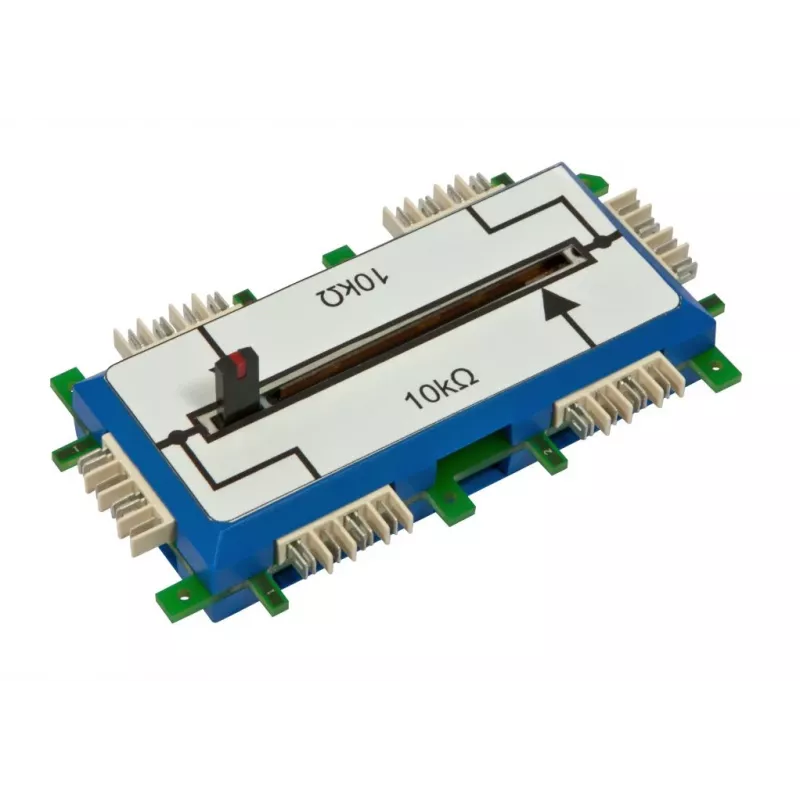

ALLNET BrickRknowledge posuvný potenciometer 10kOhm

The ALLNET BrickRknowledge Slide Potentiometer 10kOhm is a linear slide potentiometer module designed for analog input applications. It features a 10 kOhm resistance and a Grove connector interface, making it compatible with the ALLNET BrickRknowledge Baseboard, Arduino, and Raspberry Pi (via Grove adapter). Ideal for control applications such as volume, brightness, and motor speed adjustment.

Advantages

Easy integration with BrickRknowledge ecosystem; analog output for precise control; compact PCB module design; wide supply voltage range (3.3V-5V DC).

Suitable for

• Analog input projects requiring slide potentiometer control
• Volume, brightness, or motor speed control applications
• Educational and prototyping with Arduino or Raspberry Pi

Key specifications

• Product Type: Slide Potentiometer Module
• Resistance Value: 10 kOhm
• Potentiometer Taper: Linear
• Connection Interface: Grove Connector (4 pins)
• Output Signal: Analog Voltage
• Supply Voltage: 3.3V - 5V DC
• Mounting: PCB Module
• Operating Temperature: 0°C to 70°C

Recommendations

For best results, use with ALLNET BrickRknowledge Baseboard or compatible microcontroller with Grove interface. Ensure supply voltage within specified range.
