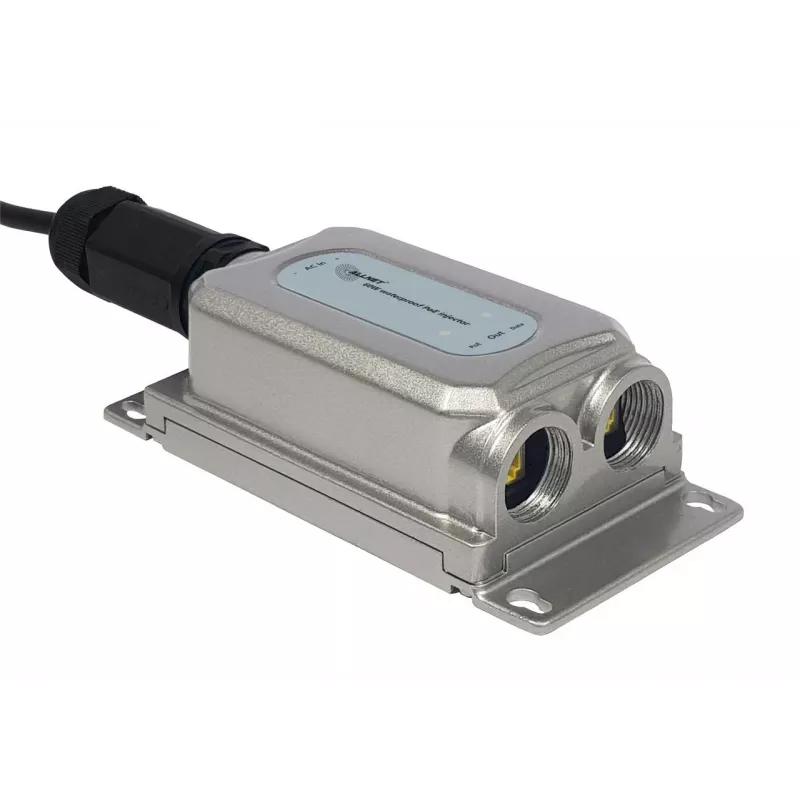

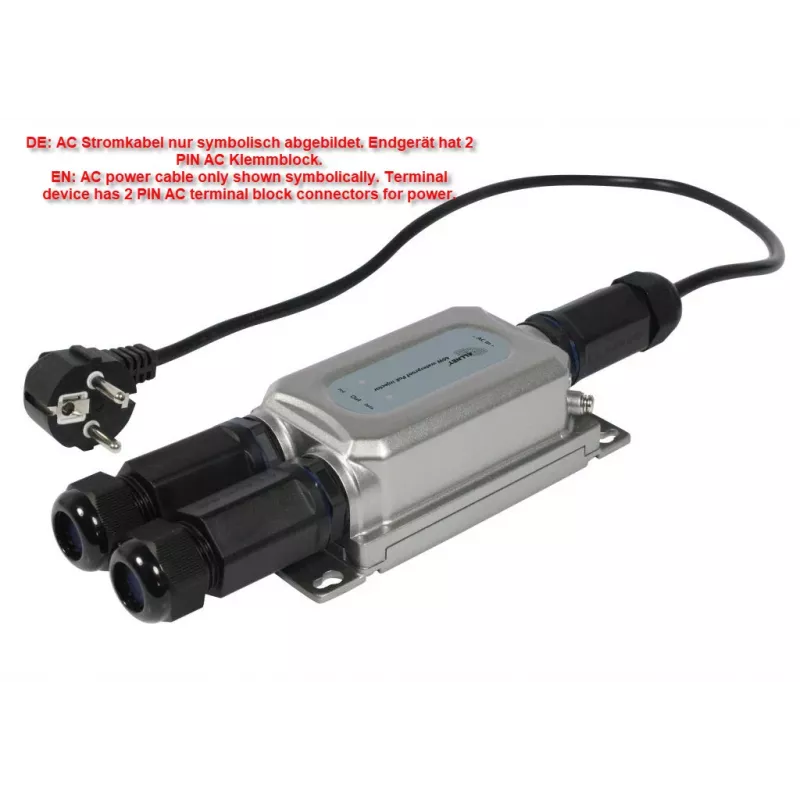

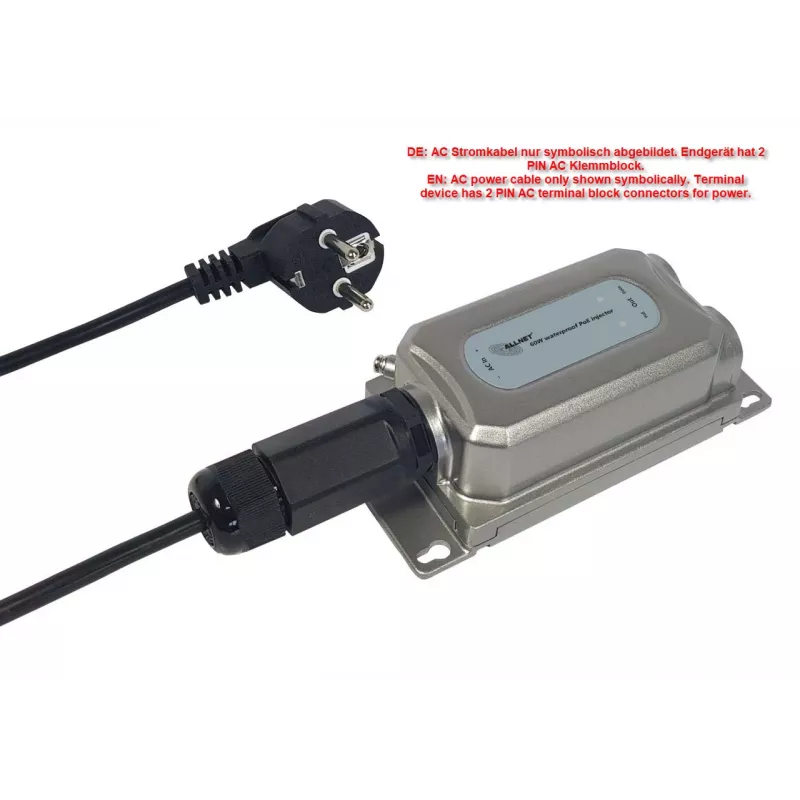

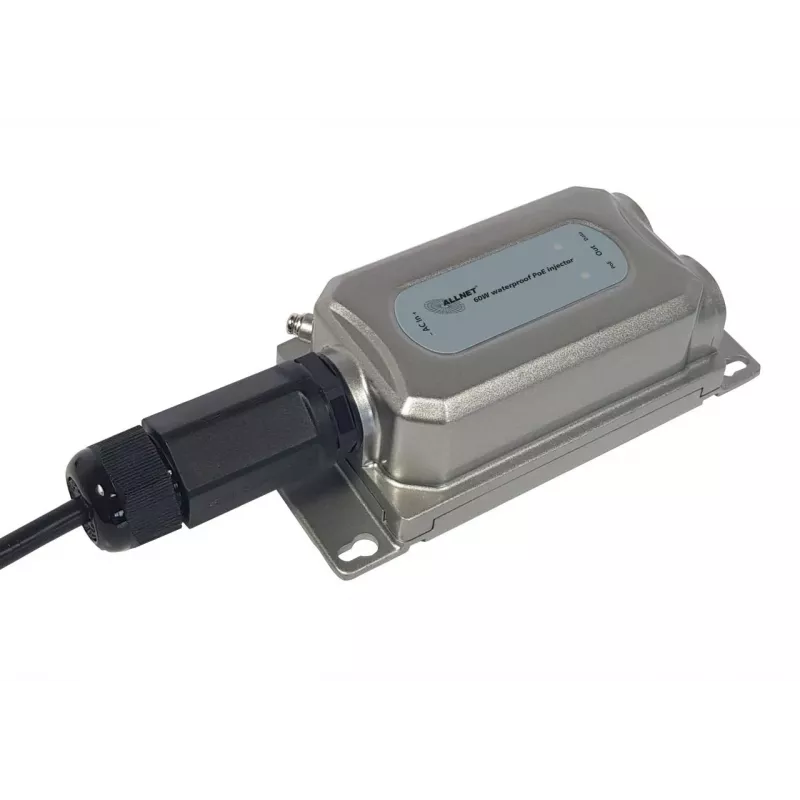

ALLNET Outdoor PoE injektor IP67 IEEE 802.3bt 60W kovové puzdro ALL-PI2013Ov2BT60

Power outdoor IP cameras, wireless access points, or point-to-point radios with this rugged PoE injector. The IP67-rated metal housing withstands rain, dust, and extreme temperatures from -40°C to 65°C, making it ideal for mounting on poles, walls, or rooftops. It delivers up to 60 W of power over all four pairs, supporting IEEE 802.3af, 802.3at, and 802.3bt devices at Gigabit speeds.

Key specifications

• PoE standard: IEEE 802.3bt (PoE++)
• Max PoE power output: 60 W
• Supported PoE standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Data transfer rate: 10/100/1000 Mbps (Gigabit Ethernet)
• Ethernet ports: 1x RJ45 (data in), 1x RJ45 (data + power out)
• Ingress protection: IP67
• Housing material: metal
• Input voltage: 100 - 240 V AC
• Output voltage: 54 V DC
• Operating temperature: -40°C to 65°C
• Mounting type: wall mountable
• LED indicators: power, PoE status
• Protection features: overload, short-circuit, over-voltage
• Power pin assignment: 4-pair (all 8 pins)
• Surge protection: yes
• Power input connector: IEC C14
• Compliance: CE, FCC

Why choose it

Its IP67 metal enclosure and wide operating temperature range ensure reliable power delivery in harsh outdoor environments. The 60 W output supports high-power devices like PTZ cameras and multi-radio access points, while Gigabit ports maintain full network throughput.

Ideal use cases

• Outdoor IP surveillance cameras
• Wireless access points on building exteriors
• Point-to-point wireless links
• Industrial sensors and controllers in exposed locations

Good to know

The injector uses a standard IEC C14 power inlet, so you can connect a country-specific power cord. It is wall-mountable and includes LED indicators for power and PoE status.
