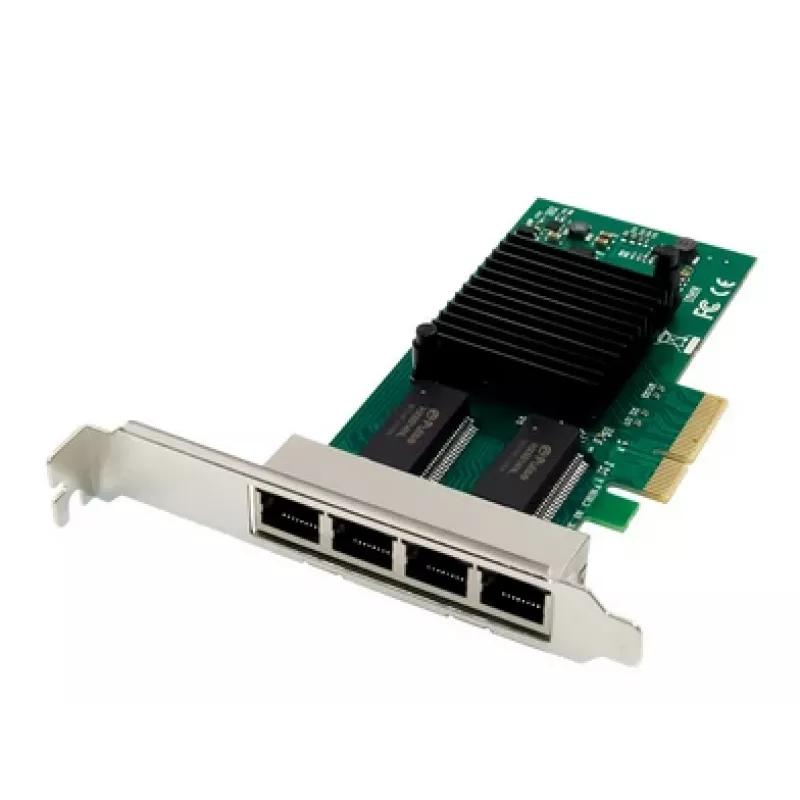

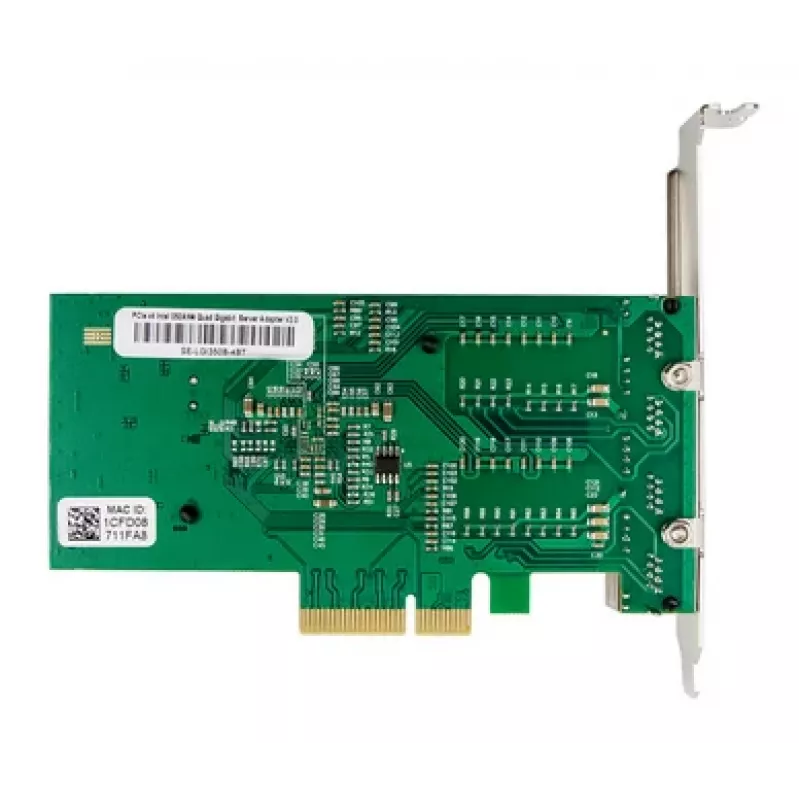

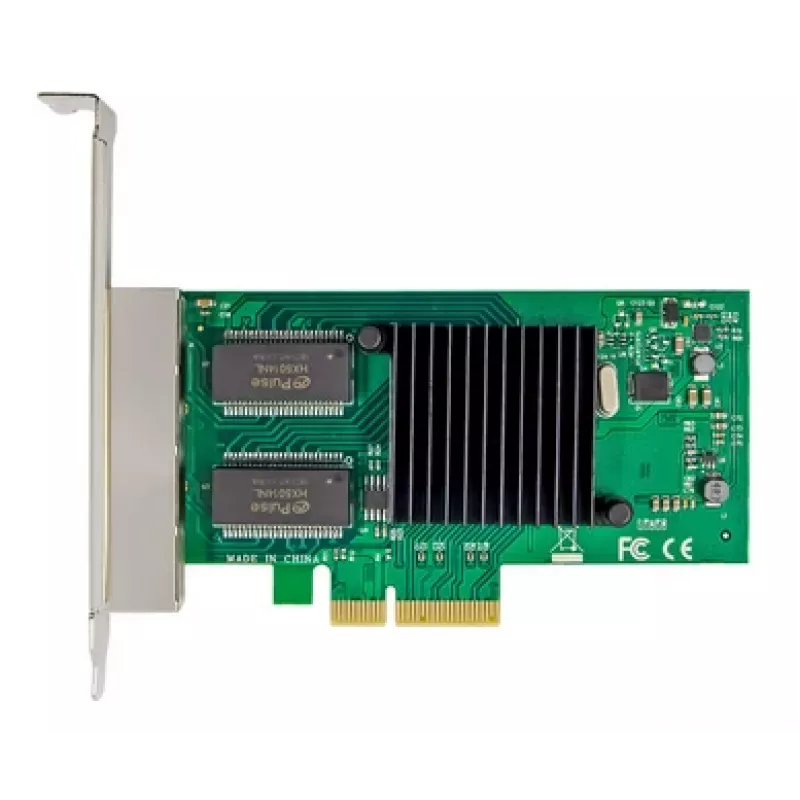

ALLNET PCIe 1G x4 Quad-Port serverový adaptér - medený RJ45 - Intel I350 (ALL0136v2-4-GB-TX/I350T4)

For server administrators and network engineers who need to add four independent Gigabit Ethernet ports to a rack server or workstation, the ALLNET ALL0136v2-4-GB-TX/I350T4 delivers a PCI Express 2.1 x4 quad-port copper adapter built on the Intel I350-T4 controller. It fits both full-height and low-profile slots and works with Windows Server, Linux, VMware ESX/ESXi, FreeBSD, and Novell environments.

Key specifications

• Controller chipset: Intel I350-T4
• Host interface: PCI Express 2.1 x4
• Number of ports: 4 x RJ45 copper
• Data transfer rate: 10/100/1000 Mbps
• Network standards: IEEE 802.3, 802.3u, 802.3ab
• Jumbo frame support: up to 9.5 KB
• VLAN support: IEEE 802.1Q
• PXE support: Yes
• Teaming/link aggregation: Yes
• Virtualization features: Intel VT-c, VMDq, SR-IOV
• Flow control: IEEE 802.3x
• LED indicators: Link/Activity per port
• Typical power consumption: 5.5 W
• Cable type: UTP/STP Cat 5e or higher

Why choose it

The Intel I350-T4 chipset provides hardware offloads and virtualization support, reducing CPU overhead and improving throughput in virtualized environments. Four independent Gigabit ports allow flexible network segmentation, link aggregation, or failover configurations without occupying multiple PCIe slots.

Ideal use cases

• Virtualized server hosts requiring multiple dedicated NICs for VMs
• Network appliances and firewalls needing multiple copper ports
• Storage servers using iSCSI or NFS over dedicated links
• High-availability clusters with redundant network paths

Good to know

The adapter includes both full-height and low-profile brackets, making it suitable for 2U and 4U servers as well as compact workstations. It supports PXE boot and Intel's advanced virtualization features for efficient network I/O in demanding environments.
