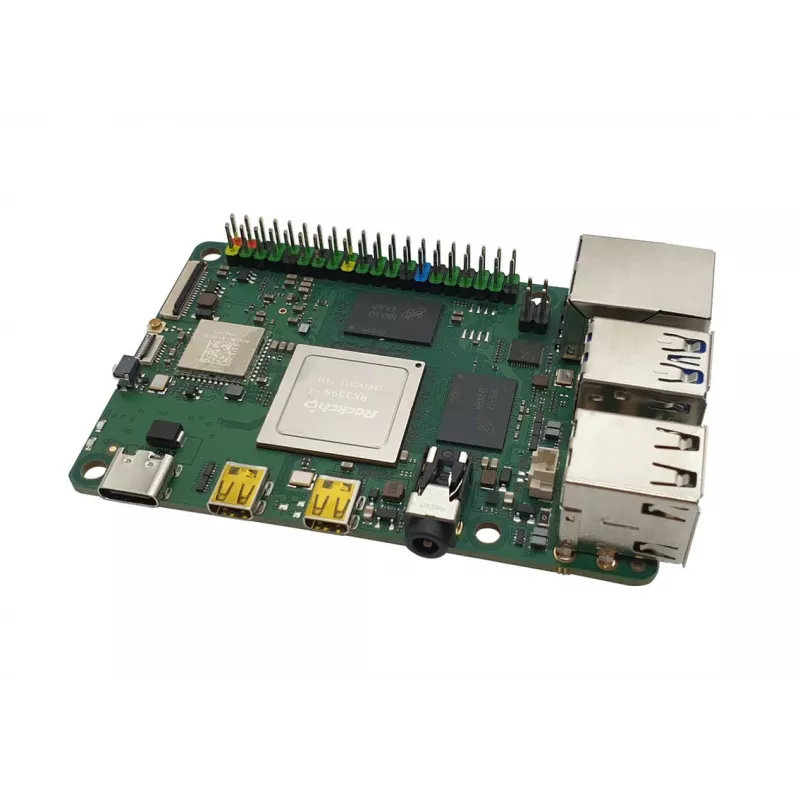

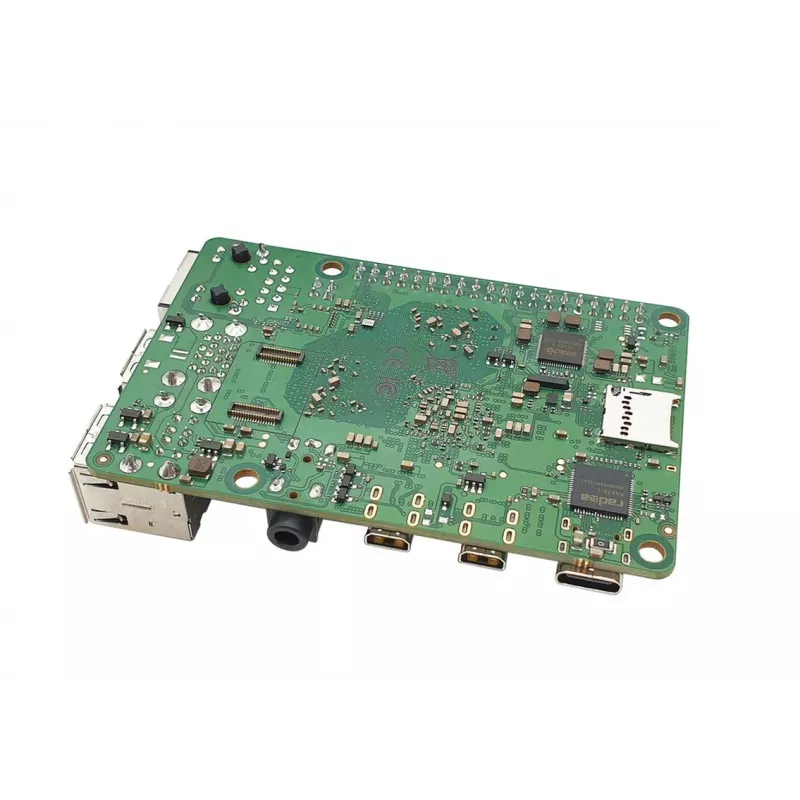

ALLNET Rock 4 C+ 4GB RK3399T Dual-Band WLAN Bluetooth 5.0 MicroHDMI Rock4C+4GBW

The Rock 4 C+ sets itself apart with a hexa-core Rockchip RK3399T processor and dual-band Wi-Fi, offering a balance of performance and connectivity for embedded projects. It includes 4GB LPDDR4 RAM, Gigabit Ethernet, and a 40-pin GPIO header for expansion.

Highlights

• Hexa-core Rockchip RK3399T (Dual Cortex-A72 @ 1.5GHz + Quad Cortex-A53 @ 1.0GHz)
• 4GB LPDDR4 RAM
• Dual-band 2.4/5GHz 802.11ac Wi-Fi and Bluetooth 5.0
• Micro HDMI 2.0 up to 4K@60Hz
• Gigabit Ethernet, USB 3.0 and USB 2.0 ports
• 40-pin GPIO header with I2C, SPI, UART, PWM

In daily use

The board runs Debian/Ubuntu Linux or Android, suitable for IoT gateways, digital signage, and edge computing. Storage options include eMMC module socket and MicroSD card slot. Power is supplied via USB-C (5V DC).

Full specifications

• Processor: Rockchip RK3399T, hexa-core (Dual-core Cortex-A72 @ 1.5GHz + Quad-core Cortex-A53 @ 1.0GHz)
• GPU: Mali-T860MP4
• RAM: 4GB LPDDR4
• Wireless: Dual-band 2.4/5GHz 802.11ac Wi-Fi, Bluetooth 5.0
• Video Output: 1x Micro HDMI 2.0 (up to 4K@60Hz)
• Ethernet: 1x Gigabit Ethernet
• USB: 1x USB 3.0 Type-A, 1x USB 2.0 Type-A, 1x USB 3.0 Type-C (OTG/Power)
• Storage: eMMC module socket, MicroSD card slot
• GPIO: 40-pin header (GPIO, I2C, SPI, UART, PWM, 5V, 3.3V)
• Power: USB-C (5V DC)
• Display Interface: 1x MIPI DSI
• Camera Interface: 1x MIPI CSI
• Audio: 3.5mm audio jack
• OS Support: Debian/Ubuntu Linux, Android

Final note

A versatile SBC with strong connectivity and expansion options for demanding applications.
