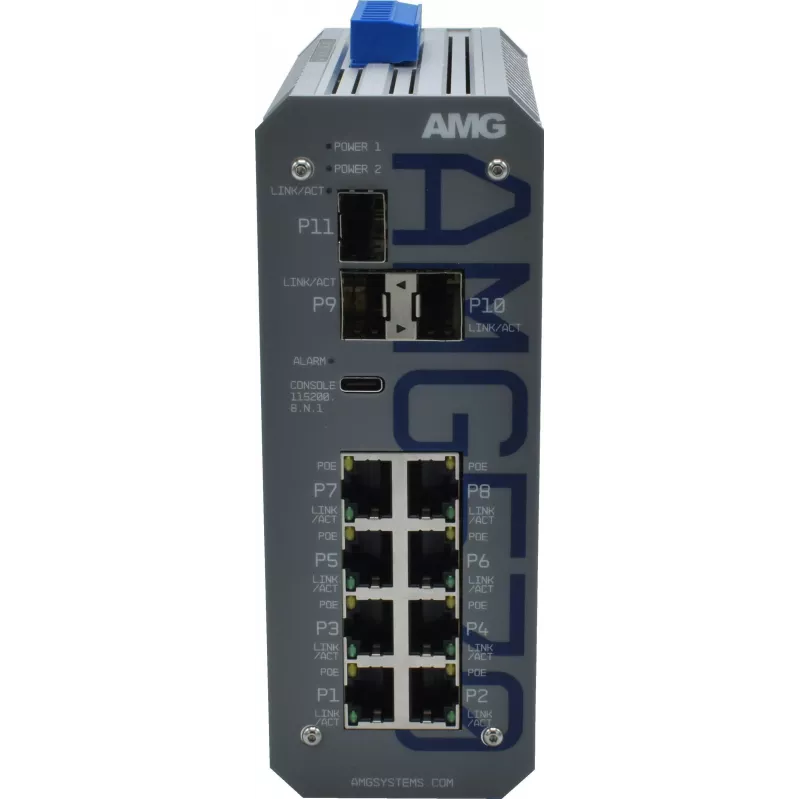

AMG Industrial Managed Switch, 8x 10/100 Mbps, DIN lišta, redundantné napájanie

In the heart of a bustling factory floor, where machines never sleep and data must flow without interruption, the AMG AMG570-2GBT-4GAT-2G-3S-P300 stands as a silent sentinel. This industrial managed switch, with its eight Fast Ethernet ports, is engineered to keep your automation systems communicating flawlessly, even in the harshest of environments. Whether you're monitoring power distribution, managing traffic signals, or controlling maritime navigation systems, this switch delivers the reliability and performance your operations demand.

Key specifications

• 8 x 10/100Base-TX RJ-45 Ethernet ports
• Layer 2 managed switch with comprehensive management features
• Switching capacity of 1.6 Gbit/s and forwarding rate of 1.2 Mpps
• MAC address table with 8K entries
• VLAN support: IEEE 802.1Q (up to 4K VLANs)
• Quality of Service (QoS) with DSCP and 802.1p prioritization
• Redundancy protocols: RSTP, STP, FRNT, and Ring Coupling
• Redundant power input: 10-60 VDC
• Max power consumption: 5.5 W
• Operating temperature range: -40 to +70 °C (-40 to +158 °F)
• IP40 protection rating
• DIN-rail mountable
• Security features: port-based MAC, 802.1X, SSH, SSL
• Industrial certifications: IEC 61850-3, EN 50121-4, NEMA TS 2, DNV GL, UL 60950-1
• Configuration interfaces: Web GUI, CLI, SNMP
• Jumbo frame support up to 10 KB

Why choose it

This switch is not just another piece of networking hardware; it's a fortress of connectivity. With its wide operating temperature range, redundant power inputs, and rugged IP40 housing, it thrives where commercial switches fail. The advanced security protocols ensure your network remains protected from unauthorized access, while the redundant ring protocols guarantee zero downtime in critical applications. When every second counts, this switch keeps your data moving.

Ideal use cases

• Factory automation and industrial control systems
• Power utility substations and energy management
• Transportation infrastructure (traffic lights, railway signaling)
• Marine and offshore applications (DNV GL certified)
• Smart grid and renewable energy installations

Good to know

The AMG570-2GBT-4GAT-2G-3S-P300 is part of AMG's commitment to industrial-grade networking. Its redundant power supply ensures continuous operation even if one power source fails, and the compact DIN-rail design makes installation in control cabinets a breeze. With a mean time between failures (MTBF) that exceeds industry standards, this switch is built to last for years, minimizing maintenance costs and maximizing uptime.
