Anténa DeLOCK 12610

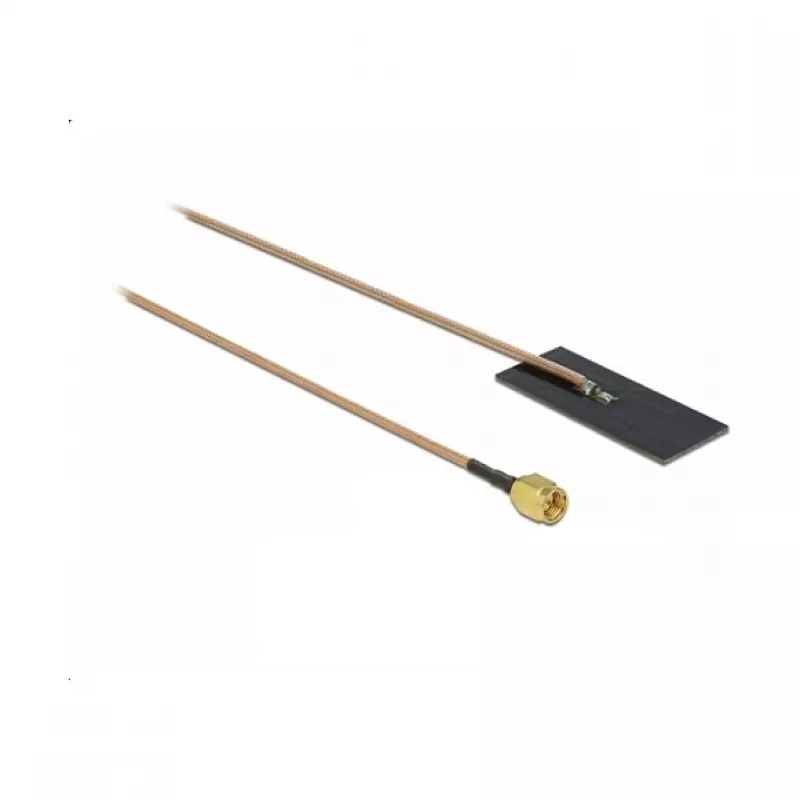

The DeLOCK 12610 network antenna is designed for indoor use and supports dual-band WLAN operation at 2.4 GHz and 5 GHz. It features a maximum gain of 1.2 dBi, a 50 Ω impedance and an SMA connector, and comes with a 1 m RG-178 cable. Its compact dimensions (14.7 mm × 40 mm) and black colour make it suitable for constrained installation spaces.

Advantages

The antenna provides dual-band coverage for 2.4–2.5 GHz and 5.15–5.875 GHz, is fitted with a standard SMA connector for broad device compatibility, and includes a 1 m RG-178 cable for flexible placement. Its low-profile size is suitable for installations where space is limited.

Suitable for

• Indoor Wi‑Fi signal extension and reception
• Routers, access points and client devices with SMA antenna ports
• Environments requiring a compact external antenna

Key specifications

• Antenna gain (max): 1.2 dBi
• Frequency bands: 2.4–2.5 GHz and 5.15–5.875 GHz
• Impedance: 50 Ω
• Connector type: SMA
• Cable: 1 m RG-178
• Colour: Black
• Dimensions (W × D): 14.7 mm × 40 mm

How to use

Connect the SMA connector of the DeLOCK 12610 to the compatible antenna port on your router, access point or client device. Position the antenna indoors where it has a clear line to the coverage area; adjust orientation for best reception. Route the 1 m RG-178 cable to avoid sharp bends and secure the antenna in the chosen location using suitable mounts or adhesive if required (mounting accessories not included).

Recommendations

For optimal performance, place the antenna away from large metal objects and other sources of interference. Test different positions and orientations to find the best signal for your specific device and environment.
